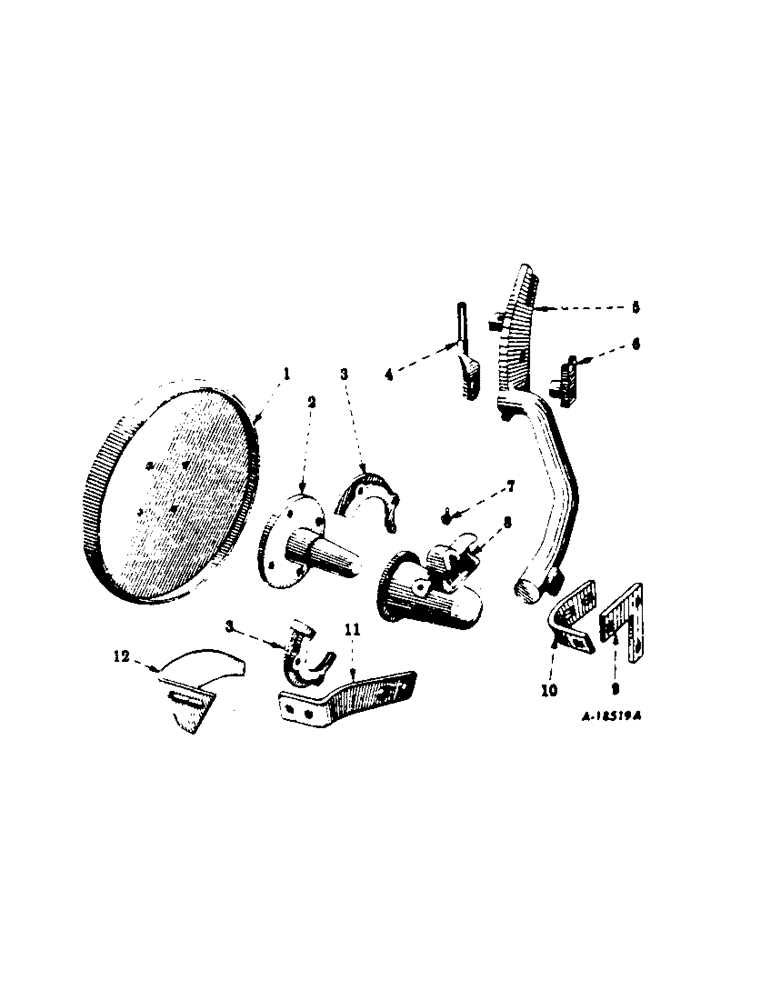

Запчасти Case IH A-295 (S-07) - REAR FURROW WHEEL ATTACHMENT

1

PO23448

WHEEL

1шт.

7/16 x 1-7/8 NO. 3 PLOW BOLT

4шт.

7/16 LOCK WASHER

4шт.

2

PO2693

HUB

1шт.

3

PO2692

WASHER, retaining

2шт.

4

PO27277X

BOLT W/NUT, adjusting

1шт.

5/8 NUT

1шт.

5

513604R91

AXLE ASSY

1шт.

5/8 x 3 MACH BOLT

2шт.

5/8 x 3-1/2 MACH BOLT

2шт.

5/8 LOCK WASHER

4шт.

21/32 x 1-1/2 x 11 GA WASHER

4шт.

6

PO3068

SPACER, adjusting bolt

1шт.

7

1094614

FITTING, 1/8 str lub

1шт.

8

PO2694A

BEARING

1шт.

9

(Not used this application)

1шт.

10

(Not used this application)

1шт.

11

PO23454

BRACKET, scraper

1шт.

1/2 x 3-1/2 CRG BOLT

2шт.

1/2 LOCK WASHER

2шт.

12

PO23453

SCRAPER

1шт.

3/8 x 1 CRG BOLT

4шт.

13/32 x 1 x 16 GA WASHER

4шт.
