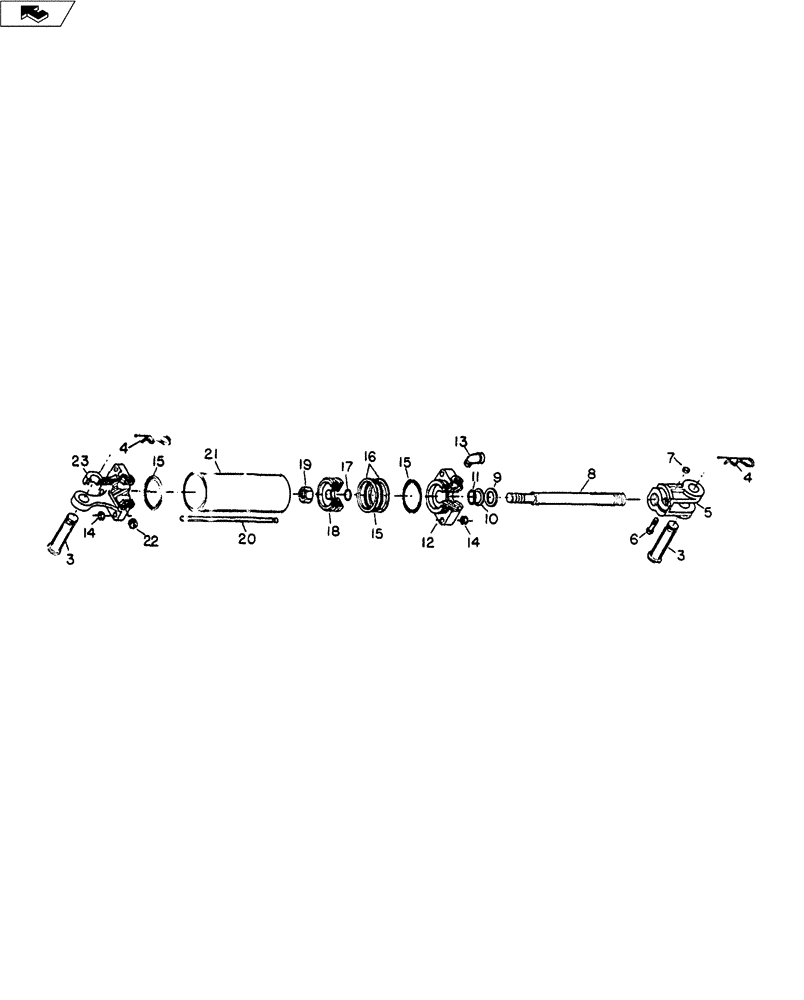

Запчасти Case IH 9000 SERIES (35.100.03) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25030081

HYDRAULIC CYLINDER

3" x 8" Comp (Not Shown)

1шт.

2

25803007

KIT

Seal for 3" Dia 1-1/4" Rod (Not Shown)

1шт.

3

14816261

CLEVIS

1" x 3-1/4" EL Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Hair Pin

2шт.

5

25803001

SHAFT

Cylinder Rod Clevis Only

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

8

25802503

1-1/4" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25803002

Housing Only

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" St. Elbow 90°

2шт.

14

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

16

NSS

NOT SOLD SEPARAT

Back-Up Seal (Not Sold Separately)

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

18

25803003

SHAFT

Piston

1шт.

19

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

20

25803004

THREADED TIE-ROD

4шт.

21

25803005

BARREL

Cylinder 3" Dia.

1шт.

22

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

23

25803006

YOKE

Cylinder Butt End Only

1шт.
