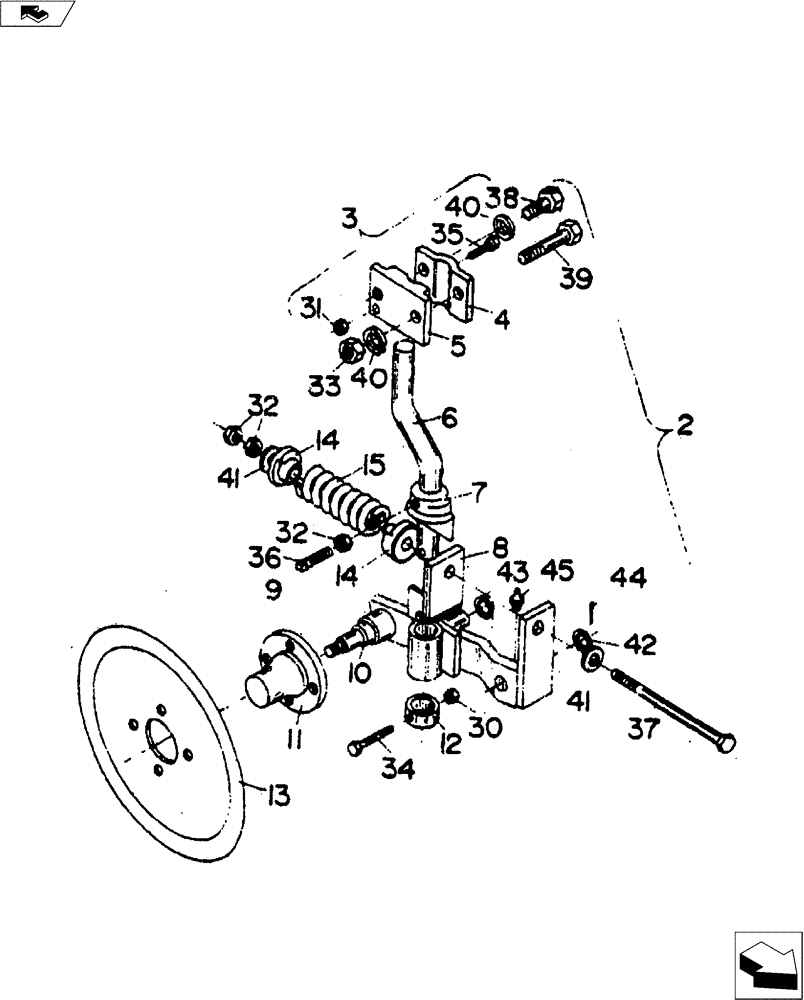

Запчасти Case IH 9000 SERIES (75.200.08) - MODEL 9000 SPECIAL SPRING LOADED COLTER (75) - SOIL PREPARATION

1

49972001

Model 9000 Comp. (Not Shown)

1шт.

2

49972000

I/Coulter Blade

1шт.

3

49526000

Includes Ref. 4, 5 & Hardware

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

6

49571000

17-1/2"Lg., Std

1шт.

6

49572000

19-1/2"Lg., Opt

1шт.

7

20092011

STOP

Coulter Pivot

1шт.

8

49973000

1шт.

9

49971000

PIN

Support Arm

1шт.

10

49974200

I/Hub

1шт.

11

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

12

49529000

PIPE

Coulter Bottom Collar

1шт.

13

443638A1

PLOW DISC

24" Coulter Blade (Std)

1шт.

13

33502040

20", Opt.

1шт.

13

33502041

20", Std.

1шт.

14

20090050

HOLDER

Spring Casting

2шт.

15

24156201

COMPRESSION SPRING

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

3шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

34

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Hex. Bolt

1шт.

35

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" NC Hex. Bolt G5

1шт.

36

16810064

SET SCREW

5/8" x 1-1/2" Sq. Hd

1шт.

37

NSS

NOT SOLD SEPARAT

5/8" x 12" NC Hex. Bolt

1шт.

38

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" x 5" NC Hex. Bolt Gd 5

1шт.

40

492-11075

LOCK WASHER,3/4"

2шт.

41

17411012

WASHER

11/16" x 1-3/4" OD 0.240 Th.

2шт.

42

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machinery, 14 Ga.

1шт.

43

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1 -1/4" Machinery, 10 Ga.

1шт.

44

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

45

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
