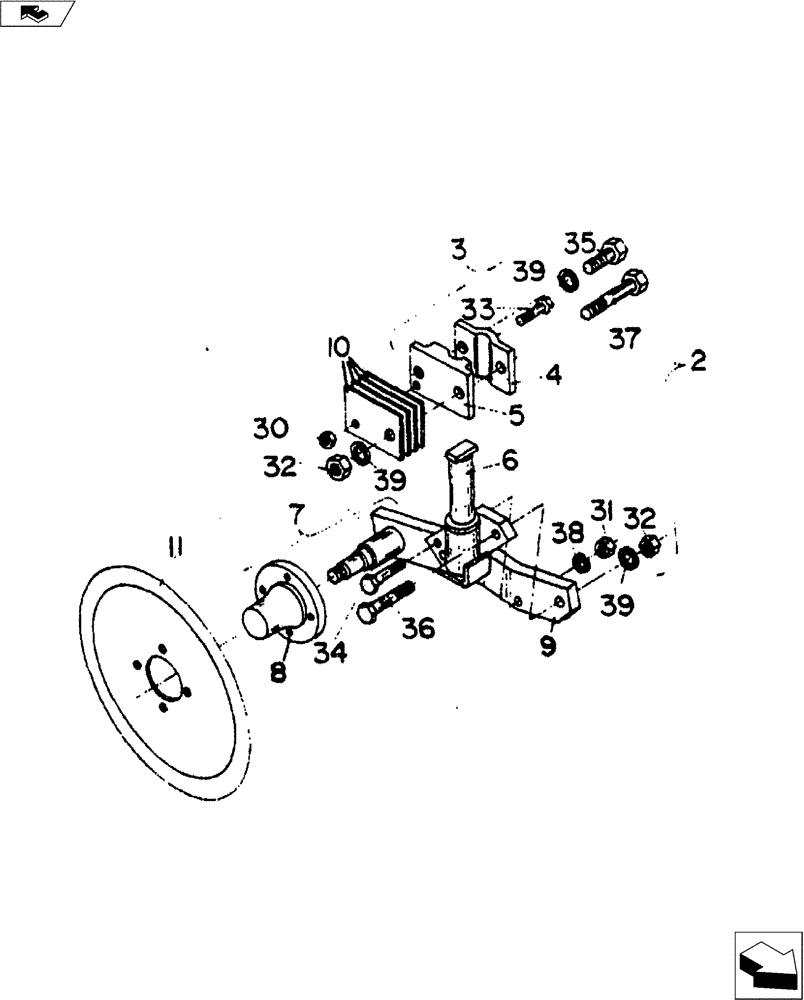

Запчасти Case IH 9000 SERIES (75.200.03) - FRONT RIGID COLTER ASSEMBLY (75) - SOIL PREPARATION

1

49300071

Complete (Not Shown)

1шт.

2

49300070

I/Blade

1шт.

3

49327000

Incudes Ref. 4, 5 & Hardware

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

6

49345000

1шт.

7

49346000

Includes Ref. 8 & 9

1шт.

8

28163300

HUB ASSY.

Q-633 & Splndle

1шт.

9

49354000

I/Hub

1шт.

10

49314000

4шт.

11

443638A1

PLOW DISC

24" Coulter Blade, Std.

1шт.

11

33502040

20", Opt

1шт.

11

33502041

20", Opt

1шт.

30

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

33

16007144

7/16" x 3-1/2" NC, Gd 5

1шт.

34

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

NC

1шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

1шт.

36

16012144

3/4" x 3-1/2" NC, Gd 5

1шт.

37

16012244

3/4" x 6" NC, Gd 5

1шт.

38

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

3шт.
