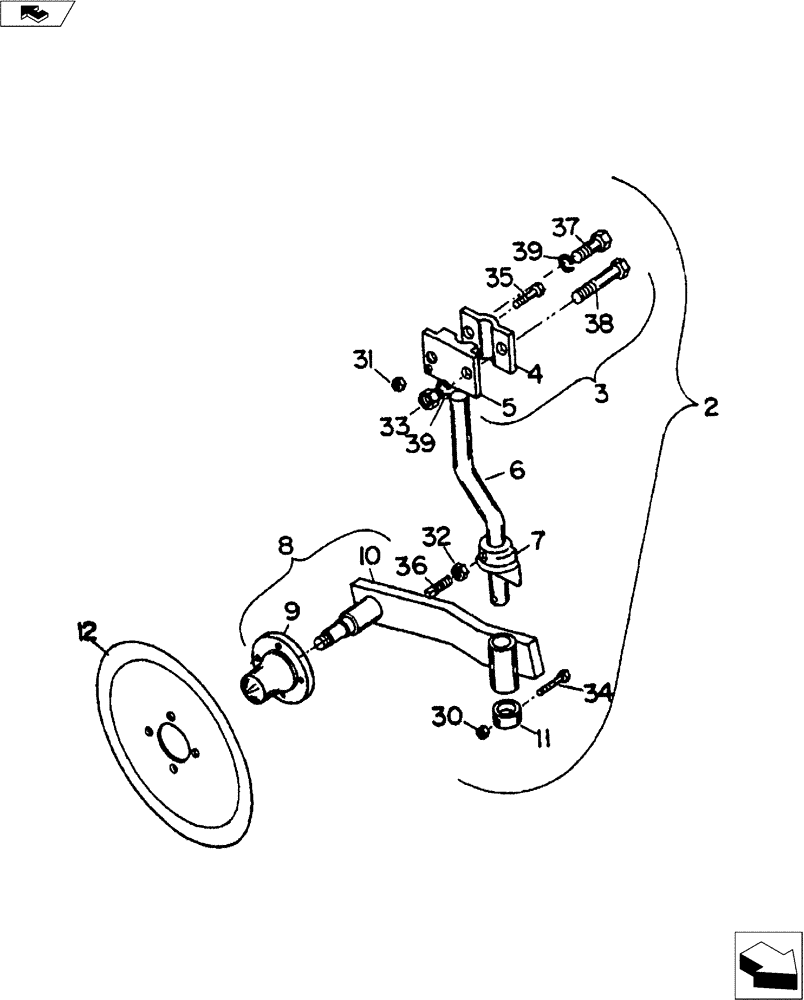

Запчасти Case IH 9000 SERIES (75.200.02) - RIGID INNER COLTER ASSEMBLY (75) - SOIL PREPARATION

1

49109001

Comp.

1шт.

2

49109000

I/Blade

1шт.

3

49526000

Includes Ref. 4, 5, & Hardware

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp

2шт.

6

49571000

17-1/2" Lg., Std.

1шт.

6

49572000

19-1/2" Lg., Opt.

1шт.

7

49348000

COULTER

Pivot Stop

1шт.

8

49573000

MOUNTING PARTS

Inner Coulter, Includes Ref. 9 & 10

1шт.

9

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

10

49575000

MOUNTING PARTS

Inner Coulter I/Hub

1шт.

11

49529000

PIPE

Coulter Bottom Collar

1шт.

12

443638A1

PLOW DISC

24" Coulter Blade, Std.

1шт.

12

33502040

20", Std.

1шт.

12

33502041

20", Opt.

1шт.

30

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

1шт.

33

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

34

NSS

NOT SOLD SEPARAT

3/8" x 3" NC Hex. Bolt

1шт.

35

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" NC Hex. Bolt, Gd. 5

1шт.

36

16810064

SET SCREW

5/8" x 1-1/2" Sq. Head Cup Point Gd. 5

1шт.

37

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

1шт.

38

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Bolt, Gd 5

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.
