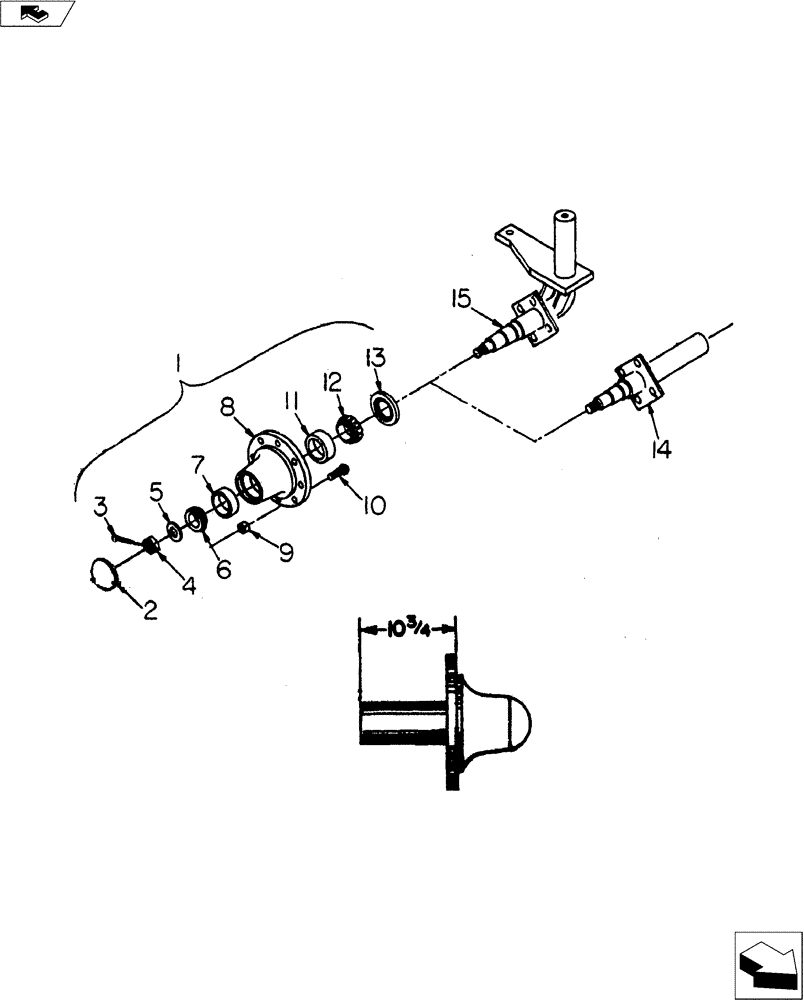

Запчасти Case IH 9000 SERIES (44.100.04) - Q-813 HUB AND SPINDLE (44) - WHEELS

1

28681300

HUB ASSY.

Q813 8-Bolt

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8 NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8 SAE Washer

1шт.

6

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1.38 Bore Timken Ref. 25877

1шт.

7

165964R1

BEARING CUP

2.875 OD Timken Ref. 25821

1шт.

8

28781300

HUB ASSY.

Q813 & Bolt Only

1шт.

9

14080903

SPECIAL NUT

9/16" - 18 Wheel

1шт.

10

16409093

STUD

9/16" x 2-1/8" Drive in Lug Bolt

1шт.

11

130503H

BEARING CUP

3.27 OD Timken Ref. 25520

1шт.

12

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

1.80 Bore Timken Ref. 25590

1шт.

13

491715R91

OIL SEAL

2.00 ID x 3.63 OD CR Ref. 521430

1шт.

14

28881311

SPINDLE

Q813 - 2 - 1/4" Dia. w/Brake Flange

1шт.

15

03405000

1шт.

15

03406000

1шт.

16

28581311

Spindle, Straight (Not Shown)

1шт.

17

08272000

Spindle, Right (Not Shown)

1шт.

17

08273000

Spindle, Left (Not Shown)

1шт.
