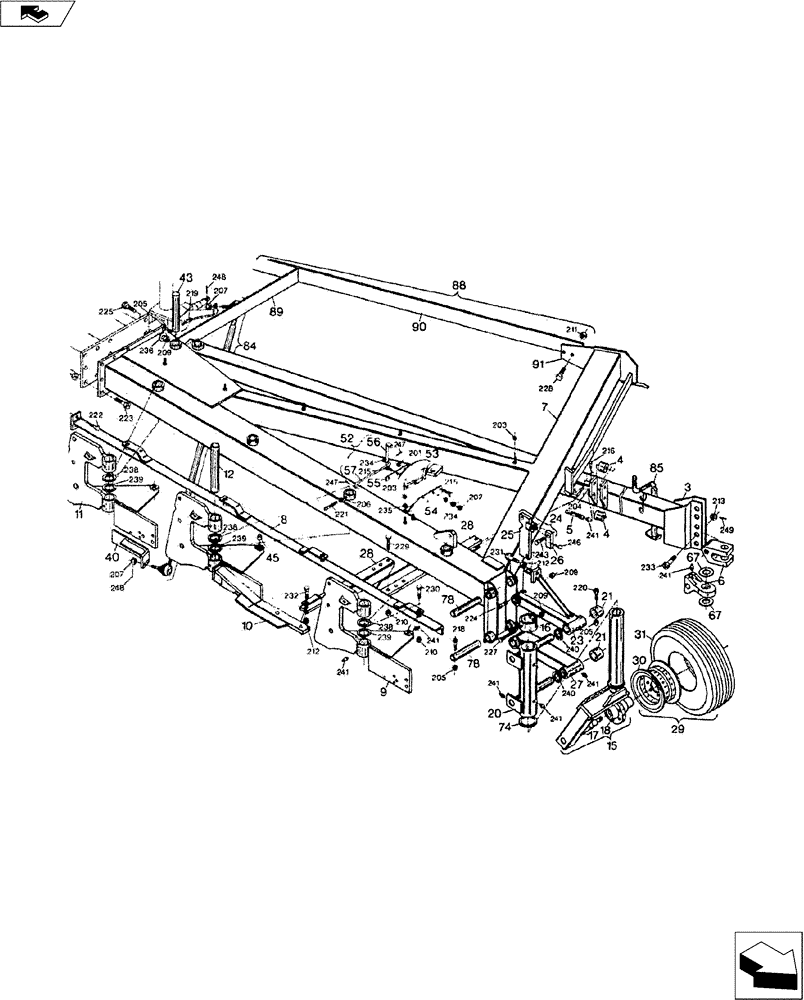

Запчасти Case IH 9000 SERIES (39.100.01[01]) - MAIN FRAME ASSEMBLY (39) - FRAMES AND BALLASTING

1

49990960

900916R 9-Bottom Plow Comp (Not Shown)

1шт.

1

49990961

900916S 9-Bottom Plow Comp (Not Shown)

1шт.

1

49991060

901016R 10-Bottom Plow Comp (Not Shown)

1шт.

1

49991061

901016S 10-Bottom Plow Comp (Not Shown)

1шт.

1

49991160

901116R 11-Bottom Plow Comp (Not Shown)

1шт.

1

49991161

901116S 11-Bottom Plow Comp (Not Shown)

1шт.

1

49991260

901216R 12-Bottom Plow Comp (Not Shown)

1шт.

1

49991261

901216S 12-Bottom Plow Comp (Not Shown)

1шт.

1

49991360

901316R 13-Bottom Plow Comp (Not Shown)

1шт.

1

49991361

901316S 13-Bottom Plow Comp (Not Shown)

1шт.

1

49991460

901416R 14-Bottom Plow Comp (Not Shown)

1шт.

1

49991461

901416S 14-Bottom Plow Comp (Not Shown)

1шт.

2

49900170

Includes Ref. 3 - 6 & Hardware(Not Shown)

1шт.

3

49984000

1шт.

4

49923000

2шт.

5

49924000

2шт.

6

20092071

ADJUSTABLE CLEVIS

Single, Std.

1шт.

6

20092051

CLEVIS

Double, Opt.

1шт.

7

49901000

1шт.

8

49906000

1шт.

9

49926000

Spring Trip

1шт.

9

49941000

Auto Reset

1шт.

10

49914000

Spring Trip

1шт.

10

49942000

Auto Reset

1шт.

11

49302000

Spring Trip

5шт.

11

49417000

Auto Reset

5шт.

12

49535000

9шт.

13

49990010

Inlcudes Ref. 14, 19, 22, & 27 (Not Shown)

1шт.

14

49990011

Inlcudes Ref. 15, 16, & Hdwe (Not Shown)

1шт.

15

49749000

1шт.

16

49707000

3шт.

17

49749100

I/Hub

1шт.

18

28182100

4WD AXLE ASSY

Q-821 Hub

3шт.

19

49990012

Inlcudes Ref. 20, 21, & Hardware (Not Shown)

1шт.

20

49878000

2-1/4"

1шт.

21

49879000

2шт.

22

49990013

Includes Ref 23, 24, & Hardware (Not Shown)

1шт.

23

49880000

1шт.

24

49920000

Includes Ref. 25, 26, & Hardware

1шт.

25

49920000

1шт.

26

49931000

1шт.

27

49877000

1шт.

28

49912000

9 & 10 Bottom

2шт.

28

49871000

11 & 14 Bottom

2шт.

29

10110153

10 x 15 8-Bolt

1шт.

30

10110153

10 x 15 8-Bolt

1шт.

31

NSS

NOT SOLD SEPARAT

12.5 x 15 10-Ply Tire

1шт.

32

499660000

Spring Trip

1шт.

32

49943000

Auto Reset

1шт.

33

49988000

1-Bottom

1шт.

33

49946000

2-Bottom

1шт.

34

49950000

1шт.

35

49960000

1шт.

36

49959000

1шт.

37

49969000

1шт.

38

49947000

1шт.

39

49989000

1шт.

40

49951000

1шт.

41

49948100

1шт.

42

49955000

1шт.

43

14893288

1шт.

44

49985000

1шт.

45

44008831

BUSHING

Bronze 7/8" ID x 1-1/2" Lg.

2шт.

46

49970000

Includes Ref. 45

1шт.

47

49971000

PIN

Center wheel Connection

1шт.

48

14893492

2шт.

49

10111166

LAND WHEEL

11 x 16 8-Bolt

2шт.

50

10111166

LAND WHEEL

11 x 16 8-Bolt

2шт.

51

NSS

NOT SOLD SEPARAT

13.5 x 16.1 8-Ply Knobby Tire

2шт.

52

49500050

Includes Ref. 53-57 & Hardware

1шт.

53

30010000

1шт.

54

49537000

1шт.

55

49541000

1шт.

56

49533000

1шт.

57

49534000

1шт.

58

49515000

WHEEL,Assy, Gauge

Gauge Spindle Arm

1шт.

59

49568000

I/Hub

1шт.

60

28170900

HUB ASSY.

Q-709

1шт.

61

49975000

1шт.

62

10108154

WHEEL

8 x 15 Tire Assy.

1шт.

63

10110174

WHEEL

8 x 15 6-Bolt

1шт.

64

NSS

NOT SOLD SEPARAT

9.5 x 15 6 -Ply Tire

1шт.

65

49506000

1шт.

66

49508000

1шт.

67

09524000

WASHER

Single Clevis Spacer

2шт.

68

49962000

Spring Trip

1шт.

68

49944000

Auto Reset

1шт.

69

49962000

1шт.

70

49308000

2шт.

71

49903000

1шт.

72

49903100

I/Hub

1шт.

73

28180300

HUB ASSY.

Q-803

1шт.

74

44040000

2шт.

75

49964000

1шт.

76

49522000

1шт.

77

49963000

1шт.

78

49304000

4шт.

79

10110154

WHEEL

10 x 15 6-Bolt

1шт.

80

10110154

WHEEL

10 x 15 6-Bolt

1шт.

81

NSS

NOT SOLD SEPARAT

12.5 x 15 6-Ply Tire

1шт.

82

49109001

8шт.

82

49300071

1шт.

82

49324001

6шт.

82

49320001

1шт.

82

49972001

2шт.

83

49300190

9шт.

83

49400190

9шт.

84

49584000

62 - 1/2" Tie

1шт.

85

32252000

JACK ASSY.

Swivel

1шт.

86

49899000

1шт.

87

49967000

1-Bottom

1шт.

87

49968000

2-Bottom

1шт.

87

49876000

3-Bottom

1шт.

88

49874000

7-Bottom, Includes Ref 91 - 93

1шт.

88

49875000

8-Bottom, Includes Ref 91 - 93

1шт.

89

49874200

7-Bottom

1шт.

89

49875200

8-Bottom

1шт.

90

49874100

7-Bottom

1шт.

90

49875100

8-Bottom

1шт.

91

49874300

Truss Bracket

1шт.

201

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Nut ZP

2шт.

202

NSS

NOT SOLD SEPARAT

1/4" NC Lock Nut ZP

4шт.

203

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

11шт.

204

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut ZP

2шт.

205

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

12шт.

206

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

10шт.

207

425-1310

SLOTTED NUT,5/8"-18, G5

NF

2шт.

208

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

25шт.

209

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

6шт.

210

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

11шт.

211

NSS

NOT SOLD SEPARAT

7/8" NC Lock Nut

4шт.

212

NSS

NOT SOLD SEPARAT

1" NC Hex. Nut

3шт.

213

25-1220

SLOTTED NUT,1 1/4"-12, G5

NC

1шт.

214

NSS

NOT SOLD SEPARAT

1/4" x 3-1/2" NC Hex. Bolt

2шт.

215

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Bolt

2шт.

216

NSS

NOT SOLD SEPARAT

5/16" x 2" NC Hex. Bolt, Gd 5

2шт.

217

16007144

7/16" x 3-1/2", Gd 5 (Not Shown)

2шт.

218

16008134

BOLT

1/2" x 3-1/4" NC Hex., Gd 5

6шт.

219

16008144

BOLT

1/2" x 3-1/2" NC Hex., Gd 5

4шт.

220

16008164

1/2" x 4" NC, Gd 5

2шт.

221

16810064

SET SCREW

5/8" x 1-1/2" NC Sq.Hd Cup Point

10шт.

222

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

4шт.

223

16012104

BOLT

3/4" x 2-1/2" NC Hex., Gd 5

22шт.

224

16012124

BOLT

3/4" x 3" NC Hex., Gd 5

1шт.

225

16012144

3/4" x 3-1/2" NC, Gd 5

1шт.

226

16002204

3/4" x 5" NC, Gd 5 (Not Shown)

2шт.

227

16012261

3/4" x 6-1/2" NC, Gd 5

3шт.

228

413-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

NC

4шт.

229

16014140

7/8" x 3-1/2" NC

2шт.

230

16901416

7/8" x 4-1/4" NC, Gd 5

9шт.

231

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

1шт.

232

16901616

1" x 3-3/4" NC

2шт.

233

16902027

SPECIAL PIN

1-1/4" x 6-1/2" NC Hex. Bolt

1шт.

234

NSS

NOT SOLD SEPARAT

1/4" Std. Washer

2шт.

235

495-21038

WASHER,5/16"

Std. Flat, ZP

2шт.

236

NSS

NOT SOLD SEPARAT

3/4" Plain Washer (Not Shown)

2шт.

237

17632020

BUSHING

2" Machinary

2шт.

238

17634051

2-1/8", 10 Ga.

13шт.

239

17634010

BUSHING

2-1/8" Machinary, 14 Ga.

18шт.

240

17636020

BUSHING

2-1/4" Machinary

2шт.

241

219-86

LUBE NIPPLE,1/8" NPTF

NPT Self Tap Grease Fitting

62шт.

242

15302225

1/8" NPT 22-1/2

2шт.

243

14810171

PIN

5/8" x 3-1/4" EL Clevis

1шт.

244

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/4" EL Clevis

1шт.

245

14816225

1" x 2-3/4" EL

2шт.

246

14720411

COTTER PIN

PIN, COTTER 1/8" Dia. x 2" Lg.

10шт.

247

14700201

1/16" x 1/2" Lg.

2шт.

248

432-1024

COTTER PIN,5/32" x 1 1/2"

4шт.

249

14700603

COTTER PIN

3/16" x 2-1/2"

1шт.

250

14816261

CLEVIS

1" x 3-1/4" Pin (Not Shown)

8шт.

251

14700404

1/8" x 2" (Not Shown)

2шт.
