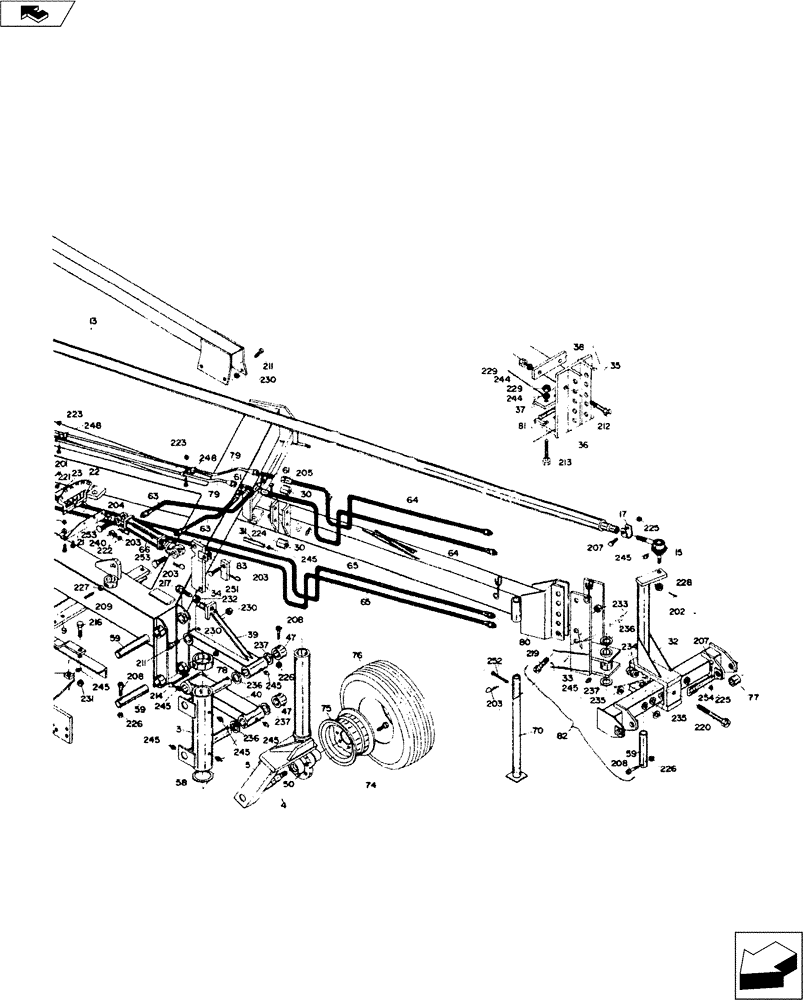

Запчасти Case IH 900 SERIES (39.100.01[01]) - MODEL 900 PLOW MAIN ASSEMBLY (39) - FRAMES AND BALLASTING

3

49939000

1шт.

3

49902000

(Early Style)

1шт.

4

49938000

1шт.

4

49903000

(Early Style)

1шт.

5

49938100

1шт.

5

49903100

(Early Style)

1шт.

7

14893288

2" x 11-1/4" Lg.

1шт.

8

49912000

1шт.

9

49932000

1шт.

13

49933000

205"

1шт.

15

32729000

TIE-ROD

RH End

3шт.

17

32739000

6шт.

18

49935000

1шт.

18

49936000

1шт.

18

49937000

1шт.

19

49933100

1шт.

20

49542000

1шт.

21

49537000

Width

1шт.

22

30010000

Width

1шт.

23

49541000

Width

1шт.

28

28170900

HUB ASSY.

Q-709

1шт.

30

49923000

2шт.

31

49924000

0.875 Dia x 5-1/8"

2шт.

32

49927000

GASKET

SPARE PART Cat 3 Hitch

1шт.

32

49928000

Cat 2

1шт.

33

49929000

1шт.

34

49930000

Front

1шт.

35

49977000

Includes Ref. 36 - 38 & Hardware

1шт.

36

49977100

1шт.

37

49549000

1шт.

38

49978000

1шт.

39

49305000

Upper

2шт.

40

49306000

Lower

2шт.

45

49419000

1шт.

46

49945000

1шт.

46

49307000

(Early Style)

1шт.

47

49308000

2-5/8" OD x 2.209 ID x 1-1/4" Lg.

4шт.

50

28180300

HUB ASSY.

Q-803

2шт.

52

49926000

Strip Trip

1шт.

52

49941000

Auto Reset

1шт.

58

44040000

5-1/16" OD x 4" ID x 1/2" Lg.

1шт.

59

49304000

2" x 10-3/4" Lg.

5шт.

61

25708803

7/8" - 14 Tee

2шт.

61

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

(Early Model)

2шт.

63

25600860

1/2" Hyd. x 60" Lg.

4шт.

63

25600660

3/8" Hyd. x 60" Lg (Early Model)

4шт.

64

25600897

HOSE

1/2" Hyd. x 162" Lg.

2шт.

64

25600697

3/8" Hyd. x 162" Lg (Early Model)

2шт.

65

25600696

3/8" Hyd. x 186" Lg.

2шт.

66

25030081

HYDRAULIC CYLINDER

3" Dia. x 8"

3шт.

68

49864000

16 Ga x 4-1/2" x 8"

2шт.

70

49983000

STAND

Parking

1шт.

71

NSS

NOT SOLD SEPARAT

Tire & Wheel Assy. 9.5L x 15

1шт.

74

10110154

WHEEL

10 x 15 6 Hole

2шт.

75

NSS

NOT SOLD SEPARAT

10 x 15 6 Bolt Wheel

2шт.

76

NSS

NOT SOLD SEPARAT

12.5L x 15 6-Ply Tire

2шт.

77

49553000

Cat 2

2шт.

77

49554000

Cat 3

2шт.

78

49707000

4-3/4" OD x 4" ID x 1-1/2" Lg.

1шт.

79

25653709

2шт.

80

49904000

1шт.

81

49905000

(Early Stage)

1шт.

82

49900070

Cat 3 Includes Ref. 32 - 33, 59, 77 & Hardware

1шт.

82

49900080

Cat 2

1шт.

83

49931000

1" x 2" x 5" Block

1шт.

201

NSS

NOT SOLD SEPARAT

1/16" Dia. Cotter Pin (1/2" Lg.)

2шт.

202

NSS

NOT SOLD SEPARAT

5/32" Dia. Cotter Pin (1-1/2" Lg.)

6шт.

203

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin x 2" Lg. # 11

8шт.

204

NSS

NOT SOLD SEPARAT

1/4" x 1" NC Hex. Bolt

2шт.

205

NSS

NOT SOLD SEPARAT

5/16" x 2" NC Hex. Bolt ZP

2шт.

207

NSS

NOT SOLD SEPARAT

7/16" x 2" Hex. Bolt ZP

8шт.

208

16008134

BOLT

1/2" x 3-1/4" NC Hex. Gd. 5

9шт.

209

16810064

SET SCREW

5/8" x 1-1/2" NC Sq. Hd. Cup Point

8шт.

210

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

2шт.

211

16012104

BOLT

3/4" x 2-1/2" NC Hex. Gd. 5

24шт.

212

16012124

BOLT

3/4" x 3" NC Hex. Gd. 5

6шт.

213

16012144

3/4" x 3-1/2" NC Hex. Gd. 5

4шт.

214

NSS

NOT SOLD SEPARAT

3/4" x 6-1/2" NC Hex. Bolt

1шт.

216

16901416

7/8" x 4-1/4" NC Hex.

6шт.

217

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

2шт.

218

16901616

1" x 3-3/4" NC Sp Hex.

2шт.

219

16020124

1-1/4" x 3" NC Hex. Gd. 5

4шт.

220

16902032

1-1/4" x 8" NC Hex. Gd. 5

1шт.

221

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Nut

2шт.

222

NSS

NOT SOLD SEPARAT

1/4" NC Lock Nut

2шт.

223

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

7шт.

224

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut ZP

2шт.

225

NSS

NOT SOLD SEPARAT

8/16" NC Hex. Nut

8шт.

226

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

9шт.

227

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

8шт.

228

425-1310

SLOTTED NUT,5/8"-18, G5

NF

6шт.

229

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

24шт.

230

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

7шт.

231

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

8шт.

232

NSS

NOT SOLD SEPARAT

1" NC Hex. Nut

4шт.

233

NSS

NOT SOLD SEPARAT

1-1/4" NC Hex. Nut

4шт.

234

NSS

NOT SOLD SEPARAT

1-1/4" NC Jam Nut

2шт.

235

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine 14 Ga

2шт.

236

17632020

BUSHING

2" Machine 10 Ga

1шт.

237

17632010

GROOVED BUSHING

2" Machine 18 Ga

1шт.

240

495-21031

WASHER,1/4"

Std Flat

2шт.

241

NSS

NOT SOLD SEPARAT

5/16" Std Flat Washer ZP

2шт.

244

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

6шт.

245

219-86

LUBE NIPPLE,1/8" NPTF

NPT Grease Zerk Self Tapping

1шт.

248

22531001

5/8"

10шт.

248

22530801

1/2" (Early Model)

10шт.

249

NSS

NOT SOLD SEPARAT

3/8" Sq. Key x 3" Lg.

1шт.

251

14810171

PIN

5/8" x 2-3/32" Clevis

1шт.

252

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/2" Clevis

2шт.

253

14816261

CLEVIS

1" x 3-1/4" Pin

6шт.

254

14818465

CLEVIS

1-1/8" x 6-3/4" Pin (For Cat 2 Hitch)

2шт.

254

14823465

1-7/16" x 6-3/4" (For Cat 3 Hitch)

2шт.
