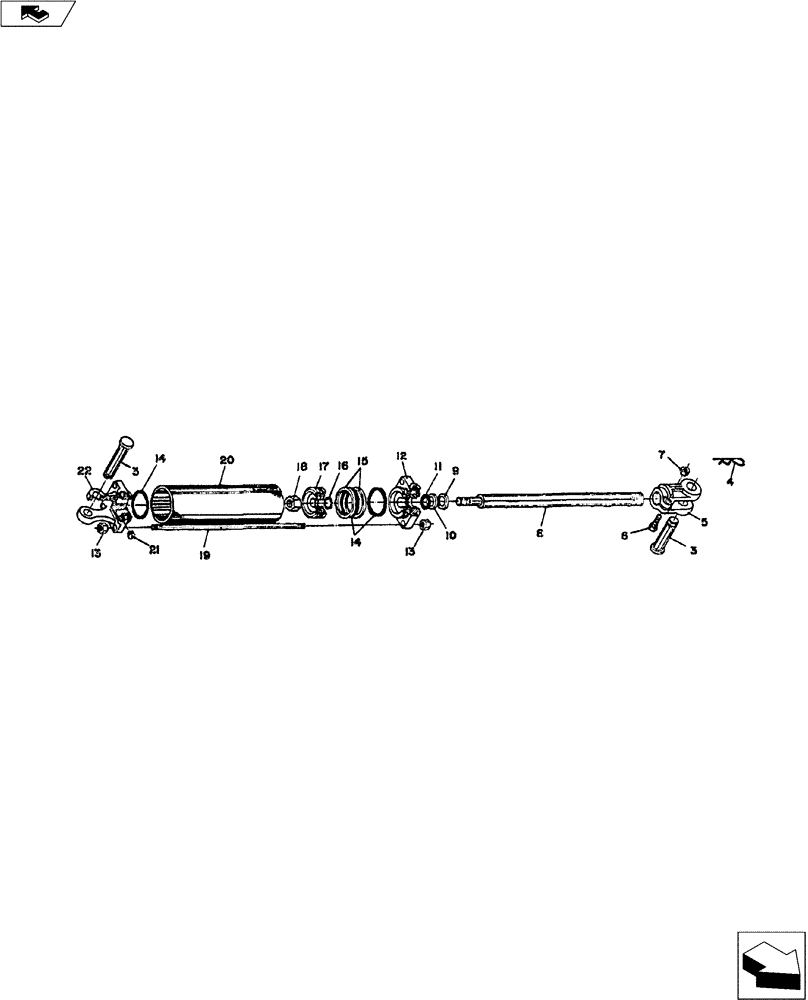

Запчасти Case IH 900 SERIES (35.100.04) - HYDRAULIC CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

25035161

3-1/2" x 16" (Not Shown)

1шт.

2

25803507

KIT

For 3-1/2" w/1-1/4" Rod (Not Shown)

1шт.

3

14816261

CLEVIS

1" x 3-1/4" EL Pin

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" #11 Hair Pin

2шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25803513

SHAFT

1-1/4" Rod for 16" Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal (Not Sold Separately)

1шт.

10

NSS

NOT SOLD SEPARAT

Back-up Washer (Not Sold Separately)

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

12

25803501

SHAFT

Cylinder Head

1шт.

13

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

3шт.

15

NSS

NOT SOLD SEPARAT

Back-up Seal (Not Sold Separately)

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring (Not Sold Separately)

1шт.

17

25803502

PISTON

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25803511

THREADED TIE-ROD

1шт.

20

25803512

BARREL

For 3-1/2" x 16" Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

3/8" NPT Pipe Plug

1шт.

22

25803505

YOKE

Cylinder Base

1шт.
