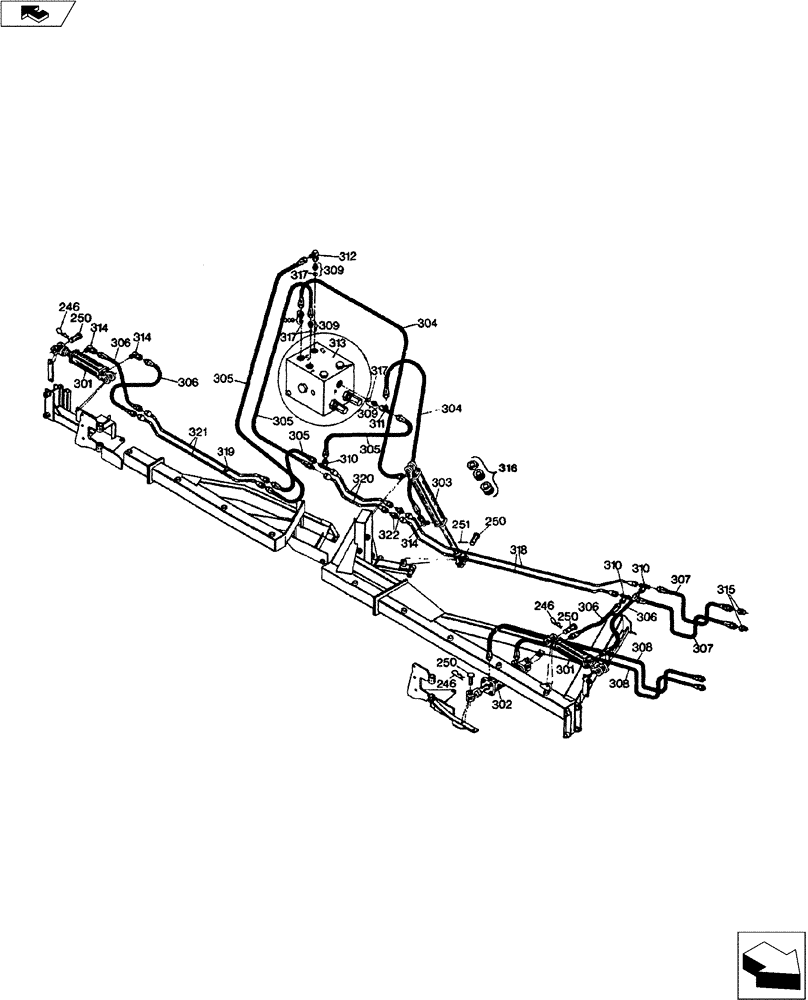

Запчасти Case IH 900 SERIES (35.100.01) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

301

25030081

HYDRAULIC CYLINDER

3" x 8" Assy.

2шт.

302

25035080

HYDRAULIC CYLINDER

3-1/2" x 8" Stroke

1шт.

303

25035161

3-1/3" x 16"

1шт.

304

25600849

1/2" Hyd. - 1/2 NPTM 7/8"-14 JICF Female Swivel x 48" Lg.

2шт.

305

25600840

1/2" Hyd. - 7/8" JICM x 7/8" JICF x 40" Lg.

4шт.

306

25600860

1/2" Hyd. w/1/2" NPTM 7/8"-14 JICM x 60" Lg.

4шт.

307

25600897

HOSE

1/2" Hyd. w/1/2" NPT 7/8"-14 JICF x 162" Lg.

2шт.

308

25600696

3/8" Hyd. w/1/2" NPT 3/8 NPT x 186" Lg.

2шт.

309

25708809

#8 SAE St Thread 7/8"-14 JICM Adaptor w/O-Ring

4шт.

310

25708803

Tube Tee Side Swivel (2) 7/8" -14 JICM & (1) 7/8" -14 JICF

3шт.

311

25700810

Tube Tee Swivel Run (2) 7/8" -14 JICM & (1) 7/8" -14 JICF

1шт.

312

25708811

90 Elbow 7/8" -14 Swivel

1шт.

313

25403765

Sequence

1шт.

315

25705031

2шт.

316

25800010

CYLINDER

Control Segment

1шт.

317

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

318

25650805

2шт.

319

22531001

5/8"

18шт.

320

25650804

2шт.

321

25650803

2шт.

322

25708802

7/8-14 JICM x7/8"- 14 JICM Male Adaptor

2шт.
