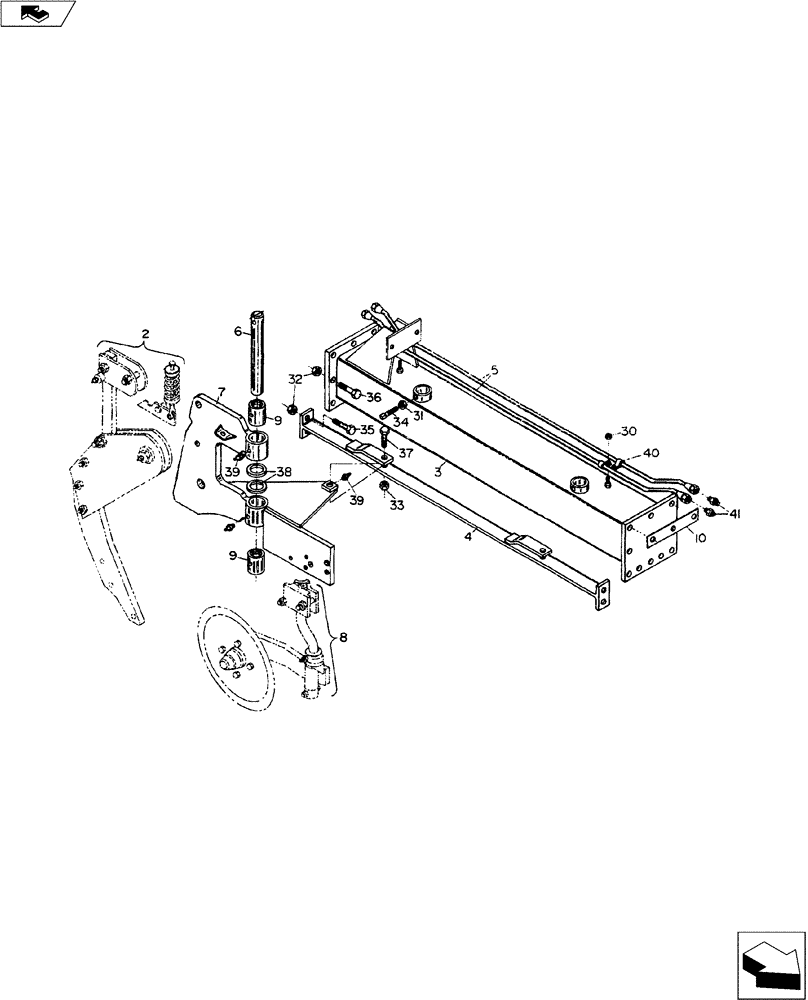

Запчасти Case IH 900 SERIES (75.200.10) - 2 BOTTOM EXTENSION ASSEMBLY (75) - SOIL PREPARATION

1

49800200

w/16" Bottom (Not Shown)

1шт.

1

49400200

w/16" Bottom (Not Shown)

1шт.

2

49300190

2шт.

2

49400190

2шт.

3

49801000

1шт.

4

49753000

1шт.

5

22650803

2шт.

6

49535000

2шт.

7

49302000

2шт.

7

49417000

2шт.

8

49109001

2шт.

8

49324001

2шт.

9

44021320

Bronze 2-1/8" ID x 3-1/2" Lg.

4шт.

10

49754000

0.060 x 2-3/8" x 12" Lg.

1шт.

30

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut

2шт.

31

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Lock Nut

12шт.

33

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

2шт.

34

16810064

SET SCREW

5/8" x 1-1/2" Sq. Hd. Cup Point Gd. 5

2шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

2шт.

36

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" NC Hex. Bolt Gd. 5

10шт.

37

NSS

NOT SOLD SEPARAT

7/8" x 4-1/2" NC Hex. Bolt

2шт.

38

17634010

BUSHING

2-1/8" Narrow Rim Machine

4шт.

39

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

6шт.

40

22531001

5/8"

4шт.

41

25708802

7/8" -14 JICM x 7/8" - 14 JICM Male

2шт.
