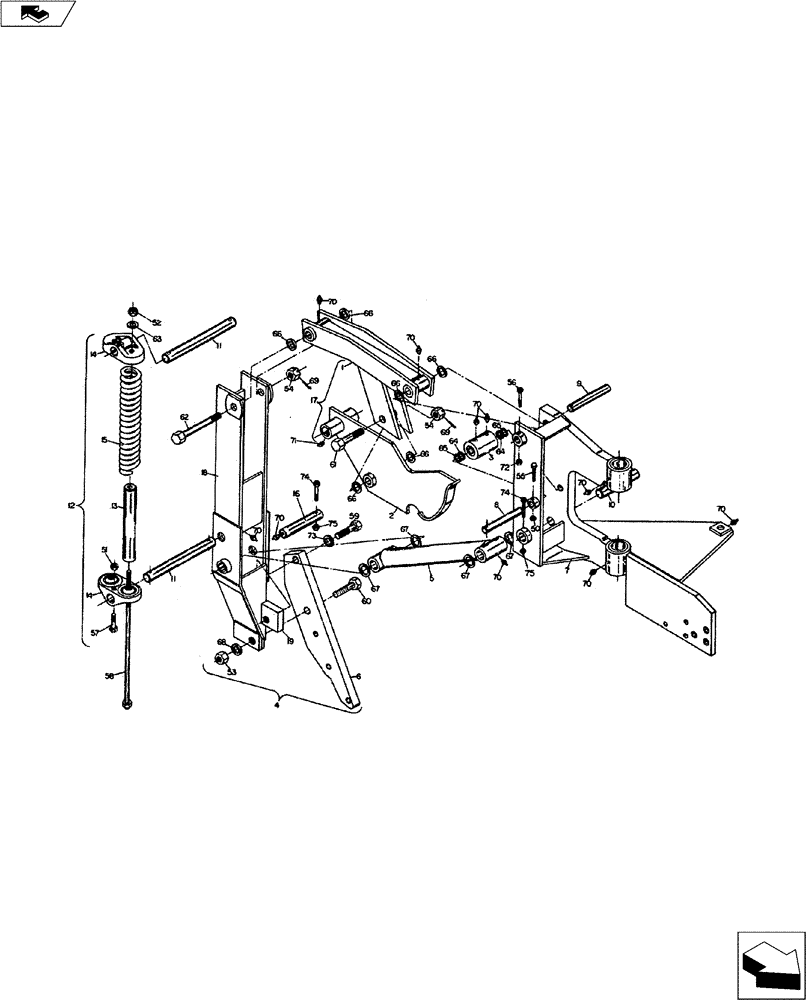

Запчасти Case IH 900 SERIES (75.200.09) - AUTO RESET ASSEMBLY (75) - SOIL PREPARATION

1

49426000

1шт.

2

49402000

1шт.

3

49403000

2-1/2" Dia.

1шт.

4

49410000

1шт.

5

49428000

1шт.

6

49423000

1шт.

7

49416000

1шт.

7

49417000

1шт.

7

49418000

1шт.

8

49404000

7/8" Dia. Round x 6-3/4" Lg.

1шт.

9

49411000

1" Dia. Round x 6-3/4" Lg.

1шт.

10

49409000

1-1/4" Dia. Round x 6-3/4" Lg.

1шт.

11

49406000

1-1/4" Dia. Round x 12-1/4" Lg.

2шт.

12

49421000

29-1/2"

2шт.

12

49426000

1шт.

12

49420000

30-1/2"

2шт.

12

49412000

31-1/2"

2шт.

13

49413000

4шт.

14

20092060

7/16" Dia.

4шт.

15

24143840

7/16" Dia. Wire x 25.34 Spring

4шт.

15

24143830

7/16" Dia. Wire x 26.17 Spring

4шт.

15

24143820

7/16" Dia. Wire x 27.02 Spring

4шт.

16

49427000

1-1/4" Dia. Round x 6-3/4"

1шт.

17

49429000

Includes Ref. 1, 2, & Hardware

1шт.

18

49422000

1шт.

19

49424000

1шт.

50

NSS

NOT SOLD SEPARAT

5/16" NC Hex. Nut ZP

1шт.

51

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut ZP

4шт.

52

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

53

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Nut

1шт.

54

NSS

NOT SOLD SEPARAT

1" NC Slotted Nut

2шт.

55

NSS

NOT SOLD SEPARAT

5/16" x 2" NC Hex. Bolt ZP

1шт.

56

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" NC Hex. Bolt ZP Gd. 5

1шт.

57

NSS

NOT SOLD SEPARAT

1/2" x 2-3/4" NC Hex. Bolt ZP Gd. 5

4шт.

58

16901299

3/4" x 28-3/4" NC Sp. Hex.

4шт.

59

16901612

1" x 3" NC Sp. Hex. Gd. 5

1шт.

60

16901418

7/8" x 3-1/2" Sp. Hex. Gd. 4

1шт.

61

16901617

1" x 3-3/4" NC Hex.

1шт.

62

16901629

1" x 6-3/4" NC Hex.

1шт.

63

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

3/4" Machine Bushing

4шт.

64

17614030

BUSHING

7/8" Machine 10 Ga

1шт.

65

17614020

BUSHING

7/8" Machine 14 Ga

1шт.

66

17616020

WASHER

1" Machine Bushing

6шт.

67

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4" Machine

4шт.

68

NSS

NOT SOLD SEPARAT

7/8" Lock Washer

1шт.

69

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

2шт.

70

NSS

NOT SOLD SEPARAT

1/8" NPT Straight Grease Zerk

9шт.

71

NSS

NOT SOLD SEPARAT

1/8" NPT 22-1/2 Grease Zerk

2шт.

72

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut ZP

1шт.

73

NSS

NOT SOLD SEPARAT

1" Lock Washer ZP

1шт.

74

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" NC Hex. Bolt ZP Gd. 5

2шт.

75

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut ZP

2шт.
