Запчасти Case IH 900 SERIES (75.200.08) - SPRING TRIP SHANK ASSEMBLY (75) - SOIL PREPARATION

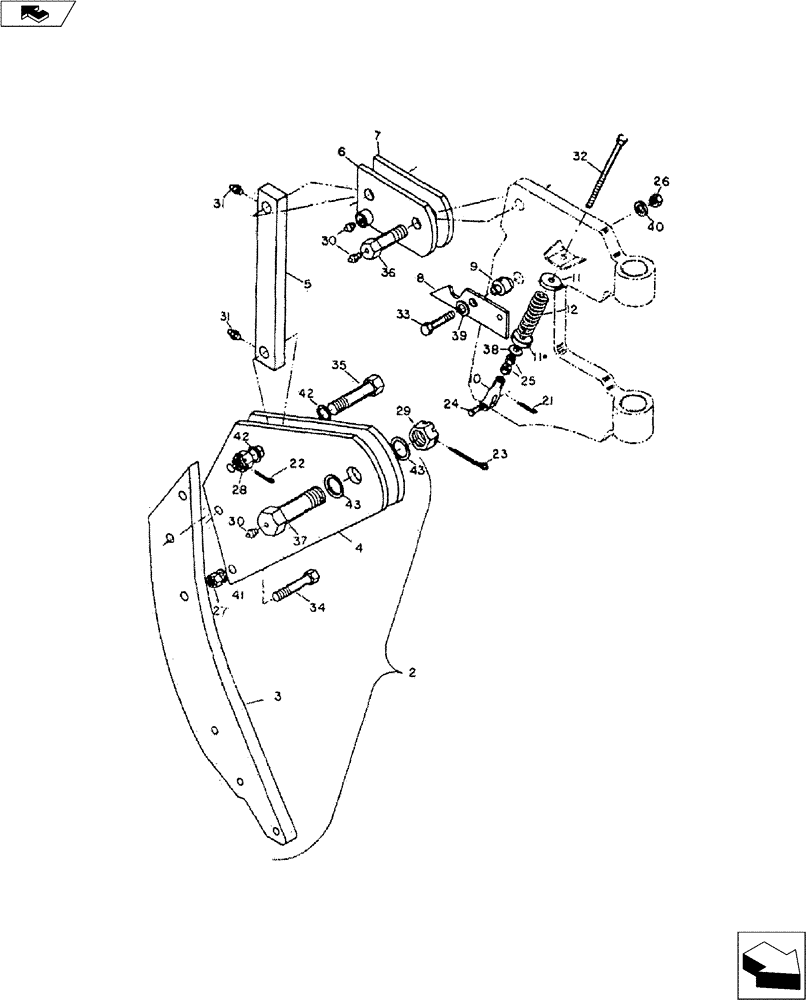

Схема запчастей Case IH 900 SERIES - (75.200.08) - SPRING TRIP SHANK ASSEMBLY (75) - SOIL PREPARATION
24
32
34
25
40
8
42
2
30
38
31
11
37
10
33
5
12
4
26
11
30
9
41
43
22
42
3
27
36
23
31
43
6
7
28
35
21
29

Артикул

Название

Примечание

Количество

1

49556000

Includes 6-12 (Not Shown)

1шт.

2

49524000

Includes Ref. 3 & 4

1шт.

3

49579000

1шт.

4

49578000

1шт.

5

49539000

w/Zerk

1шт.

6

49562000

RH w/roller

1шт.

7

49563000

LH

1шт.

8

49580000

1шт.

9

49557000

1шт.

10

22706001

3/8"

1шт.

11

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

2шт.

12

24120701

COMPRESSION SPRING

0.207 Wire

1шт.

21

NSS

NOT SOLD SEPARAT

3/32" x1-1/2" Cotter Pin

1шт.

22

NSS

NOT SOLD SEPARAT

3/16" x 2" Cotter Pin

3шт.

23

NSS

NOT SOLD SEPARAT

1/4" x 3" Cotter Pin

1шт.

24

14806071

3/8" x 7/8"

1шт.

25

NSS

NOT SOLD SEPARAT

3/8" NF Hex. Nut ZP

2шт.

26

NSS

NOT SOLD SEPARAT

1/2" NC Heavy Hex. Nut

1шт.

27

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

28

425-1216

SLOTTED NUT,Hex, 1"-8, G5

NC

3шт.

29

14052400

1-1/2" NC

1шт.

30

NSS

NOT SOLD SEPARAT

1/4" -28 Grease Zerk

3шт.

31

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

2шт.

32

16900628

3/8" x 7" NF Special Hex.

1шт.

33

NSS

NOT SOLD SEPARAT

1/2" x 3-1/2" NC Hex. Bolt

1шт.

34

16901215

BOLT

3/4" x 3-3/4" NC A325 Str.

3шт.

35

16901615

SPECIAL BOLT

1" x 3-3/4" NC Hex.

2шт.

36

16901617

1" x 3-3/4" NC Special Hex. w/Zerk

1шт.

37

16902416

SPECIAL BOLT

1-1/2" x 4-1/4" Sp. Hex. w/Zerk

1шт.

38

17407040

7/16" ID x 1-3/8" OD

1шт.

39

NSS

NOT SOLD SEPARAT

1/2" Std. Flat Washer

1шт.

40

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" ID x 1-3/8" OD Heavy Duty

1шт.

41

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

3шт.

42

NSS

NOT SOLD SEPARAT

1" Machine Bushing

6шт.

43

NSS

NOT SOLD SEPARAT

1-1/2" Machine Bushing

2шт.

Выбрано товаров: 35
