(75.200.04) - FRONT RIGID COULTER ASSEMBLY

Запчасти Case IH 900 SERIES (75.200.04) - FRONT RIGID COULTER ASSEMBLY (75) - SOIL PREPARATION

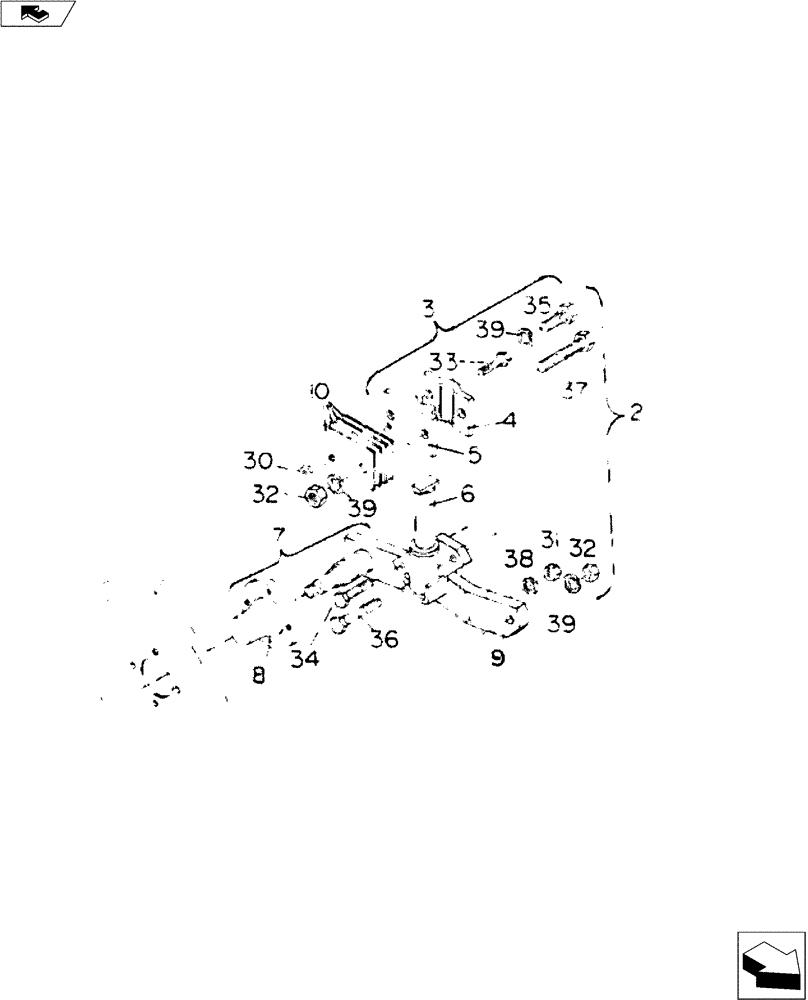

Схема запчастей Case IH 900 SERIES - (75.200.04) - FRONT RIGID COULTER ASSEMBLY (75) - SOIL PREPARATION
39
8
33
7
37
39
36
6
2
31
10
35
9
30
3
39
32
1
38
5
4
34
32
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

49300070

1шт.

3

49327000

Includes Ref. 4-5 & Hardware

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp Casting

1шт.

6

49345000

1шт.

7

49346000

Includes Ref. 8 & 9

1шт.

8

28163300

HUB ASSY.

Q-633 Hub & Spindle Assy.

1шт.

9

49354000

1шт.

10

49314000

4шт.

11

443638A1

PLOW DISC

24" Coulter Blade (Std.) (Not Shown)

1шт.

11

33502040

20" (Opt.) (Not Shown)

1шт.

11

33502041

20" (Opt.) (Not Shown)

1шт.

30

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

1шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

33

16007144

7/16" x 3-1/2" NC Hex. Gd. 5

1шт.

34

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1/2" x 2-3/4" NC Hex. Bolt Gd. 5

1шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

1шт.

36

16012144

3/4" x 3-1/2" NC Hex. Gd. 5

1шт.

37

16012244

3/4" x 6" NC Hex. Gd. 5

1шт.

38

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

1шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

3шт.
