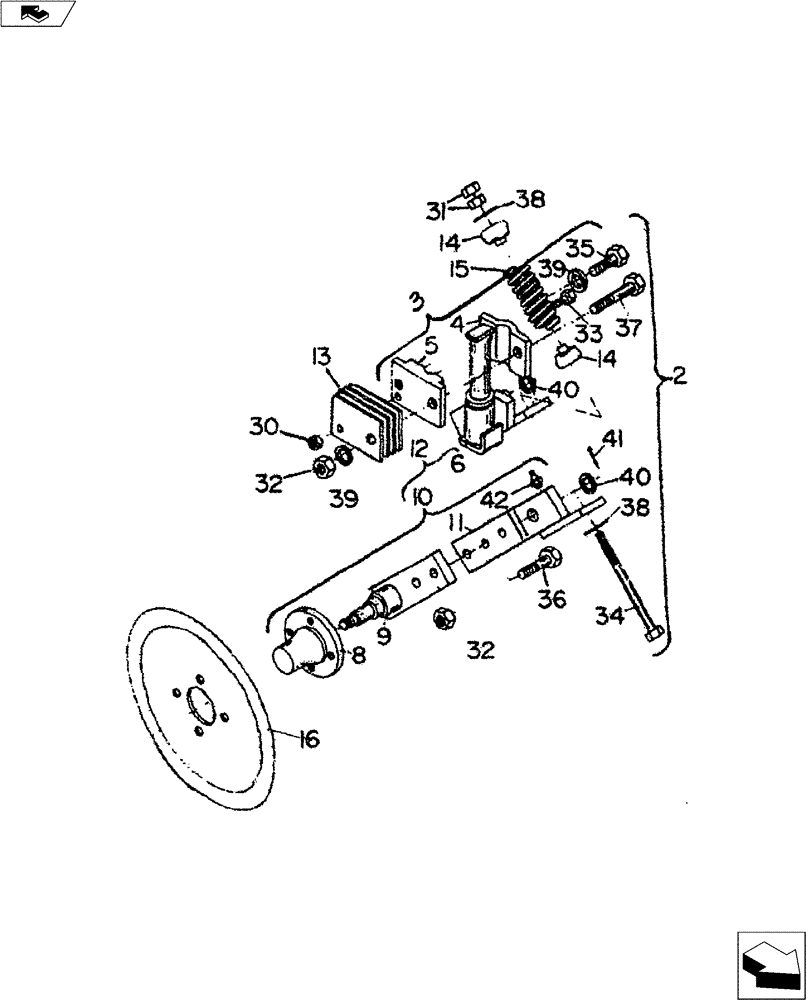

Запчасти Case IH 900 SERIES (75.200.03) - FRONT SPRING LOADED COULTER ASSEMBLY (75) - SOIL PREPARATION

1

49320001

(Not Shown)

1шт.

2

49320000

1шт.

3

49327000

Includes Ref. 4-5 & Hardware

1шт.

4

49564000

1шт.

5

20092021

CASTING

Coulter Clamp

1шт.

6

49321000

1шт.

7

49338000

Includes 8-9 (Not Shown)

1шт.

8

28163300

HUB ASSY.

Q-633 Spindle Assy.

1шт.

9

49339000

1шт.

10

49322000

Includes Ref. 7, 11 & Hardware

1шт.

11

49337000

1шт.

12

49334000

Includes Ref. 6, 10 & Hardware

1шт.

13

49314000

4шт.

14

20090050

HOLDER

Spring Casting

2шт.

15

24156201

COMPRESSION SPRING

1шт.

16

443638A1

PLOW DISC

24" Coulter Blade (Std)

1шт.

16

33502040

20" (Opt)

1шт.

16

33502041

20" (Opt)

1шт.

30

NSS

NOT SOLD SEPARAT

7/16" NC Hex. Nut

1шт.

31

NSS

NOT SOLD SEPARAT

5/8" NC Jam Nut

2шт.

32

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

3шт.

33

16007144

7/16" x 3-1/2" NC Hex. Gd. 5

1шт.

34

NSS

NOT SOLD SEPARAT

5/8" x 12" NC Hex. Bolt

1шт.

35

NSS

NOT SOLD SEPARAT

3/4" x 2" NC Hex. Bolt

1шт.

36

NSS

NOT SOLD SEPARAT

3/4" x 3" NC Hex. Bolt

2шт.

37

16012244

3/4" x 6" NC Hex. Gd. 5

1шт.

38

17411012

WASHER

21/32" ID x 1-3/4" OD x 0.240 Thickness

2шт.

39

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

2шт.

40

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1 -1/4" Machine 14 Ga

2шт.

41

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

1шт.

42

NSS

NOT SOLD SEPARAT

1/8" NPT Self Tapping Zerk

1шт.
