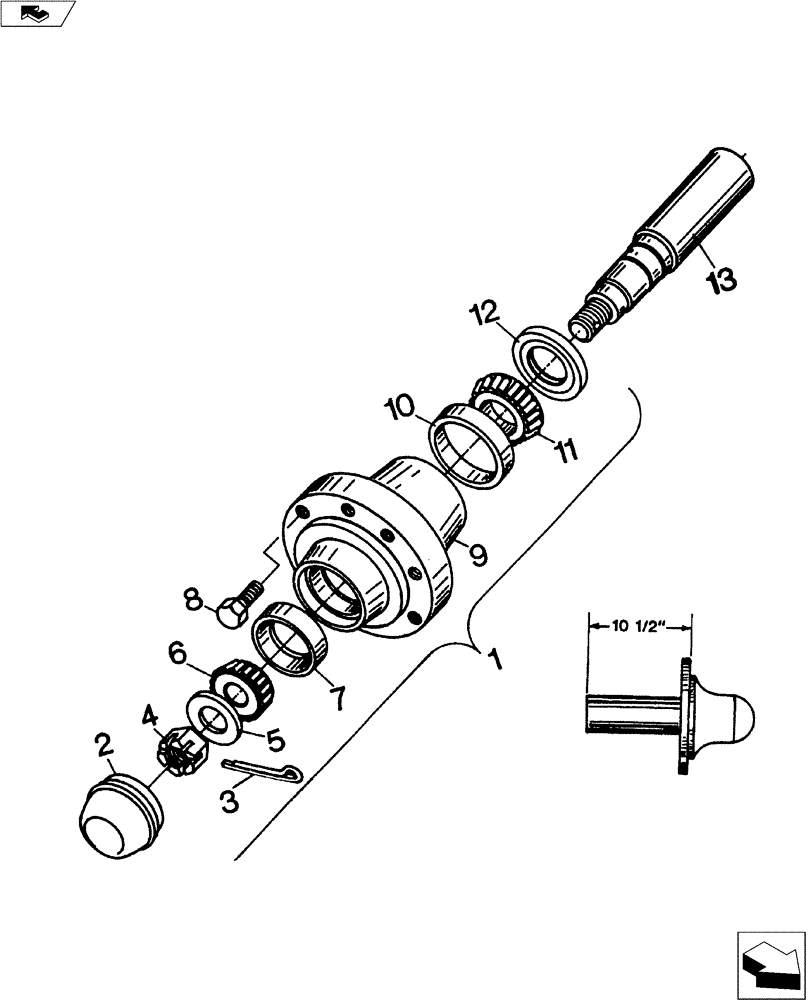

Запчасти Case IH 900 SERIES (44.100.04) - Q-821 HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28182100

4WD AXLE ASSY

Q-821 B-Bolt Hub Assy.

1шт.

2

28480300

CAP

Hub

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" SAE Washer

1шт.

6

B13259

1.31 Bore, 2790

1шт.

7

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00 OD Timken #2720

1шт.

8

16409083

BOLT

9/16"-18 UNF Wheel

8шт.

9

28282100

HUB

1шт.

10

21883670

CUP

3.67 OD Timken #3720

1шт.

11

21872000

BEARING, CONE

2.00 Bore Timken #3780

1шт.

12

820095C91

SEAL

2.50 ID x 3.75 OD CR #375W216-MI

1шт.

13

28382121

SPINDLE

1шт.

14

28082121

HUB

Spindle Assy. (Not Shown)

1шт.
