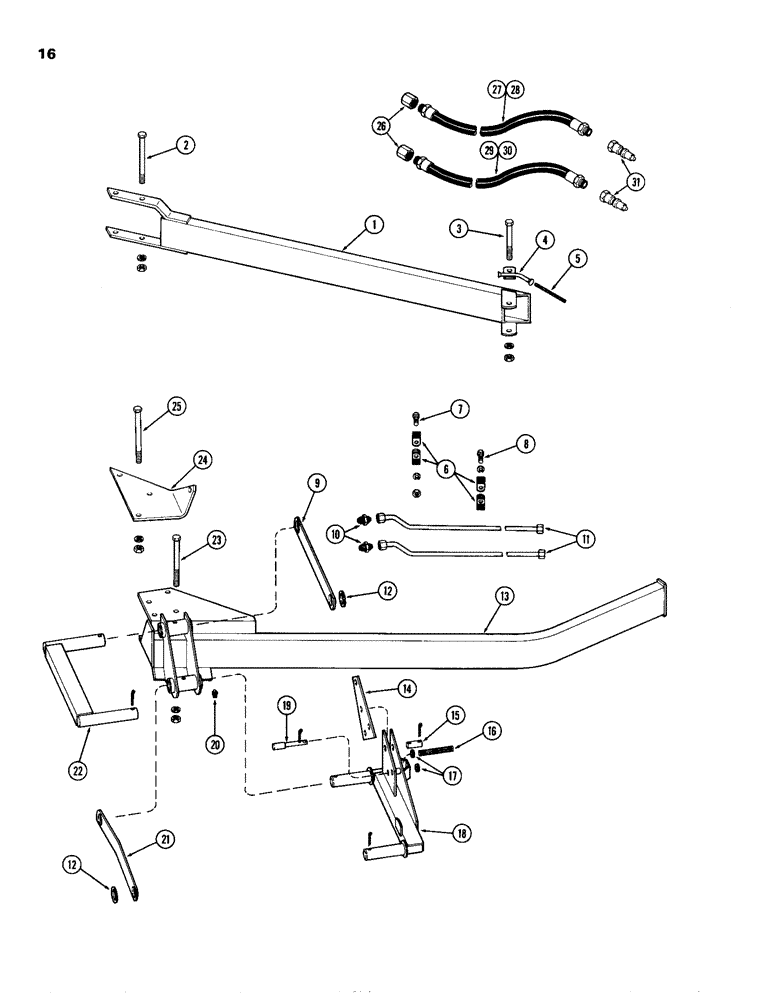

Запчасти Case IH 8300-SERIES (16) - FRONT WHEEL LINKAGE, ON LAND

1

T52564

BRACE

1шт.

2

115-512

BOLT

5/8" x 10" N.C. hex., Z.P.

2шт.

3

115-513

BOLT, 5/8" x 8" N.C. hex., Z.P.

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

129-107

NUT,5/8"-11, G5

3шт.

4

T52569

GUIDE ASSY.-rope

1шт.

5

T52572

ROPE - latch control (1/4" x 200")

1шт.

6

49838

CLAMP

- tube

4шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

T51315

STRAP - upper

1шт.

10

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

CONNECTOR - tube, 3/4"

2шт.

11

T52587

TUBE ASSY 0.5" OD x 36, 2.9" L

2шт.

12

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- 2-3/4" x 1-13/16" x 12 ga., Z.P.

4шт.

13

T52558

SUPPORT - wheel

1шт.

14

T52583

LINK - cylinder

1шт.

15

T24098

PIN

1шт.

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

16

O72L

SPRING

1шт.

17

195-545

WASHER,3/4", SAE

- plain, 3/4"

2шт.

18

T52573

LINK - lower

1шт.

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

19

T52584

PIN - latch

1шт.

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

21

T52582

STRAP - lower

1шт.

22

T52581

LINK - upper

1шт.

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

23

115-512

BOLT

- 5/8" x 10" N.C. hex. Z.P.

3шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

129-107

NUT,5/8"-11, G5

3шт.

24

T52585

ANCHOR - cylinder

1шт.

25

115-514

BOLT - 5/8" x 10-1/2" N.C. hex., Z.P.

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

26

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 7/8" X 1/2" (Furrow Wheel - 2470)

2шт.

27

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - extension (31-5/8") (Furrow Wheel-2470)

2шт.

28

A27362

HOSE

- extension (88") (Furrow Wheel)

2шт.

29

T50248

HOSE - extension (92") (Furrow Wheel)

2шт.

30

A20817

HOSE

- extension (118") (Hyd. Tubes)

2шт.

31

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (See Page 45)

4шт.
