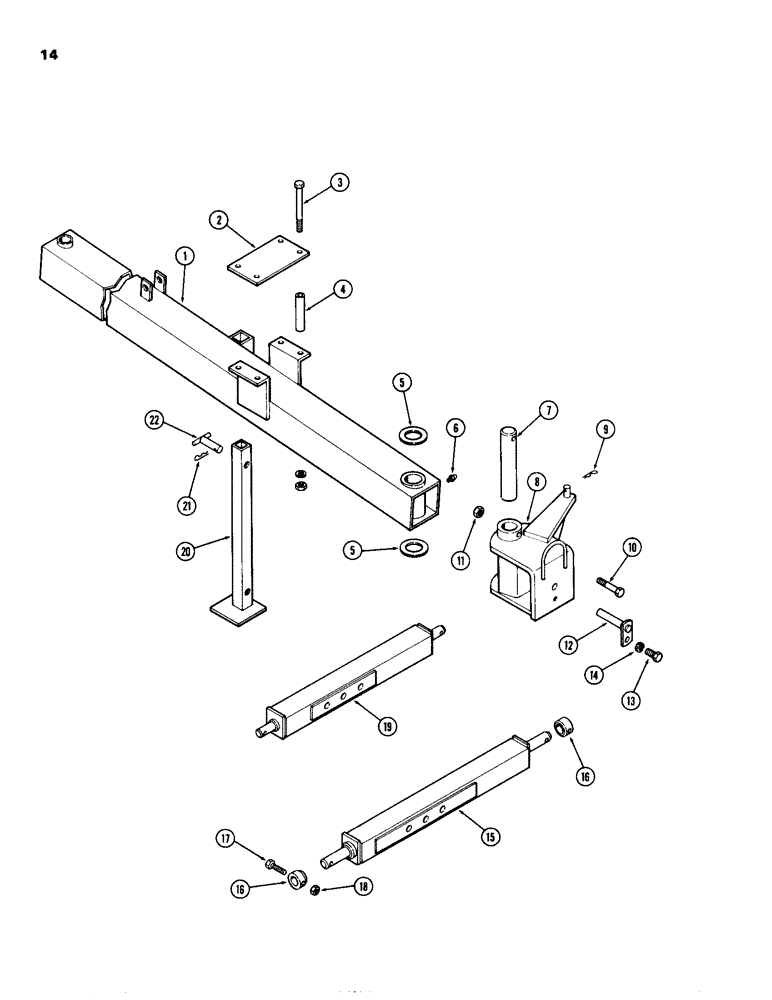

Запчасти Case IH 8300-SERIES (14) - HITCH TONGUE AND DRAWBAR, ON LAND

1

T52544

TONGUE - hitch

1шт.

2

T52543

PLATE - clamp

1шт.

3

115-513

BOLT - 5/8" X 8" N.C. hex., Z.P.

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

4

T52431

SUPPORT - clamp

4шт.

5

195-2164

WASHER - 3-1/2" x 2-1/2" x 11 ga

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

T52968

PIN - pivot

1шт.

8

T52963

PIVOT - hitch

1шт.

9

B17308

CLIP

COTTER - hairpin

1шт.

10

113-2607

BOLT - 5/8" X 4-1/4" N.C. hex., w/1" thrd., gr. 8, Z.P.

1шт.

11

131-1130

LOCK NUT,5/8"-11, GA

NUT - lock, 5/8" N.C. hex., Z.P.

1шт.

12

T36735

PIN - pivot

1шт.

13

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

T53507

DRAWBAR

- Category III (Repl. T52910 inter.)

1шт.

16

T53784

COLLAR

- (Replaces T32862 inter.)

2шт.

17

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

18

131-590

LOCK NUT

NUT-lock, 3/8" N.C. hex., Z.P.

2шт.

19

T36818

DRAWBAR - Category II

1шт.

20

T52428

STAND - hold-up

1шт.

21

B17308

CLIP

COTTER - hairpin

1шт.

22

T53836

PIN - (Replaces T51058 inter.)

1шт.
