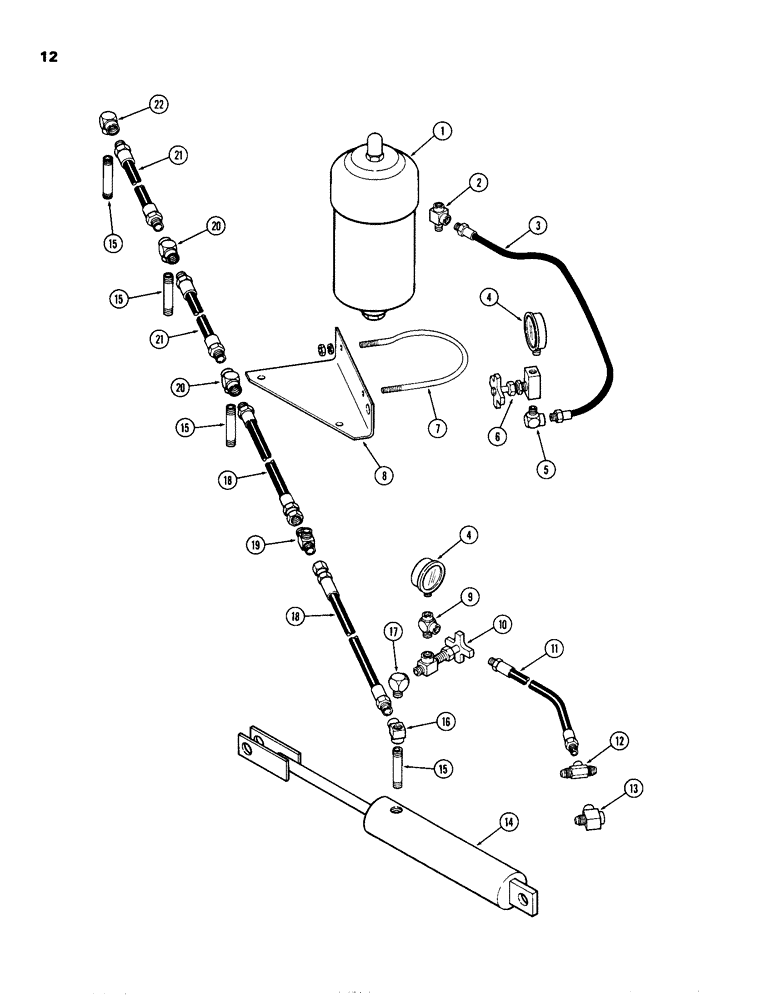

Запчасти Case IH 8300-SERIES (12) - ACCUMULATOR AND CYLINDER HOSES
№
Артикул
Название
Примечание
Количество
1
T38304
ACCUMULATOR (All Btm.)
1шт.
Charge accumulater, 1200-1450 psi, the hydraulic pressure is to be 100 psi higher than the charge pressure, but not to exceed 400 psi higher
1шт.
2
217-1061
TEE,1/8" - 27 Female x 1/8" - 27 Male Run
- charging, 1/8" (All Btm.)
1шт.
3
T52215
HOSE - gauge, 3/16" x 18" (All Btm.)
1шт.
4
T38255
GAUGE
- 3000# (All Btm.)
2шт.
5
217-1015
ELBOW,1/4" - 18 Female x 1/4" - 18 Male
90°, 1/4"-18 Female x 1/4"-18 Male, Gauge (All Btm.)
1шт.
6
T52214
VALVE - shutoff (All Btm.)
1шт.
7
T38865
"U" BOLT - accumulator (All Btm.)
1шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (All Btm.) 3/8"
2шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, (All Btm.) 3/8"-16, G5
2шт.
8
T52652
BRACKET - accumulator (All Btm.)
1шт.
9
217-1070
HYD CONNECTOR,1/4" - 18 Female x 3/8" - 18 Male Run
TEE - service, charging gauge (All Btm.)
1шт.
10
T52646
VALVE - shutoff, charging (All Btm.)
1шт.
11
T12161
HOSE - 3/8" x 20" (All Btm.)
1шт.
12
218-574
TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br
FITTING - service, charging (On Land) (Qty: 6 Btm.-1)
1шт.
13
T52644
TEE - service, charging (In Furrow) (All Btm.)
1шт.
14
T51518
CYLINDER
- reset (See Page 35) (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm.-6)
1шт.
15
221-166
NIPPLE - pipe, 3" (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm.-6) Nipple, 3/8" NPT x 3"
1шт.
16
217-1170
TEE - pipe, charging, #1 cylinder (All Btm.)
1шт.
17
217-1016
ELBOW,3/8" - 18 Female x 3/8" - 18 Male
- street, 90deg. (All Btm.)
1шт.
18
T52649
HOSE - accumulator, 1/2" x 17-5/16" (All Btm.)
2шт.
19
2185183
TEE - accumulator, 1/2" (All Btm.)
1шт.
20
217-1171
TEE,Female, 1/2"-14 x 3/8"-18 Br
- pipe, cylinder (Qty: 4 Btm.-2, 5 Btm.-3, 6 Btm.-4)
1шт.
21
T52648
SWITCH
HOSE - cylinder, 1/2" x 36" (Qty: 4 Btm.-2, 5 Btm.-3, 6 Btm.-4)
1шт.
22
217-1039
ELBOW - cylinder, rear
1шт.
T52653
TAPE - sealer (All Btm.)
1шт.
1
T38304
ACCUMULATOR (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
2
217-1061
TEE,1/8" - 27 Female x 1/8" - 27 Male Run
- chargin,g 1/8" (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
3
T52215
HOSE - gauge, 3/16" x 18" (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
4
T38255
GAUGE
- 3000# (Qty: 7 Btm.-2, 8 Btm.-3)
1шт.
5
217-1015
ELBOW,1/4" - 18 Female x 1/4" - 18 Male
90°, 1/4"-18 Female x 1/4"-18 Male, Gauge (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
6
T52214
VALVE - shutoff (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
7
T38865
"U" BOLT - accumulator (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Qty: 7 Btm.-2, 8 Btm.-4) 3/8"
1шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, (Qty: 7 Btm.-2, 8 Btm.-4) 3/8"-16, G5
1шт.
8
T52652
BRACKET - accumulator (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
9
217-1070
HYD CONNECTOR,1/4" - 18 Female x 3/8" - 18 Male Run
TEE - SERVICE CHARGING GAUGE (All Btm.)
1шт.
10
T52646
VALVE - shutoff, charging (All Btm.)
1шт.
11
T12161
HOSE - 3/8" x 20" (All Btm.)
1шт.
12
218-574
TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br
FITTING - service, charging (On Land) (All Btm.)
1шт.
13
T52644
TEE - service, charging (In Furrow)
1шт.
14
T51518
CYLINDER
- reset (Qty: 7 Btm.-7, 8 Btm.-8)
1шт.
15
221-166
NIPPLE - pipe, 3" (Qty: 7 Btm.-7, 8 Btm.-8) Nipple, 3/8" NPT x 3"
1шт.
16
217-1170
TEE - pipe, charging, #1 cylinder (All Btm.)
1шт.
17
217-1016
ELBOW,3/8" - 18 Female x 3/8" - 18 Male
- street, 90deg.
1шт.
18
T52649
HOSE - accumulator, 1/2" x 17-5/16" (Qty: 7 Btm.-2, 8 Btm.-4)
1шт.
19
218-5183
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- accumulator, 1/2" (Qty: 7 Btm.-1, 8 Btm.-2)
1шт.
20
217-1171
TEE,Female, 1/2"-14 x 3/8"-18 Br
- pipe, cylinder (Qty: 7 Btm.-5, 8 Btm.-6)
1шт.
21
T52648
SWITCH
HOSE - cylinder, 1/2" x 36" (Qty: 7 Btm.-5, 8 Btm.-6)
1шт.
22
217-1039
ELBOW - cylinder, rear (All Btm.)
1шт.
T52653
TAPE - sealer (All Btm.)
1шт.
