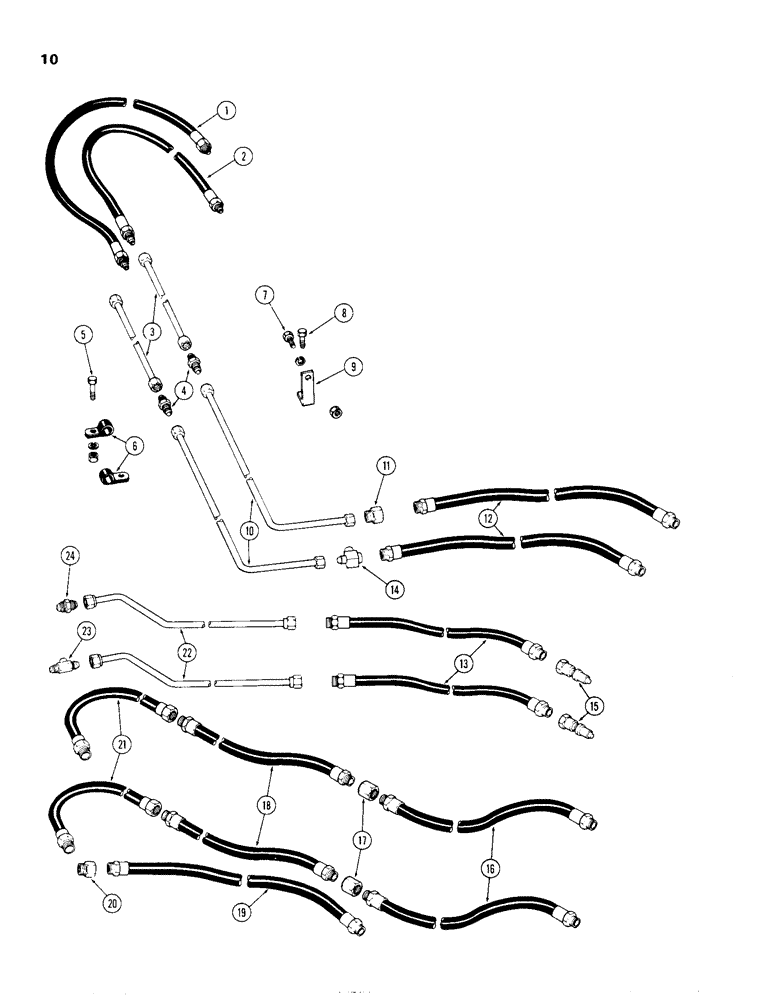

Запчасти Case IH 8300-SERIES (10) - HYDRAULIC TUBES AND HOSES

1

T52452

HOSE - rear, 48" (All Btm.)

1шт.

2

T52453

HOSE - rear, 38" (All Btm.)

1шт.

3

T52599

TUBE - rear cylinder, rear (108-3/4") (Qty: 7 Btm.-2) 0.5" OD x 108.8" L

1шт.

3

T52600

TUBE - rear cylinder, rear (145-1/2") (Qty: 8 Btm.-2) 0.5" OD x 145.5" L

1шт.

4

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- tube, 1/2" (All Btm.)

2шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(All Btm.) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (All Btm.) 3/8"

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (All Btm.) 3/8"-16, G5

3шт.

6

49838

CLAMP

- tube (All Btm.)

8шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(All Btm.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(All Btm.) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (All Btm.) 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, (All Btm.) 3/8"-16, G5

2шт.

9

T52345

CLIP - tube (All Btm.)

1шт.

10

T52596

TUBE - rear cylinder, front (146-1/2") (All Btm.) 0.5" OD x 146.4, 64" L

2шт.

11

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR - hose, 1/2" (In Furrow) (All Btm.)

1шт.

12

A20816

HOSE

- extension (106") (Hillside Attmt.) (All Btm.)

1шт.

13

A20817

HOSE

- extension (118") (In Furrow) (All Btm.)

2шт.

14

T52644

TEE - service, charging (In Furrow) (All Btm.)

1шт.

15

A28541

COUPLING, BREAK AWAY

PLUG - breakaway (See Page 45) (All Btm.)

4шт.

16

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - extension (31-5/8") (Furrow Wheel - 2470) (All Btm.)

2шт.

17

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 1/2" X 7/8" (Furrow Wheel-2470) (All Btm.)

2шт.

18

A27362

HOSE

- extension (88") (Furrow Wheel) (All Btm.)

2шт.

19

A8205

HOSE - extension (93-5/8") (Hillside Attmt.) (All Btm.)

1шт.

20

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- 7/8" x 1/2" (Hillside Attmt.) (All Btm.)

1шт.

21

T50248

HOSE - extension (92") (Furrow Wheel) (All Btm.)

2шт.

22

T52587

TUBE ASSY. - On Land (All Btm.) 0.5" OD x 36, 2.9" L

2шт.

23

218-574

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Fem Br

- service, charging (On Land) (All Btm.)

1шт.

24

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

UNION - tube (On Land) (All Btm.)

1шт.

T52653

TAPE - sealer (All Btm.)

1шт.
