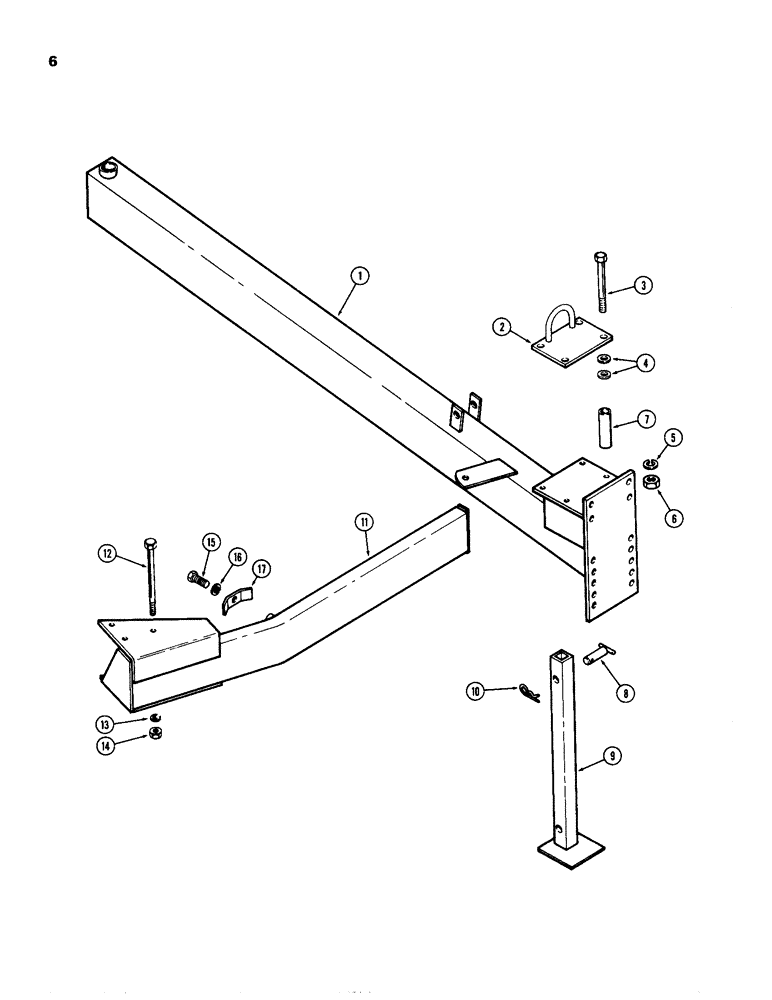

Запчасти Case IH 8300-SERIES (06) - HITCH TONGUE, IN FURROW

1

T52526

TONGUE - hitch (Qty: 4 & 5 Btm.-1)

1шт.

1

T52536

POLE

TONGUE - hitch (Qty: 6, 7 & 8 Btm.-1)

1шт.

2

T52528

CLAMP

AND GUIDE ASSY (All Btm.)

1шт.

3

115-513

BOLT - 5/8" x 8" N.C. hex., Z.P. (All Btm.)

4шт.

4

195-541

WASHER,5/8", SAE

- plain, 5/8" Z.P. (All Btm.)

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (All Btm.) 5/8"

4шт.

6

129-107

NUT,5/8"-11, G5

(All Btm.) 5/8"-11, G5

4шт.

7

T52431

SUPPORT - clamp (All Btm.)

4шт.

8

T53836

PIN - (Replaces T51058 inter.) (All Btm.)

1шт.

9

T52428

STAND - hold-up (All Btm.)

1шт.

10

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (All Btm.)

1шт.

11

T52530

BRACE - hitch (Qty: 4 & 5 Btm.-1)

1шт.

11

T52534

BRACE

- hitch (Qty: 6, 7 & 8 Btm.-1)

1шт.

12

115-512

BOLT

- 5/8" X 10" N.C. hex., Z.P. (All Btm.)

3шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (All Btm.) 5/8"

3шт.

14

129-107

NUT,5/8"-11, G5

(All Btm.) 5/8"-11, G5

3шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(All Btm.) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (All Btm.) 3/8"

1шт.

17

D40236

CLAMP

PLATE - clamp (All Btm.)

1шт.
