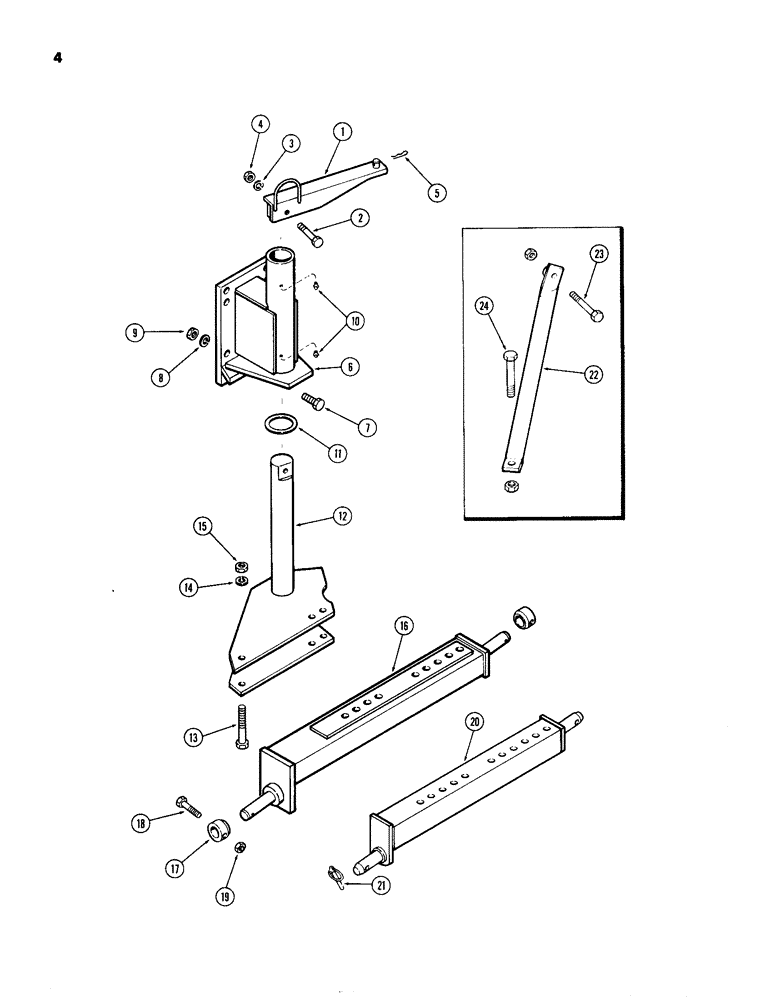

Запчасти Case IH 8300-SERIES (04) - HITCH AND DRAWBAR, IN FURROW

1

T52445

ARM

- steering

1шт.

2

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. HEX., Z.P.

1шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

129-107

NUT,5/8"-11, G5

1шт.

5

B17308

CLIP

COTTER - hairpin

1шт.

6

T52432

POST

- hitch

1шт.

7

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" N.C. hex, Z.P.

6шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

9

129-108

NUT,3/4"-10, G5

6шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

11

T16391

WASHER

1шт.

12

T53484

PIVOT - hitch (Repl. T52439 inter.)

1шт.

13

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex., Z.P.

3шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

15

129-108

NUT,3/4"-10, G5

3шт.

16

T53502

DRAWBAR

- Category III (Repl. T52399 inter)

1шт.

17

T53784

COLLAR

- (Repl., T32862 inter.)

2шт.

18

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

19

131-590

LOCK NUT

NUT - LOCK, 3/8" N.C. hex. Z.P.

2шт.

20

T52590

DRAWBAR

- Category II

1шт.

21

A33509

PIN,11.18mm OD

- keeper

2шт.

22

T53763

BRACE ASSY

1шт.

23

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex., Z.P.

1шт.

129-107

NUT,5/8"-11, G5

1шт.

24

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

129-108

NUT,3/4"-10, G5

1шт.
