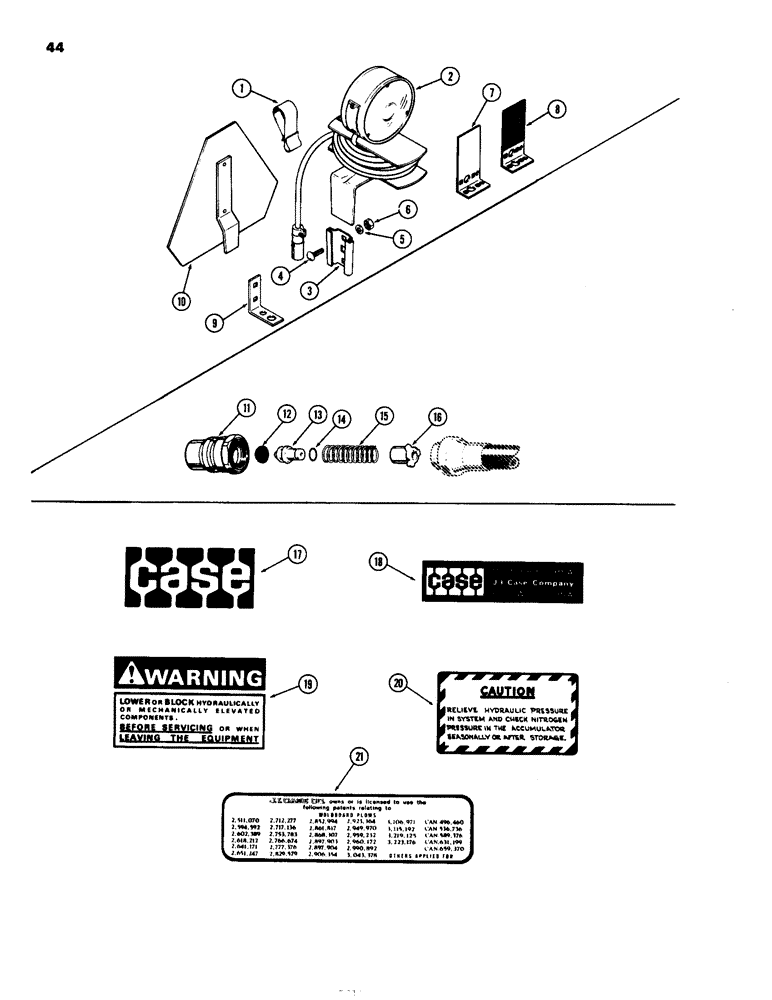

Запчасти Case IH 8300-SERIES (44) - WARNING LAMP-REFLECTORS AND SLOW MOVING VEHICLE EMBLEM

1

T13785

CLIP - cable, warning lamp

2шт.

2

A11066

WARNING LAMP ATTACHMENT - 6 volt with extra 12 volt bulb (Machinery Item)

1шт.

3

A8179

SOCKET

1шт.

4

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" cge., Z.P.

2шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

T62687

REFLECTOR

- red and amber

1шт.

8

T60873

REFLECTOR - red

1шт.

9

T51749

BRACKET

- SMV Emblem

1шт.

10

A59450

WARNING SIGN

EMBLEM - SMV

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING - breakaway, male

4шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

11

A27356

PIPE FITTING

BODY - male plug coupling BREAK-AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

12

A33964

SEAL

- piston BREAK-AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

13

A27508

PISTON

- coupling plug BREAK AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

14

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve BREAK-AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

15

A27351

SPRING

- piston BREAK-AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

16

51200858

SLEEVE

- coupling plug piston BREAK AWAY COUPLING

1шт.

Part of Break-away Coupling Repair Kit, P/N A40459

1шт.

A40459

KIT

BREAK-AWAY COUPLING REPAIR KIT, Includes: Ref. 11, 12, 13, 14, 15, 16 and P/N A28541

1шт.

17

321-2675

DECAL

- Case

1шт.

18

321-2712

DECAL - Address

1шт.

19

321-3042

DECAL

- Warning(replaces 321-2112)

1шт.

Replaced 321-2112 (not a sub)

1шт.

20

321-1750

DECAL - Caution, Accumulator

1шт.

21

321-658

DECAL - Patent

1шт.
