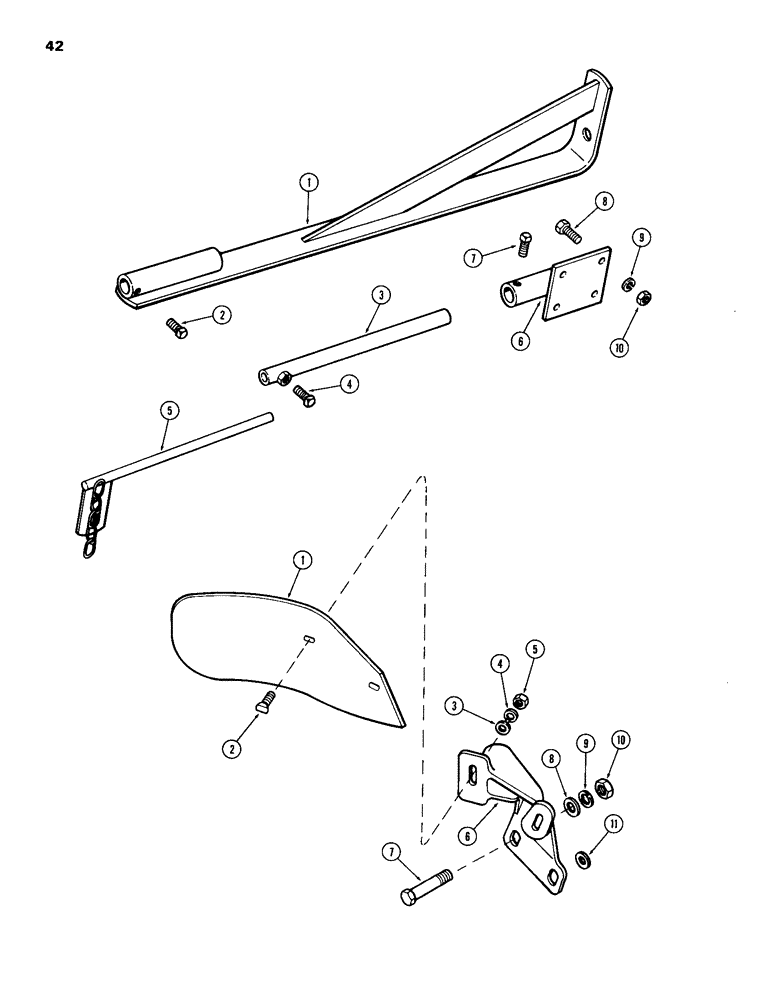

Запчасти Case IH 8300-SERIES (42) - FURROW MAKER GUAGE

1

T37628

BRACKET - furrow marker (For 970 thru 1370 Tractors)

1шт.

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

2

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SETSCREW - 3/8" x 1/2" N.C. C.P., Z.P.

1шт.

3

T34614

EXTENSION - marker

1шт.

4

181-811

SETSCREW - 3/8" X 3/4" N.C.C.P., Z.P.

1шт.

5

T34616

CLIP AND CHAIN ASSY

1шт.

6

T34611

BRACKET - furrow marker (For 1470 and 2470 Tractors)

1шт.

7

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

SETSCREW - 3/8" x 1/2" N.C.C.P., Z.P.

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

195-103

WASHER,5/16"

- 7/8" x 3/8" x 14 ga., Z.P.

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

1

T52669

BLADE

- trashboard, R.H.

1шт.

2

T63019

BOLT

BOLT - clipped hd., 3/8" x 1-1/8", gr. 8 (Box of 25)

2шт.

3

195-2034

WASHER,7/16" x 1 1/4" x .134"

- 1-1/4" x 7/16" x 10 ga.

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

6

T2220

SUPPORT

- trashboard, R.H.

1шт.

7

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex., gr. 5

1шт.

8

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

25-1010

NUT,5/8"-11, G5

1шт.

11

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga.

1шт.
