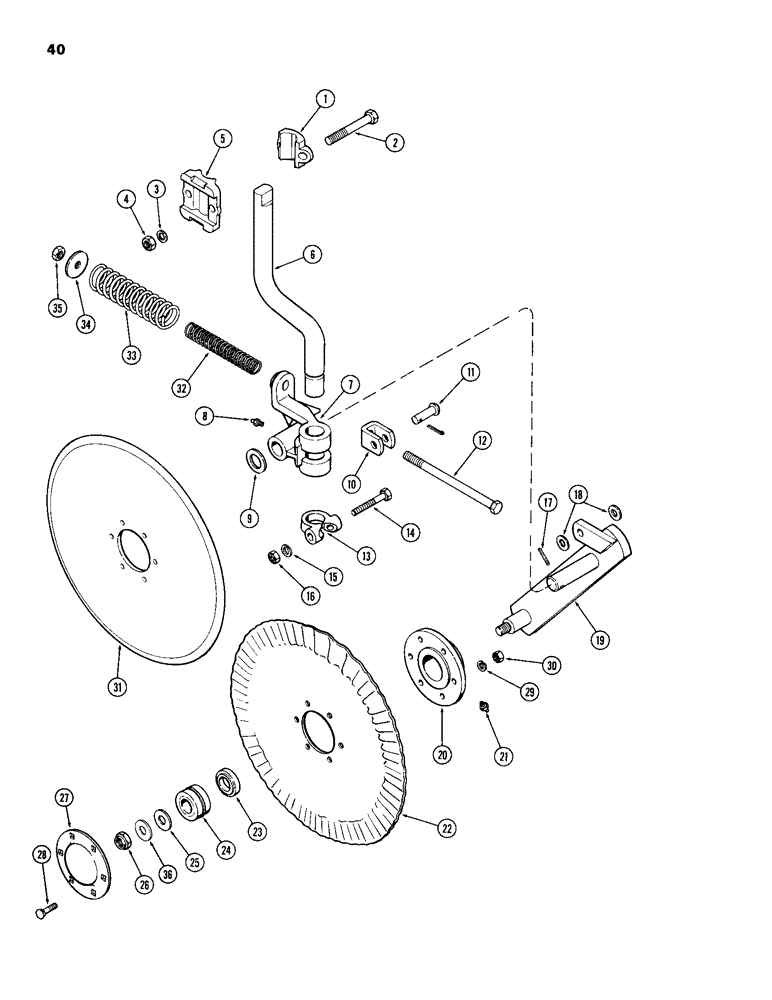

Запчасти Case IH 8300-SERIES (40) - CANTILEVER COULTER, SPRING
№
Артикул
Название
Примечание
Количество
1
T17137
CAP
- coulter clamp
1шт.
2
13-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5
- 5/8" x 4-1/2" N.C. hex.
2шт.
3
195-2074
WASHER,11/16" x 1 1/4" x .134"
- 1-1/4" x 11/16" x 10 ga.
2шт.
4
25-1010
NUT,5/8"-11, G5
2шт.
5
T50250
CLAMP
- coulter
1шт.
6
T52657
STANDARD - coulter
1шт.
7
T2218
SUPPORT - pivot
1шт.
8
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
9
195-2125
WASHER,1 5/16" x 2" x .109"
- 2" x 1-5/16" x 12 ga.
1шт.
10
T52658
CLEVIS - spring
1шт.
11
T52659
PIN - link
1шт.
132-312
COTTER PIN,3/16" x 1 1/4"
PIN, SPLIT (COTTER), 3/16" x 1 1/4"
1шт.
12
115-512
BOLT
- 5/8" x 10" N.C. hex., Z.P.
1шт.
13
W2774
CLAMP
1шт.
14
113-447
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
1шт.
15
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
16
129-105
NUT,Hex, 1/2" - 13, Gr 5
1шт.
17
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
1шт.
18
195-541
WASHER,5/8", SAE
- 1-5/16" x 21/32" x 12 ga., Z.P.
2шт.
19
T52654
ARM ASSY.
1шт.
20
T2216
HUB
- coulter
1шт.
21
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
22
T52451
PLOW DISC
BLADE - 20" fluted
1шт.
23
T52381
SPACER
- bearing
1шт.
24
T52450
BEARING, ROLLER, CYL,1.2508" ID x 2.406" OD x 1.47"
BEARING
1шт.
25
T52382
WASHER
retainer
1шт.
26
131-73
NUT,3/4"-16
NUT - lock, 3/4" N.F. hex., ESNA
1шт.
27
T52383
COVER
- bearing
1шт.
28
111-361
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5
6шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
31
T52662
BLADE
- 20" solid
1шт.
32
T52661
SPRING - inner
1шт.
33
T52660
SPRING - outer
1шт.
34
195-2071
WASHER
- 2" x 21/32" x 1/4"
1шт.
35
131-64
LOCK NUT,5/8"-11, GC
NUT - lock, 5/8" N.C. hex.
1шт.
36
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- 1-3/8" x 25/32 x .180 H.T.
1шт.
Выбрано товаров: 37
