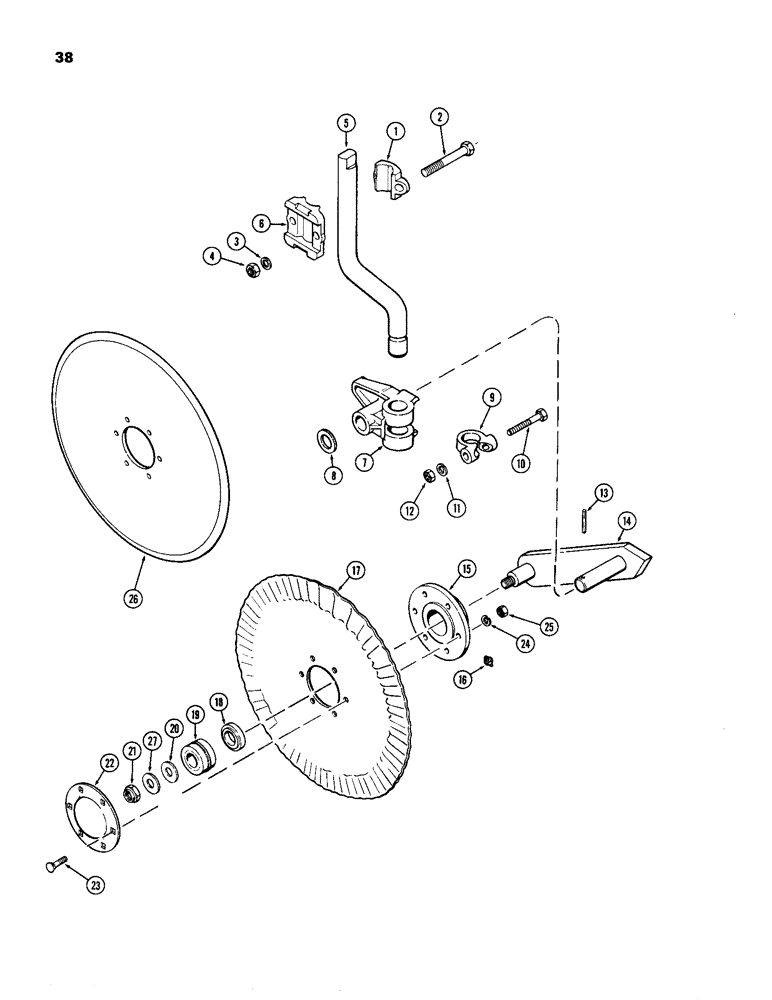

Запчасти Case IH 8300-SERIES (38) - CANTILEVER COULTER, RIGID

1

T17137

CAP

- coulter clamp

1шт.

2

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex.

2шт.

3

195-2074

WASHER,11/16" x 1 1/4" x .134"

- 1-1/4" x 11/16" x 10 ga.

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

T52657

STANDARD - coulter

1шт.

6

T50250

CLAMP

- coulter

1шт.

7

T2219

SUPPORT

- rigid

1шт.

8

195-2125

WASHER,1 5/16" x 2" x .109"

- 2" x 1-5/16" x 12 ga.

1шт.

9

W2774

CLAMP

1шт.

10

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

14

T52377

ARM ASSY

1шт.

15

T2216

HUB

- coulter

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

17

T52451

PLOW DISC

BLADE - 20" fluted

1шт.

18

T52381

SPACER

- bearing

1шт.

19

T52450

BEARING, ROLLER, CYL,1.2508" ID x 2.406" OD x 1.47"

BEARING

1шт.

20

T52382

WASHER

- retainer

1шт.

21

131-73

NUT,3/4"-16

NUT - lock, 3/4" N.F. hex., ESNA

1шт.

REF#21 CAN ALSO USE 131-37 PLAIN OR 131-91 CADUIM PLATED.

1шт.

22

T52383

COVER

- bearing

1шт.

23

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

6шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

26

T52662

BLADE

- 20" solid

1шт.

27

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 1-3/8" x 25/32" x .180 H.T.

1шт.
