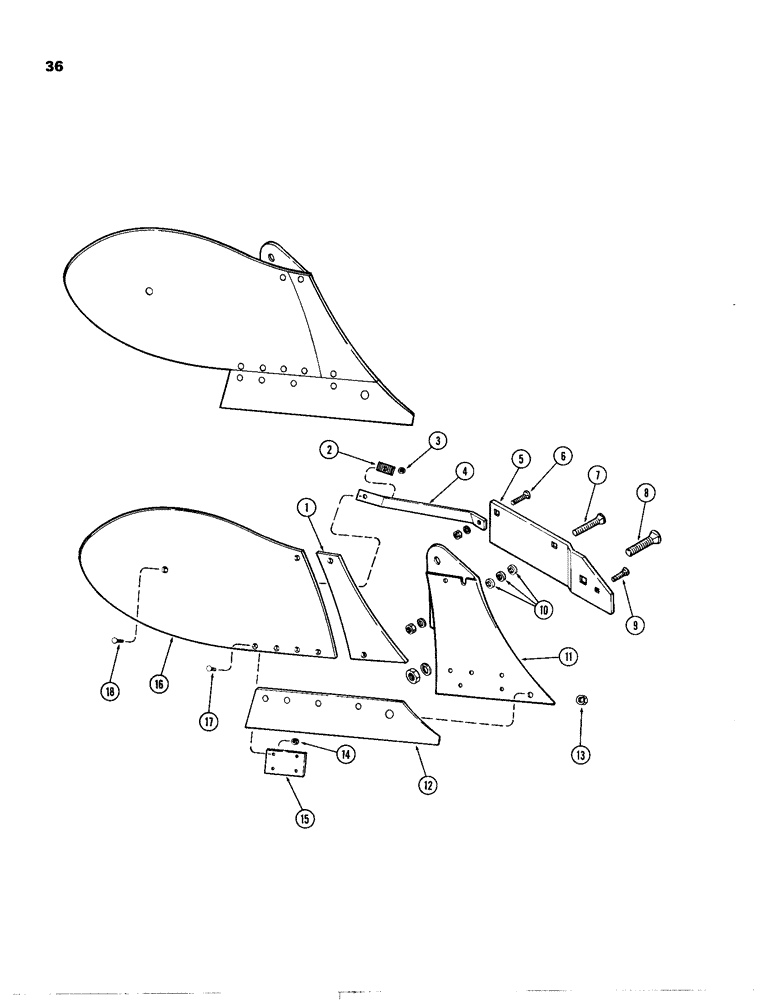

Запчасти Case IH 8300-SERIES (36) - BOTTOM, 18 INCH G.P.

1

T63099

SHIN

PIECE - moldboard

1шт.

T52462

BOLT

- plow, 7/16" x 1-1/4" N.F., P3 Z.P.

3шт.

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex., Z.P.

2шт.

2

T52460

WASHER

- serrated

1шт.

3

195-2048

WASHER

- 1-1/4" x 1/2" x 10 ga., Z.P.

1шт.

4

T52459

BRACE

- moldboard

1шт.

5

T51968

LANDSIDE

- 4" x 1/2" x 14-1/2" (T89712)

1шт.

6

118-217

BOLT

- 7/16" x 1-3/4" #3 Plow, Z.P.

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

129-104

NUT,7/16"-14, G5

1шт.

7

118-321

X

BOLT - plow, 1/2" x 3" P3, gr. 5 Z.P.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

8

118-417

PLOW BOLT,5/8"-11 x 2 3/4", G5

BOLT - plow, 5/8" x 2-3/4" P3, gr. 5 Z.P.

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

9

118-136

PLOW BOLT,3/8"-16 x 1 1/2", G5

BOLT - plow, 3/8" x 1-1/2" P3, Gr. 5 Z.P.

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

3шт.

11

T52461

FROG

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

12

T63097

SHARE

- 18" H.C., w/nuts

1шт.

12

T63132

SHARE

- 18" short, w/nuts

1шт.

NSS

NOT SOLD SEPARAT

SHARE - less nuts

1шт.

T52464

NUT

- 7/16" N.C. hex., L.H., Z.P.

4шт.

13

T52465

NUT

- 1/2" N.C. hex., L.H., Z.P.

1шт.

12

T63133

SHARE

- 18" upset nose, w/nuts

1шт.

NSS

NOT SOLD SEPARAT

SHARE - less nuts

1шт.

13

T52465

NUT

- 1/2" N.C. hex., L.H., Z.P.

5шт.

12

T53153

SHARE

- 18" hard surfaced, less bolts

1шт.

118-220

PLOW BOLT,7/16"-14 x 1 1/4", G5

BOLT - 7/16" x 1-1/4" P3 Gr. 5

4шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

4шт.

118-302

X

BOLT - 1/2" x 1-1/4" P3 Gr. 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

14

195-2048

WASHER

- 1-1/4 x 1/2" x 10 ga., Z.P.

1шт.

15

T52457

COUPLING

-, Serial Range: moldboard-share

1шт.

16

T63098

MOLDBOARD

1шт.

17

T52462

BOLT

- plow, 7/16" X 1-1/4" N.F., P3 Z.P.

5шт.

425-117

NUT,7/16"-20, G5

- 7/16" N.F. hex., Z.P.

5шт.

195-2048

WASHER

- 1-1/4" x 1/2" x 10 ga., Z.P.

1шт.

18

T52463

BOLT

- plow, 7/16" x 1-1/2" N.F., P3 Z.P.

1шт.

131-673

NUT

- lock, 7/16" N.F., Gripco

1шт.
