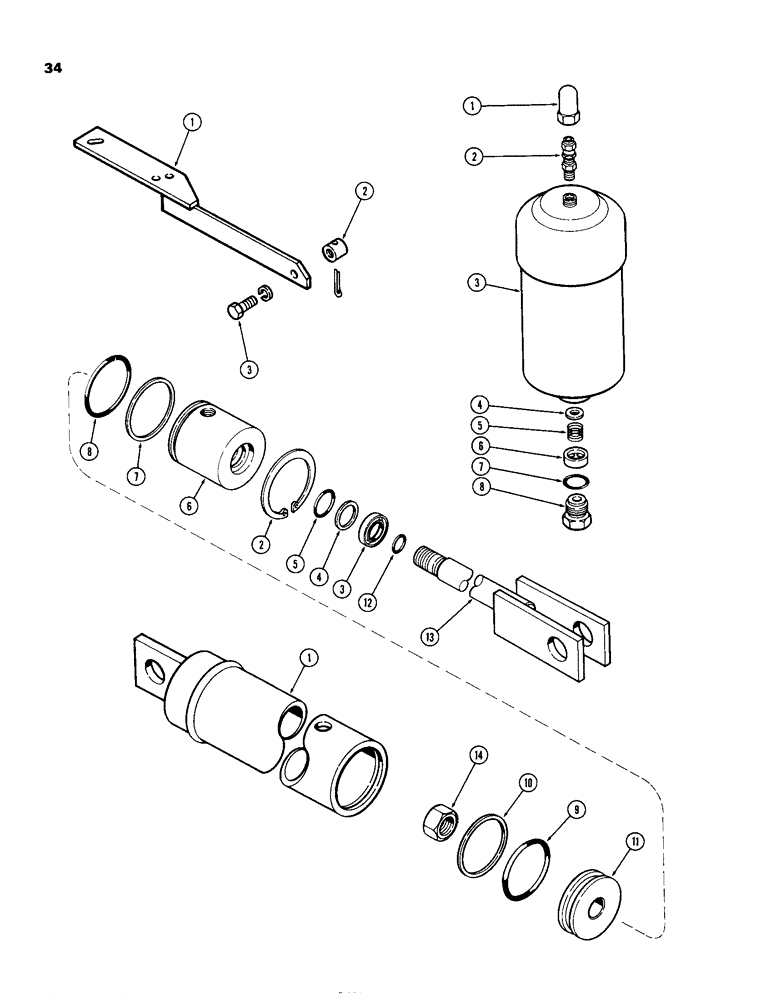

Запчасти Case IH 8300-SERIES (34) - ACCUMULATOR

T38304

ACCUMULATOR - complete

1шт.

1

T38372

GUARD - valve

1шт.

2

T38368

VALVE ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - accumulator

1шт.

4

T38370

WASHER

1шт.

5

T38373

SPRING

1шт.

6

T38369

RESTRUICTOR - flow

1шт.

7

T38371

"O" RING

1шт.

8

T38374

ADAPTER

1шт.

1

T53744

BRACE ASSEMBLY - beam

1шт.

2

T53747

BOSS - beam support

1шт.

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

3

113-602

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

T51518

CYLINDER

- reset, complete

1шт.

1

T38198

TUBE - cylinder 15.36" L

1шт.

2

70742

WASHER

2.50", Int, #250, cylinder tube

1шт.

3

T38234

WIPER SEAL

- wiper

1шт.

4

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

- back-up

1шт.

5

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - piston rod

1шт.

6

T38193

GLAND - cylinder

1шт.

7

T38236

BACK-UP RING

RING - back-up

1шт.

8

T38237

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

"O" RING - gland seal

1шт.

9

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

"O" RING - piston gland

1шт.

10

A35810

RING

- back-up

1шт.

11

T38330

GLAND - piston

1шт.

12

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - piston rod

1шт.

13

T51519

ROD - piston

1шт.

14

25-1412

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex.

1шт.

G34894

GASKET KIT

SEAL KIT

1шт.
