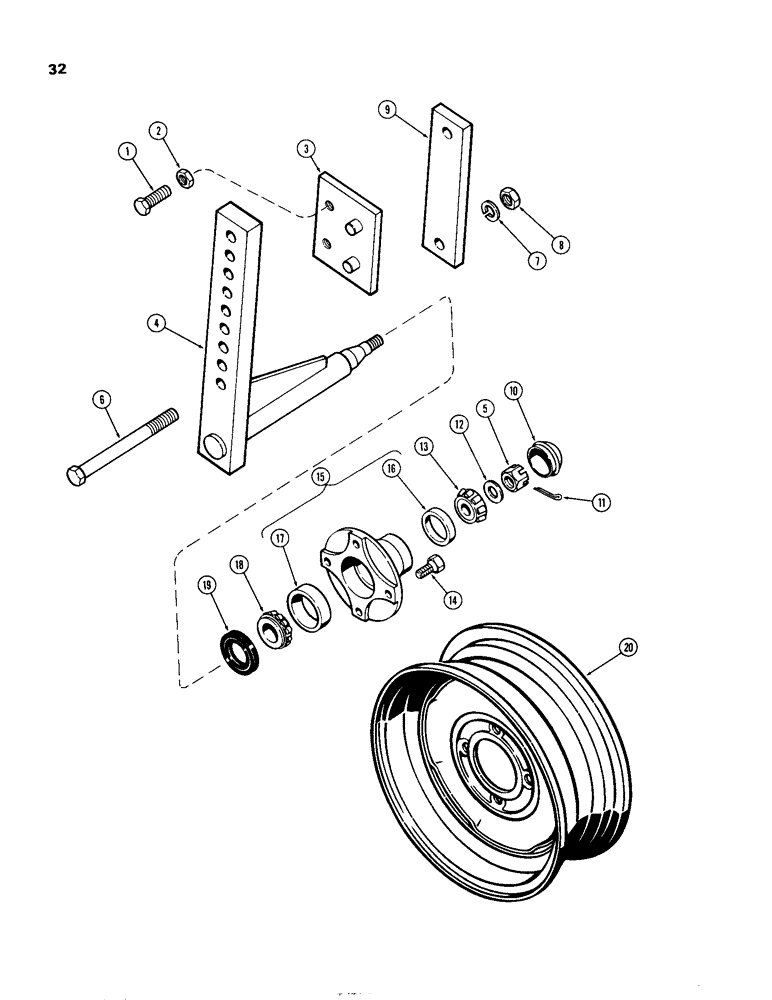

Запчасти Case IH 8300-SERIES (32) - GAUGE WHEEL AND AXLE, FRONT

1

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

2

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C. hex., Z.P.

2шт.

3

T53162

PLATE - angle

1шт.

4

T53158

AXLE

1шт.

5

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., slotted

1шт.

6

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- 3/4" X 8" N.C. hex., Z.P.

2шт.

7

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

129-108

NUT,3/4"-10, G5

2шт.

9

T53165

STRAP - gauge wheel

1шт.

10

T53438

CAP

- hub (Replaces MT2560S inter.)

1шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

12

195-41

WASHER,5/8"

- 1-1/4" x 11/16" x 16 ga.

1шт.

13

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

1шт.

14

A30064

BOLT

- wheel

4шт.

15

F95416

HUB

- with cups

1шт.

16

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

17

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

18

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner

1шт.

19

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease

1шт.

20

T53526

WHEEL

- 15" (Repl. B18157 inter.)

1шт.
