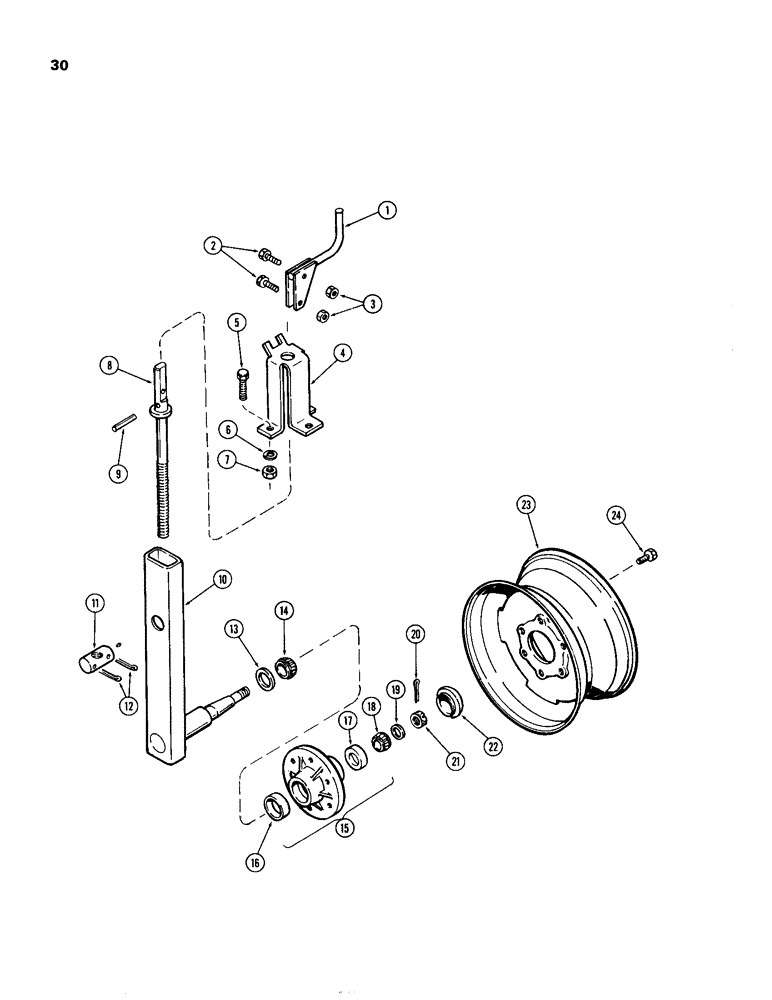

Запчасти Case IH 8300-SERIES (30) - GAUGE WHEEL AND AXLE, REAR

1

T52391

CRANK ASSY

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

3

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. hex., Z.P.

2шт.

4

T52388

SUPPORT ASSY

1шт.

5

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

8

T52386

SCREW ASSY

1шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

1шт.

10

T52384

AXLE

1шт.

11

T52394

TRUNNION

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

13

T39278

SEAL

- grease

1шт.

14

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - bearing, inner

1шт.

15

T28066

HUB

- with cups

1шт.

16

A29977

BEARING CUP

CUP - bearing, inner

1шт.

17

A30318

BEARING, CUP

CUP - bearing, outer

1шт.

18

A30611

ROLLER BEARING

CONE - bearing, outer

1шт.

19

195-2117

WASHER,13/16" x 1 1/2" x .134", HDN

- 1/1/2" x 13/16" x 10 ga., Z.P.

1шт.

20

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

21

86632554

SLOTTED NUT,3/4"-16, G5

NUT - 3/4" N.F. hex., slotted, Z.P.

1шт.

22

G47038

CAP

- hub

1шт.

23

T53528

WHEEL

- 15" (Hi-Flotation) (Repl. T39651 inter.)

1шт.

23

T53527

WHEEL

- 15" (4 & 5 Btm., only) (Repl. V13989 inter.)

1шт.

24

A30064

BOLT

- wheel

6шт.
