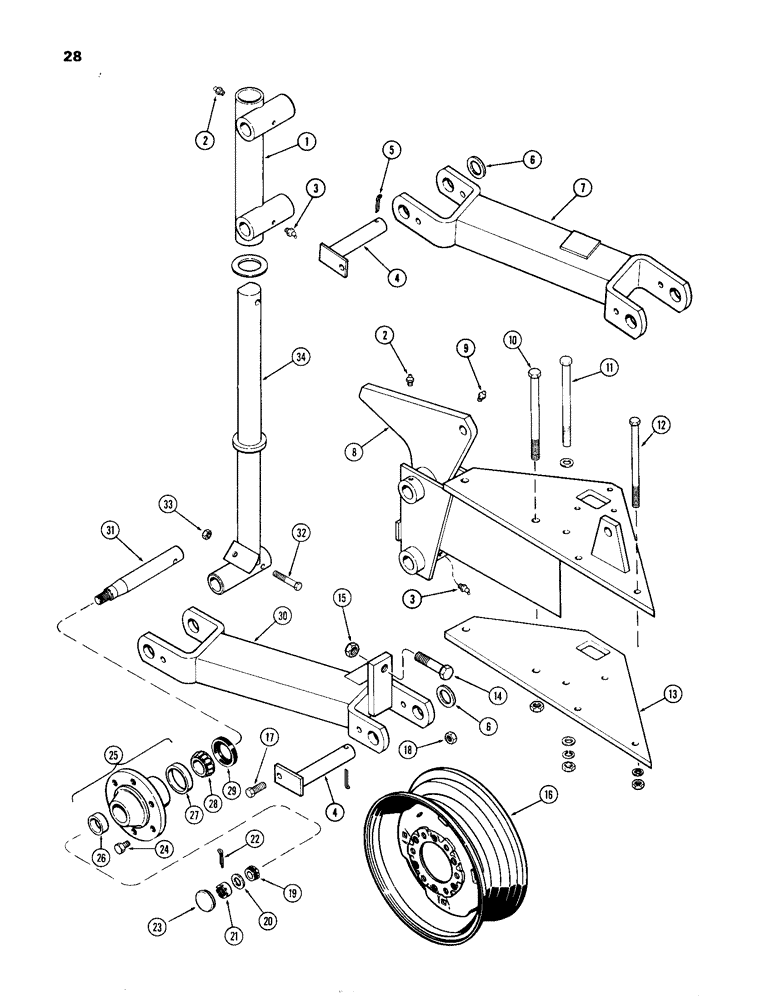

Запчасти Case IH 8300-SERIES (28) - REAR WHEEL AND AXLE

1

T53476

HOUSING - axle, rear (Repl. T52365 inter.)

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

3шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 45deg.

3шт.

4

T52368

PIN - pivot

4шт.

5

132-355

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

4шт.

6

W7055S

WASHER - 2-1/4" x 1-9/16" x 12 ga.

4шт.

7

T52364

ARM - pivot, upper

1шт.

8

T52346

BRACKET - rear wheel

1шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , taper 1/4"-28 NPT x .54" lg

1шт.

10

115-606

BOLT

- 3/4" x 10" N.C. hex., Z.P.

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock, 3/4" N.C. hex., Z.P.

2шт.

REF#10 CAN ALSO USE PART 12-12160.

1шт.

11

115-514

BOLT - 5/8" x 10-1/2" N.C. hex., Z.P.

2шт.

195-108

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga., Z.P.

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

12

115-512

BOLT

- 5/8" x 10" N.C. hex., Z.P.

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

13

T52357

PLATE - support, bottom

1шт.

14

123-702

BOLT,Hex, 3/4"-10 x 3 1/2", G5, Full Thd

- 7/8" x 3-1/2", full thrd., gr. 5, Z.P.

1шт.

15

425-1414

JAM NUT,Jam, 7/8"-9, G5

- jam, 7/8" N.C. hex., Z.P.

1шт.

16

T53528

WHEEL

- 15" (Hi-Flotation) (Repl. T39651 inter.)

1шт.

16

T53527

WHEEL

- 15" (4 & 5 btm. only) (Repl. V13989 inter.)

1шт.

17

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

18

131-1129

LOCK NUT,7/16"-14, GA

NUT - LOCK, 7/16" N.C. hex., Z.P.

4шт.

19

A29976

ROLLER BEARING

CONE - bearing, outer

1шт.

20

195-549

WASHER,7/8", SAE

- 1-3/4" x 15/16" x 10 ga., Z.P.

1шт.

21

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex., slotted, Z.P.

1шт.

22

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

23

T30029

HUB CAP

CAP - hub

1шт.

24

A30064

BOLT

- wheel

6шт.

25

T30011

HUB

- with cups

1шт.

26

A29977

BEARING CUP

CUP - bearing, outer

1шт.

27

40421

BEARING CUP

CUP - bearing, inner

1шт.

28

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner

1шт.

29

T30028

SEAL

- grease

1шт.

30

T52358

ARM - pivot, lower

1шт.

31

T39832

SPINDLE

1шт.

32

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

33

131-70

NUT,1/2"-13, GB

NUT - lock, 1/2" N.C. hex., Z.P.

1шт.

34

T53479

AXLE

- rear (Repl. T52371 inter.)

1шт.

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

- 3-1/2" x 2-5/16" x 10 ga., Z.P.

1шт.
