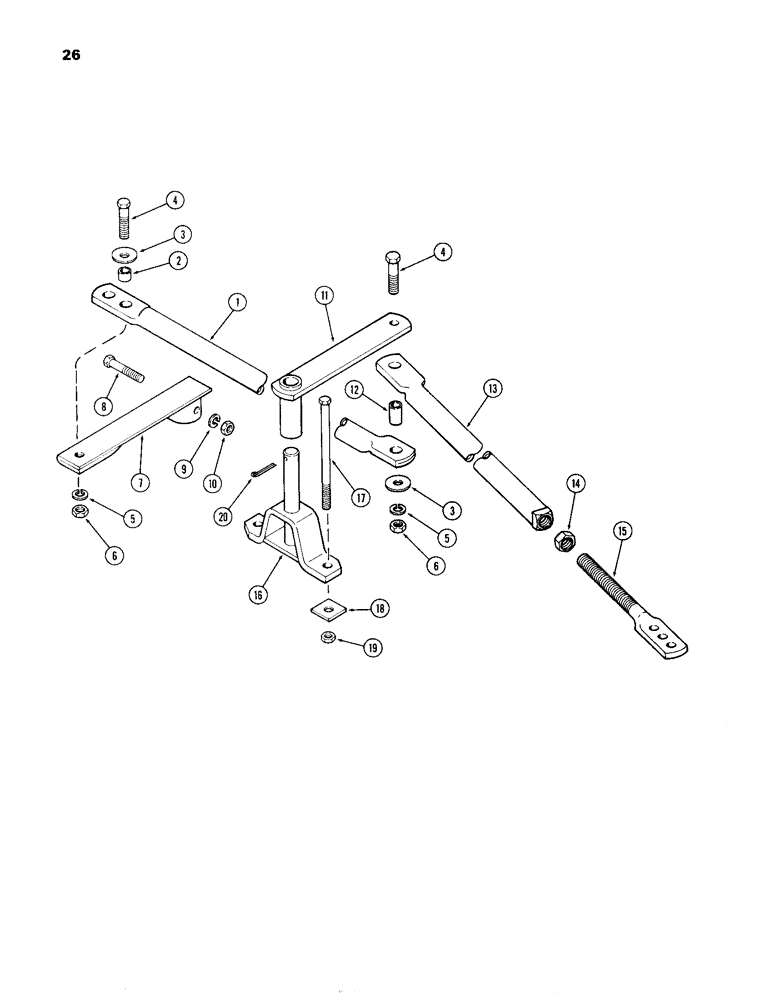

Запчасти Case IH 8300-SERIES (26) - STEERING RODS

1

T52631

ROD

- steering, rear

1шт.

2

T38188

BUSHING

- 1" x 25/32"

1шт.

3

195-109

WASHER,3/4"

- 2" x 13/16" x 9 ga., Z.P.

2шт.

4

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

5

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

T52374

ARM - steering, rear

1шт.

8

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

9

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

129-107

NUT,5/8"-11, G5

1шт.

11

T38180

ARM - center

1шт.

12

T38179

BUSHING

- 1-1/2" x 1"

1шт.

13

T52607

ROD - strg., front (4 Btm. - In Furrow) (97-1/2")

1шт.

13

T52610

ROD - strg., front (5 Btm., - In Furrow) (131-7/8")

1шт.

13

T52613

ROD - strg., front (6 Btm. - In Furrow) (166-7/8")

1шт.

13

T52616

ROD - strg., front (7 Btm. - In Furrow) (202-1/2")

1шт.

13

T52619

ROD - strg., front (8 Btm. - In Furrow) (238-1/2")

1шт.

13

T52622

ROD - strg., front (6 Btm. - On Land) (207-1/2")

1шт.

13

T52625

ROD - strg., front (7 Btm.-On Land) (241-3/4")

1шт.

13

T52628

ROD - strg., front (8 Btm. - On Land) (276")

1шт.

14

129-151

NUT - jam, 1-1/8" N.C. hex., Z.P.

1шт.

NOTE:REF#14 CAN USE PART 25-1418

1шт.

15

T52343

ADJUSTER - steering, front

1шт.

16

T53531

PIVOT - center (Replaces T52337 inter.)

1шт.

17

115-517

BOLT,Hex, 5/8" - 11 x 11", Gr 5

- 5/8" X 11" GR. 8, Z.P.

2шт.

18

T53684

SPACER - center pivot (4, 5, 6 btm., only)

1шт.

19

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

20

132-359

PIN - cotter, 5/16" x 2" Z.P.

1шт.
