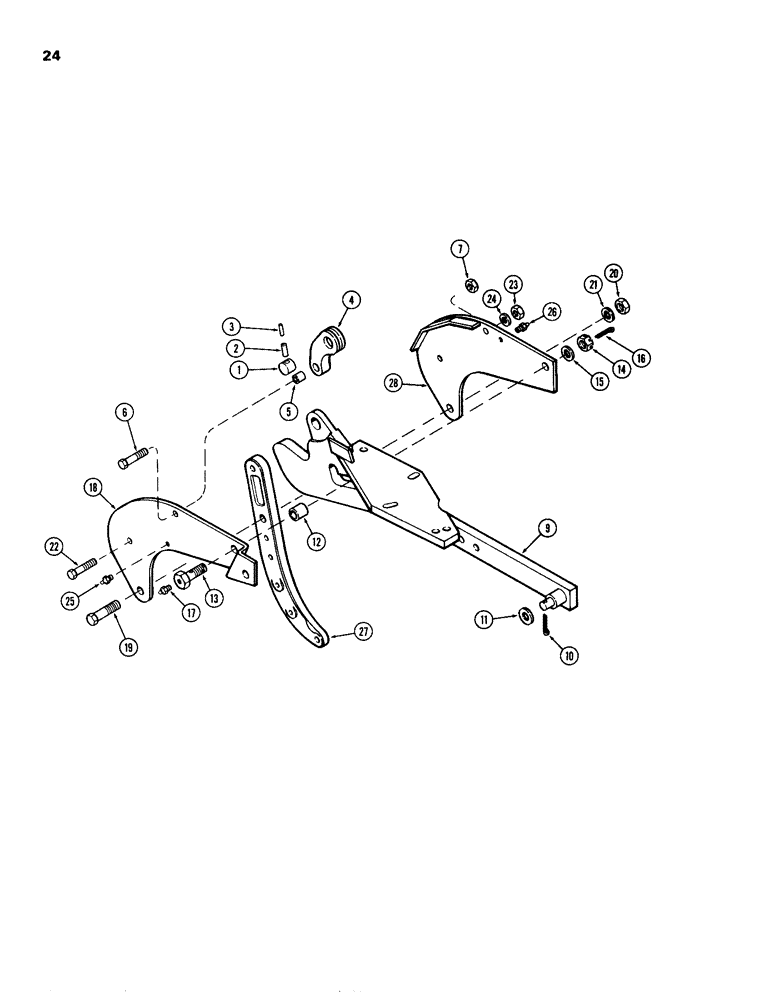

Запчасти Case IH 8300-SERIES (24) - INDIVIDUAL TRIP BEAM

1

T38312

PIN

- pivot, upper

1шт.

2

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

3

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

4

T38290

LINK - pivot, upper

1шт.

5

T38293

BUSHING - pivot, lower

1шт.

6

113-698

BOLT - 5/8" x 3-1/4" w/1" thrd., Z.P.

1шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

9

T52634

BEAM - frame

1шт.

10

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

11

195-553

WASHER,1", SAE

- 2" x 1-1/16" x 10 ga., Z.P.

1шт.

12

T38172

ROLLER

1шт.

13

T52643

BOLT

- pivot, 7/8" drilled, Z.P.

1шт.

14

129-298

NUT - 7/8" N.C. hex., clotted, Z.P.

1шт.

15

195-549

WASHER,7/8", SAE

- 1-3/4" x 15/16" x 9 ga., Z.P.

1шт.

16

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

18

T52642

PLATE - beam, R.H.

1шт.

19

113-786

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- 3/4" x 3-1/2" w/1" thrd., gr. 8, Z.P.

1шт.

20

129-108

NUT,3/4"-10, G5

1шт.

21

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22

113-2404

BOLT - 1/2" x 3-1/4" w/1" thrd., gr. 5, Z.P.

1шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

27

T24256

STANDARD

1шт.

28

T52639

PLATE - beam, L.H.

1шт.
