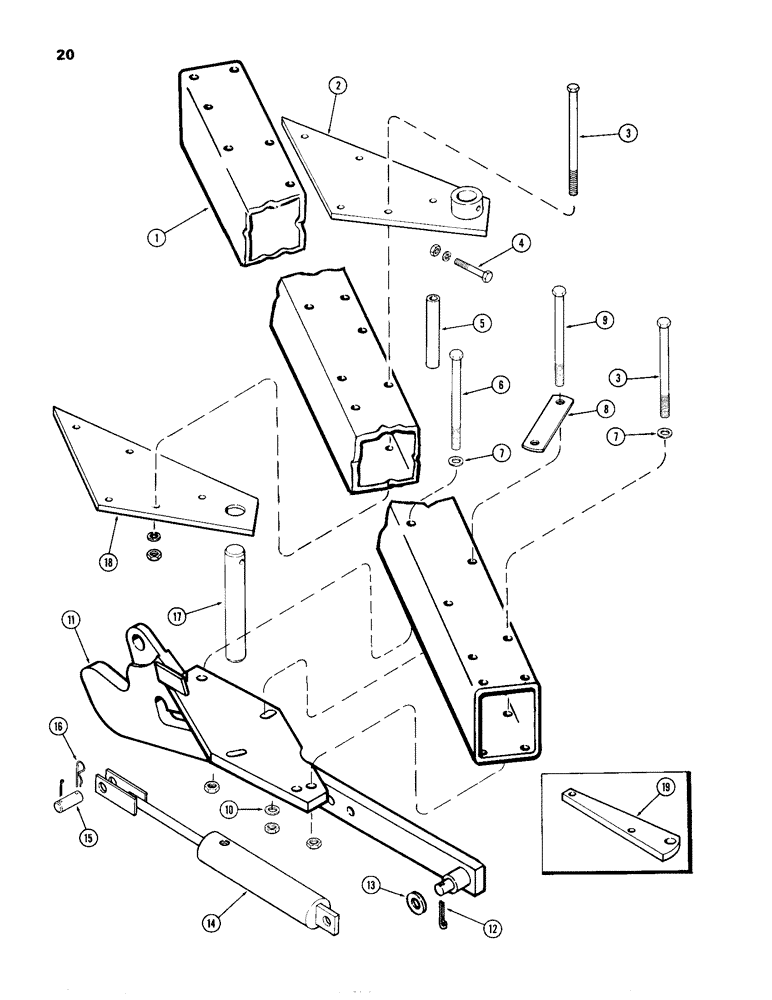

Запчасти Case IH 8300-SERIES (20) - FRAME, FOUR, FIVE AND SIX BOTTOM

1

T52601

TUBE - main (Qty: 4 Btm.-1)

1шт.

1

T52602

TUBE - main (Qty: 5 Btm.-1) 185.18" L

1шт.

1

T52603

TUBE - main (Qty: 6 Btm.-1) 221.8" L

1шт.

2

T52331

PIVOT - top (All Btm.)

1шт.

3

115-512

BOLT

- 5/8" x 10" N.C. hex., Z.P. (Qty: 4 Btm.-10, 5 Btm.-12, 6 Btm.-15)

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, (Qty: 4 Btm.-10, 5 Btm.-12, 6 Btm.-15) 5/8"

1шт.

129-107

NUT,5/8"-11, G5

(Qty: 4 Btm.-10, 5 Btm.-12, 6 Btm.-15) 5/8"-11, G5

1шт.

4

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

(All Btm.) Hex, 1/2"-13 x 3 1/2", G5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (All Btm.) 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(All Btm.) 1/2"-13, G5

1шт.

5

T52606

SUPPORT - pivot plates (Qty: 6 Btm.-1)

1шт.

6

115-514

BOLT - 5/8" X 10-1/2" N.C. hex., Z.P. (All Btm.)

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, (All Btm.) 5/8"-11, GC

1шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - 1-5/16" x 21/32" x 10 ga., H.T., Z.P. (Qty: 4 Btm.-7, 5 Btm.-9, 6 Btm.-11)

1шт.

8

T53685

PLATE - backbone (4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

9

115-517

BOLT,Hex, 5/8" - 11 x 11", Gr 5

- 5/8" x 11" Gr. 8, Z.P. (1st bottom only) (All Btm.)

2шт.

9

115-516

BOLT,Hex, 5/8" - 11 x 10-1/2", Gr 8

- 5/8" X 10-1/2" Gr. 8, Z.P. (other positions) (Qty: 4 Btm.-5, 5 Btm.-7, 6 Btm.-9)

1шт.

10

T53682

WASHER - 1-7/8" x 21/32" x 1/4" Z.P. (Qty: 4 Btm.-7, 5 Btm.-9, 6 Btm.-11)

1шт.

11

T53570

BEAM - frame (Repl. T52634 inter.) (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

12

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm-6) 3/16" x 2"

1шт.

13

195-553

WASHER,1", SAE

- 2" x 1-1/16" x 10 ga., Z.P. (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

14

T51518

CYLINDER

- reset (Qty: 4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

15

T39725

PIN - ram, 1" X 2-1/2" (4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2" (4 Btm.-4, 5 Btm.-5, 6 Btm.-6)

1шт.

16

T20588

PIN, SPLIT (COTTER)

COTTER - hairpin (4 Btm-4, 5 Btm.-5, 6 Btm.-6)

1шт.

17

T52336

PIN - hinge (All Btm.)

1шт.

18

T52334

PIVOT - bottom (All Btm.)

1шт.

19

T52663

ANCHOR - cylinder, side hill (All Btm.)

1шт.
