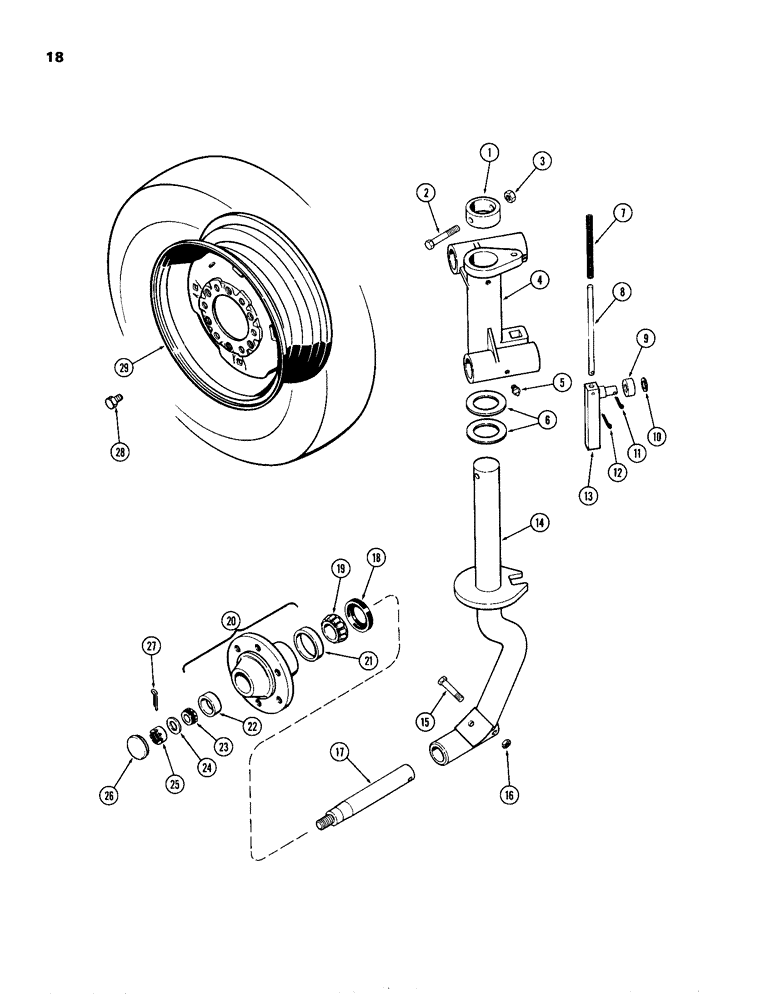

Запчасти Case IH 8300-SERIES (18) - FRONT AXLE AND WHEEL, ON LAND

1

T36833

COLLAR - axle

1шт.

2

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

3

131-165

NUT,1/2"-13, GA

NUT - lock, 1/2" N.C. hex., Z.P.

1шт.

4

T2126

HOUSING - axle

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

4шт.

6

195-2161

WASHER,2 5/16" x 3 1/2" x .134"

- 3-1/2" x 2-5/16" x 10 ga.

2шт.

7

T51439

SPRING

1шт.

8

T37185

ROD - spring

1шт.

9

T51099

ROLLER

1шт.

10

195-541

WASHER,5/8", SAE

- 1-5/16" x 21/32" x 10 ga., Z.P.

1шт.

11

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

12

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

1шт.

13

T37677

PIN

- lock

1шт.

14

T52588

AXLE - front wheel

1шт.

15

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

131-165

NUT,1/2"-13, GA

NUT lock, 1/2" N.C. hex., Z.P.

1шт.

17

T39832

SPINDLE

1шт.

18

T30028

SEAL

- grease

1шт.

19

T20079

ROLLER BEARING,1.625" ID x 3.1496" OD x 1.1802"

CONE - bearing, inner

1шт.

20

T30011

HUB

- with cups

1шт.

21

40421

BEARING CUP

CUP - bearing, inner

1шт.

22

A29977

BEARING CUP

CUP - bearing, outer

1шт.

23

A29976

ROLLER BEARING

CONE - bearing, outer

1шт.

24

195-549

WASHER,7/8", SAE

- 1-3/4" x 15/16" x 10 ga., Z.P.

1шт.

25

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex. slotted, Z.P.

1шт.

26

T30029

HUB CAP

CAP - hub

1шт.

27

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

28

A30064

BOLT

- wheel

6шт.

29

T53528

WHEEL

- 15" (Hi-Flotation) (Repl. t39651 inter.)

1шт.
