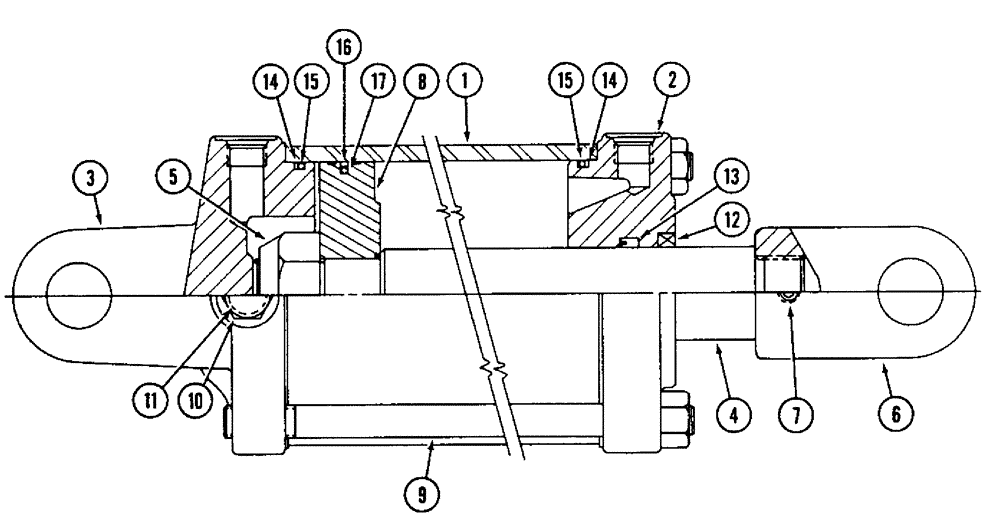

Запчасти Case IH 800 (8-06) - FRONT HYDRAULIC CYLINDER AND CONNECTIONS PLOWS WITH 3/8 INCH I.D. HOSES (08) - HYDRAULICS

1286450C91

CYLINDER

ASSEMBLY - hydraulic, 5 x 8 inch, Inc. REF 1 - 17 (Replaces 388688R95)

1шт.

No longer available, for service order 1343711C1 cylinder assembly

1шт.

1343711C1R

REMAN-HYD CYLINDER

800 CASE IH MOLDBOARD PLOW, ASSEMBLY, hydraulic, Reman for New PN 1286450C91

1шт.

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1286450C91)

1шт.

2

1286380C1

HEAD

- cylinder, front

1шт.

3

1286381C1

HEAD

- cylinder, rear

1шт.

4

1286383C1

ROD

- piston

1шт.

5

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex lock, 1-1/4 inch NF, Grade 8

1шт.

6

1286384C1

CLEVIS,1 -3/8" - 12

- rod end

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

8

1286382C2

PISTON

- cylinder

1шт.

9

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

ROD - cylinder retaining

4шт.

425-1012

NUT,3/4"-10, G5

4шт.

10

214389

PLUG,3/4" - 16 ORB

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING - 4-3/4 x 5 inch

1шт.

16

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 x 4-11/16 inch

1шт.

85125C2

SEAL KIT

KIT - seal and O-ring, Inc. REF 11 - 17

1шт.
