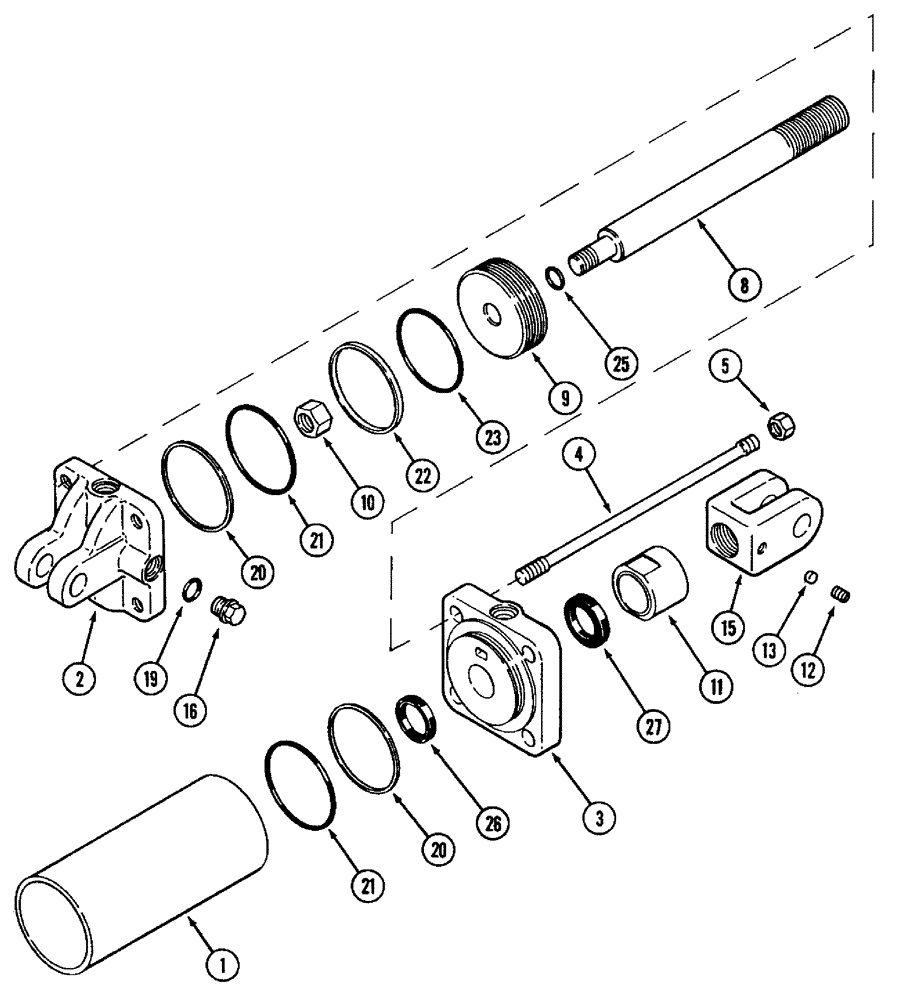

Запчасти Case IH 800 (8-04) - HYDRAULIC CYLINDERS AND CONNECTIONS PLOWS WITH 1/2 INCH I.D. HOSES (08) - HYDRAULICS

1272644C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 4 x 8 inch, Inc. REF 1 - 27 (Replaces 1263474C91 and 403842R94)

1шт.

1

NSS

NOT SOLD SEPARAT

SLEEVE - cylinder

1шт.

2

1272919C1

CYLINDER HEAD

HEAD - rear, cylinder

1шт.

3

386767A1

HEAD

- front, cylinder

1шт.

4

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

8

1282367C1

ROD

- piston

1шт.

9

149930C2

PISTON

- cylinder

1шт.

10

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

11

1282266C1

COLLAR

- stop, adjustable

1шт.

12

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - headless slotted set, 3/8 NC x 3/8 inch

1шт.

13

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

15

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

16

214389

PLUG,3/4" - 16 ORB

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - backup, head seal

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - seal, washer

2шт.

22

NSS

NOT SOLD SEPARAT

RING - seal, piston

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - inner piston

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rod, piston

1шт.

27

NSS

NOT SOLD SEPARAT

WIPER - rod, piston

1шт.

79979C3

SEAL KIT

KIT - seal and O-ring, Inc. REF 19 - 27

1шт.
