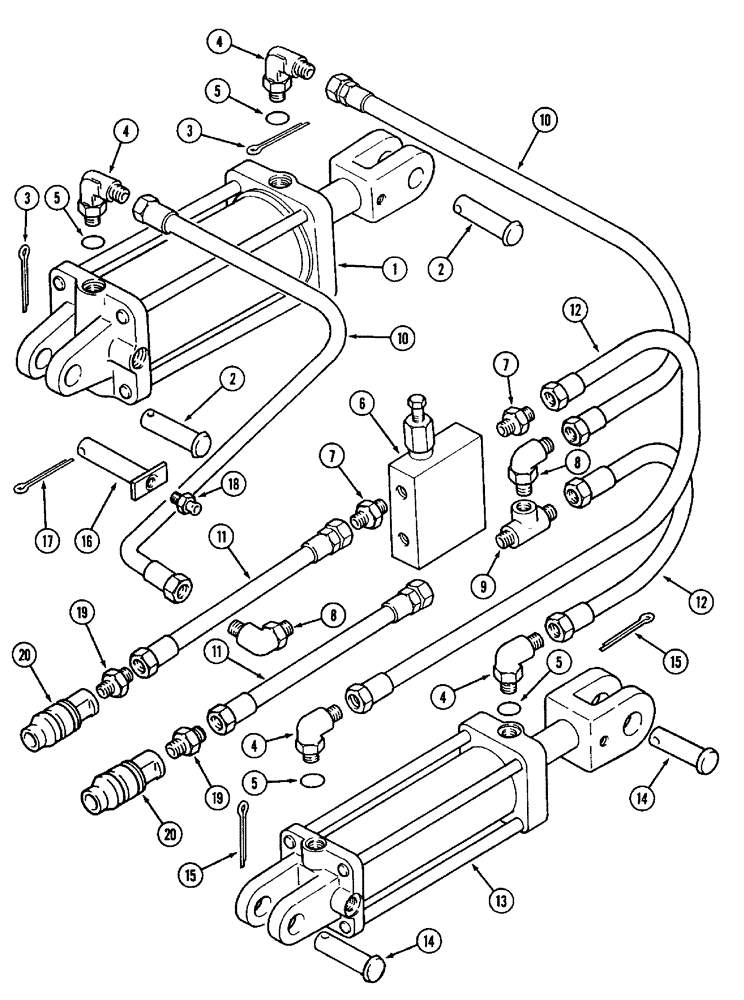

Запчасти Case IH 800 (8-03) - CENTER AND REAR HYDRAULIC CYLINDERS AND CONNECTIONS, PLOWS WITH 3/8 INCH I.D. HOSES (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, center, 5 x 8 inch

1шт.

See Figure 8-05

1шт.

1337411C1

BUSHING

- cylinder

1шт.

2

427-20325

CLEVIS PIN,1 1/4" x 3 1/4"

PIN - headed, 1-1/4 x 3-1/4 inch

2шт.

2

427-20375

CLEVIS PIN,31.75mm OD x 95.25mm L

PIN - headed, 1-1/4 x 3-1/2 inch (14 and 16 furrow)

1шт.

3

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

6

60978C91

VALVE

- hydraulic

1шт.

7

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

8

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

- 90 degree, flared, 1/2 to 3/8 inch

2шт.

9

218-593

TEE,9/16"-18, 37 Degree

- flared, 3/8 inch

1шт.

10

129672C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 39 inch long

2шт.

10

129672C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 39 inch long (14 and 16 furrow)

1шт.

10

1284301C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 45 inch long (14 and 16 furrow)

1шт.

11

1284266C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 305 inch long (9 and 10 furrow)

2шт.

11

1284268C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 340 inch long (11,12,14 and 16 furrow)

2шт.

12

1284254C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 170 inch long (9 furrow)

2шт.

12

1284329C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 205 inch long (10 and 11 furrow)

2шт.

12

1284330C1

HOSE

- hydraulic, 3/8 x 240 inch long (12 furrow)

2шт.

12

1284331C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 310 inch long (14 furrow)

2шт.

12

1284300C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 380 inch long (16 furrow)

2шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - hydraulic, rear, 3-1/2 x 8 inch

1шт.

See Figure 8-07

1шт.

14

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN - cotter, 1/4 x 2 inch

2шт.

16

97750C1

PIN

ASSEMBLY - cylinder pivot (14 and 16 furrow)

1шт.

17

432-2028

COTTER PIN,5/16" x 1 3/4"

Pin, Split (Cotter), (14 and 16 furrow) 5/16" x 1 3/4"

1шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap (In cylinder pivot pin)

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

20

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, poppet type

1шт.

20

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, self sealing type

1шт.

20

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, self sealing type (ISO standard)

1шт.

20

1285718C2

QUICK MALE COUPLING

COUPLER - hose, male, 3/4-14 thread, self sealing type (ISO standard)

1шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
