Запчасти Case IH 800 (8-02) - FRONT HYDRAULIC CYLINDER AND CONNECTIONS, PLOWS WITH 3/8 INCH I.D. HOSES (08) - HYDRAULICS

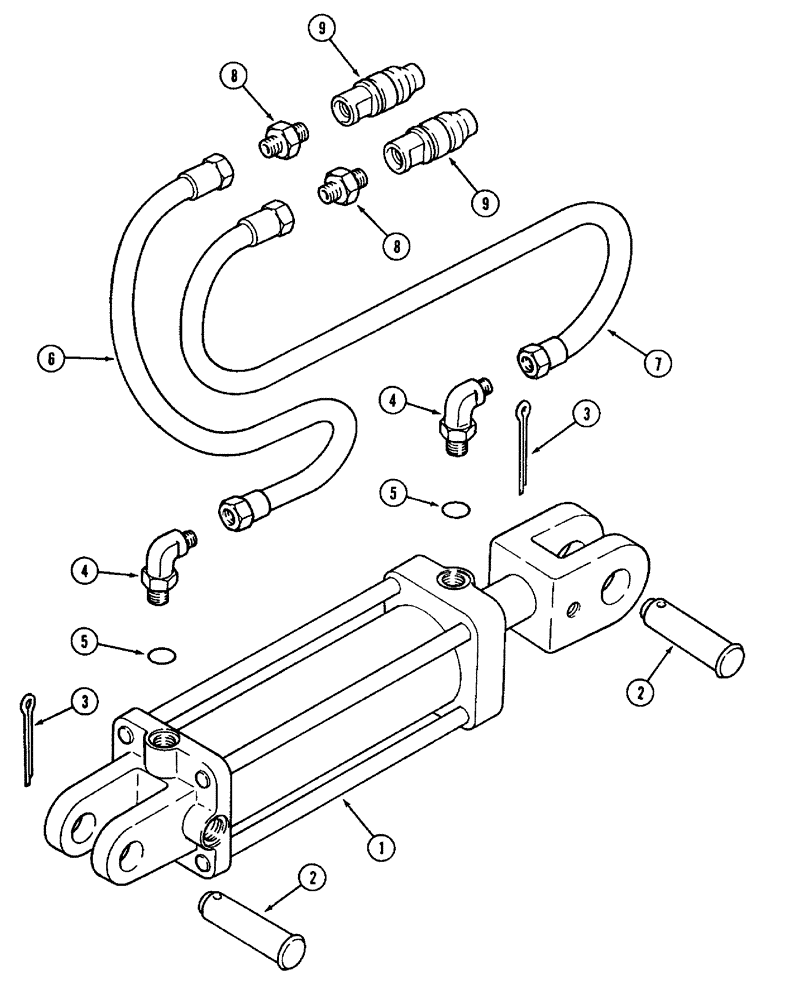

Схема запчастей Case IH 800 - (8-02) - FRONT HYDRAULIC CYLINDER AND CONNECTIONS, PLOWS WITH 3/8 INCH I.D. HOSES (08) - HYDRAULICS
8
5
6
5
4
9
3
7
3
8
2
2
4
1
9

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER - hydraulic, 4 x 8 inch

1шт.

See Figure 8-04

1шт.

2

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - hydraulic, 3/8 x 185 inch long

1шт.

7

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - hydraulic, 3/8 x 175 inch long

1шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, poppet type

1шт.

9

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, self sealing type

1шт.

9

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread, self sealing type (ISO standard)

1шт.

9

1285718C2

QUICK MALE COUPLING

COUPLER - hose, male, 3/4-14 thread, self sealing type (ISO standard)

1шт.

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread (Adapt 3/4-16 fitting to 7/8-14 coupler)

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 x 3/4-16 thread (Adapt 7/8-14 fitting to 3/4-16 coupler)

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.

Выбрано товаров: 18
