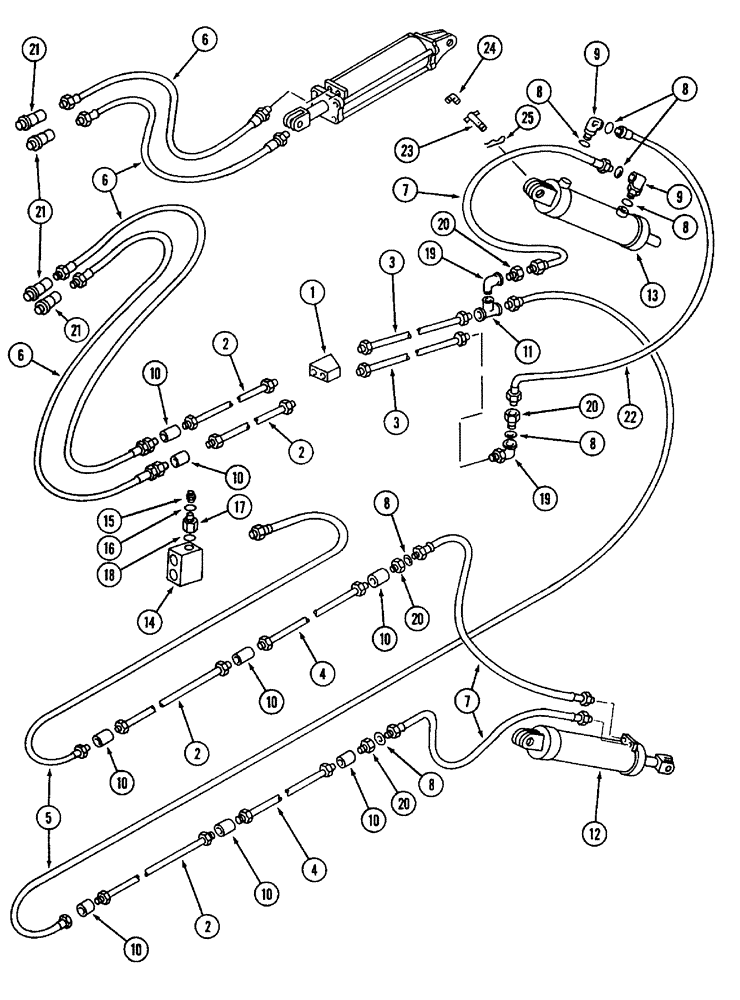

Запчасти Case IH 800 (8-01) - HYDRAULIC CYLINDERS AND CONNECTIONS, PLOWS WITH 1/2 INCH I.D. HOSES (08) - HYDRAULICS

1

61003C1

BLOCK

- manifold

1шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

2

129671C2

HYDRAULIC HOSE

HOSE - 3/8 x 102 inch (Replaces 60982C1)

4шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

3

1251872C2

HYDRAULIC HOSE

HOSE - 3/8 x 24 inch (9 and 10 furrow)(Replaces 60982C2)

2шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

3

1254574C2

HYDRAULIC HOSE

HOSE - 3/8 x 60 inch (11 and 12 furrow)(Replaces 60981C1)

2шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

4

1284338C1

HYDRAULIC HOSE

HOSE - 3/8 x 35 inch (10 and 11 furrow)(Replaces 60980C1)

2шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

4

1284338C1

HYDRAULIC HOSE

HOSE - 3/8 x 35 inch (12 furrow)(Replaces 60980C1)

4шт.

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - flared, 1/2 to 3/8 inch

2шт.

5

955494R91

HOSE ASSY.

HOSE - 30 inch, plow connection

2шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

6

1284304C1

HYDRAULIC HOSE,9.53mm ID x 4445mm L

HOSE - 3/8 x 175 inch (Replaces 478706R91)

4шт.

7

1284338C1

HYDRAULIC HOSE

HOSE - 3/8 x 35 inch (Replaces 526204R91)

4шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

18шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

9

371357R91

ELBOW

- 90 degree, 7/8-14 inch female

2шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

10

187397

COUPLING,1/2" NPT, Fem

- 1/2 inch, straight (9 furrow)

6шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

10

187397

COUPLING,1/2" NPT, Fem

- 1/2 inch, straight (10 and 11 furrow)

8шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

10

187397

COUPLING,1/2" NPT, Fem

- 1/2 inch, straight (12 furrow)

10шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

11

138105

TEE,1/2" NPT, Fem

COUPLING - tee, 1/2 inch

1шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

12

1272644C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, front and rear

2шт.

See Figure 8-04

1шт.

1337411C1

BUSHING

- cylinder

4шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

4шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

13

1286450C91

CYLINDER

ASSEMBLY - hydraulic, center

1шт.

See Figure 8-06

1шт.

No longer available, for service order 1343711C1 cylinder assembly

1шт.

13

1343711C1R

REMAN-HYD CYLINDER

800 CASE IH MOLDBOARD PLOW, ASSEMBLY hydraulic, center, Reman for New PN 1286450C91

1шт.

13

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

13

1343711C1

CYLINDER,Double Acting, 44.45mm Rod, 203.2mm Stroke

ASSEMBLY - hydraulic, center

1шт.

See Figure 8-05

1шт.

13

1343711C1R

REMAN-HYD CYLINDER

800 CASE IH MOLDBOARD PLOW, ASSY, hydraulic, center

1шт.

13

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1337411C1

BUSHING

- cylinder

1шт.

28403C1

PIN

- headed, 1-1/4 x 3-1/4 inch

1шт.

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

14

60978C91

VALVE

- hydraulic, Inc. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON - adjustment valve

1шт.

Order Valve Assembly

1шт.

16

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- 7/16 inch OD

1шт.

17

NSS

NOT SOLD SEPARAT

CAP - adjustment valve

1шт.

Order Valve Assembly

1шт.

80280199

SCREW

- hex, 5/16-24 x 1-1/4 inch

1шт.

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree, 1/2 inch

2шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

20

461183R1

ADAPTER,1/2" - 14 ORB x 7/8" - 14 ORB

ADAPTER - straight thread to male pipe

6шт.

For use with displaced parts shown at reference numbers 2, 3, 4, 6, 7, 12 and 13.

1шт.

21

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type

4шт.

22

664580R91

HOSE

- 42 inch (14 and 16 furrow)

1шт.

23

97750C1

PIN

ASSEMBLY - non rotating (14 and 16 furrow)

1шт.

515030R1

CLAMP

- hose

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4" (14 and 16 furrow)

1шт.

25

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch diameter (14 and 16 furrow)

1шт.
