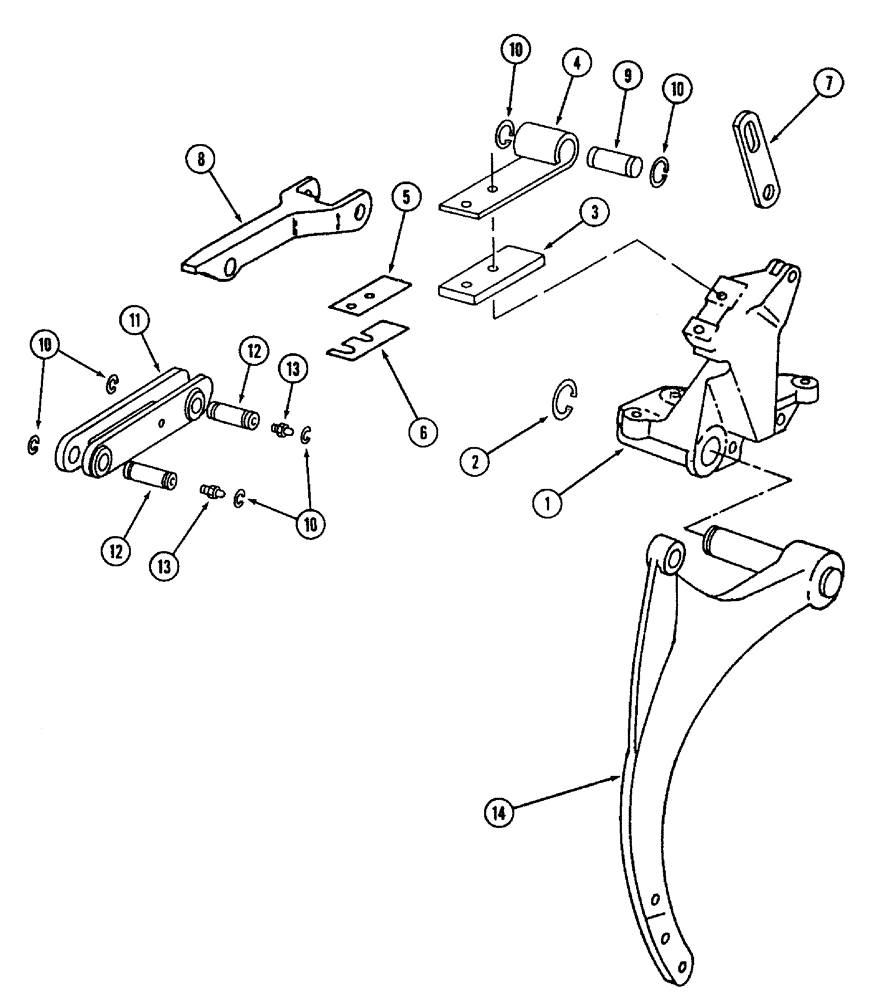

Запчасти Case IH 800 (9-13) - TOGGLE TRIP BEAM UNIT, MACHINES WITH ONE PIECE MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

123000C1

BRACKET

- toggle trip mounting

1шт.

2

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

3

62431C1

LARGE PLATE

BAR - spring

1шт.

4

62432C1

SPRING

- toggle trip

1шт.

5

112460C1

SPACER

1шт.

6

112459C2

SHIM

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.

7

122999C1

BAR

- restrictor

1шт.

439-51232

HEADED PIN,3/4" x 2"

PIN - clevis, 3/4 x 2 inch

1шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

8

61911C4

LINK

- front toggle

1шт.

9

62430C1

PIN

- front toggle

1шт.

10

100-1698

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

6шт.

11

131918C1

LINK

- rear toggle

1шт.

12

131948C2

PIN

- toggle pivot

2шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

14

122965C2

BEAM

ASSEMBLY - toggle trip

1шт.
