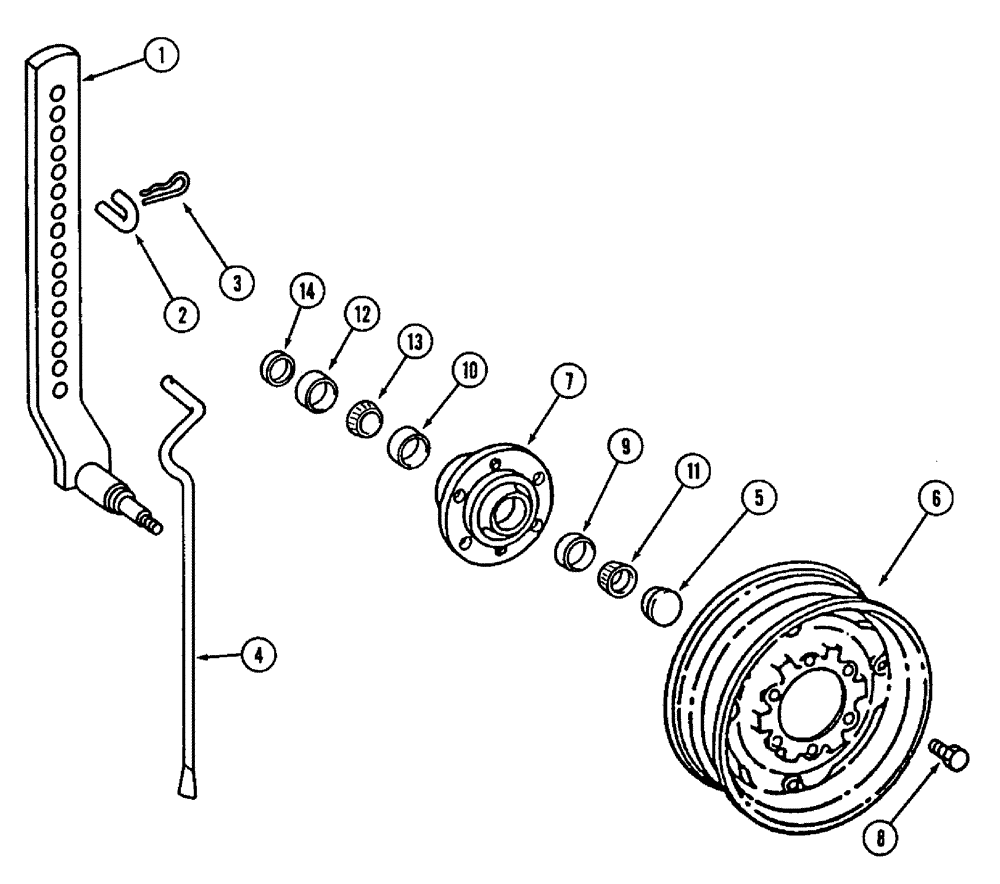

Запчасти Case IH 800 (9-10) - GAUGE WHEEL (09) - CHASSIS/ATTACHMENTS

1

484996R4

SUPPORT ASSY.

STANDARD ASSEMBLY - gauge wheel, Inc. washer and nut

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1/4 x 1/8 inch

1шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

520620R1

AXLE PIN

PIN - standard retaining

1шт.

3

1978738C1

HAIR PIN COTTER

1шт.

4

490680R1

ROD

BAR - gauge wheel

1шт.

1978738C1

HAIR PIN COTTER

1шт.

5

663908R1

CAP

- wheel hub

1шт.

6

481344R91

WHEEL

- steel, 14 inch

1шт.

810768C1

VALVE

- tubeless tire, steel

1шт.

7

465493R2

HUB

- wheel, 6 bolt

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

9

371883R1

BEARING CUP

Outer

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

12

667564R2

SLEEVE

- oil seal wear

1шт.

13

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, inner

1шт.

14

667599R92

SEAL

- oil

1шт.
