Запчасти Case IH 800 (9-09) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

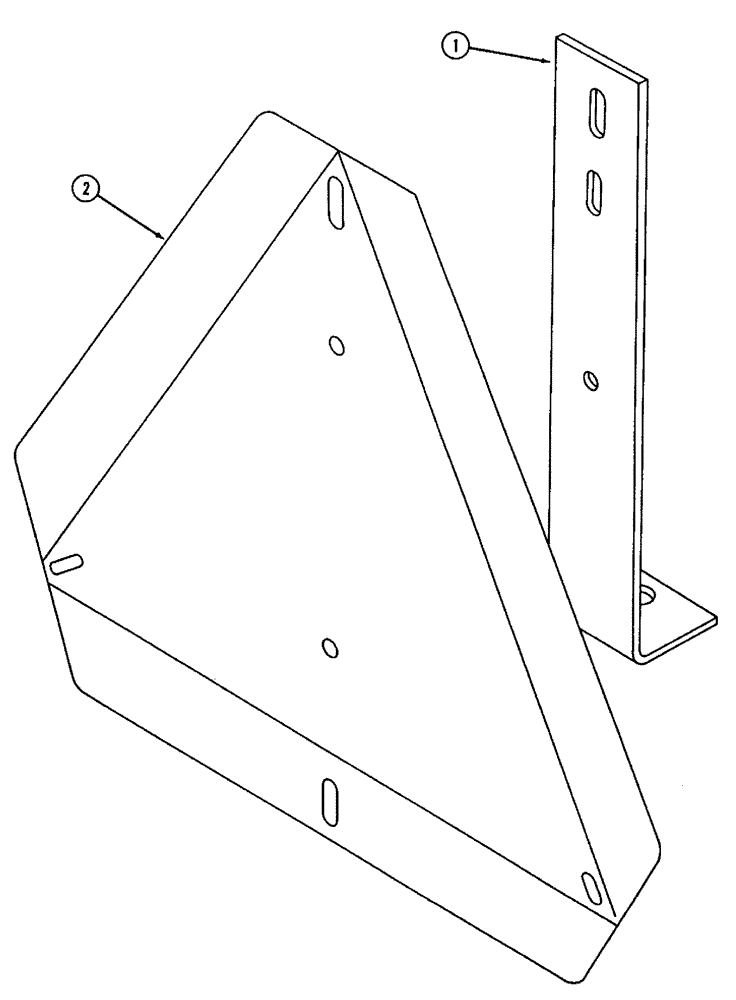

Схема запчастей Case IH 800 - (9-09) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
1
2

Артикул

Название

Примечание

Количество

1

131946C1

SUPPORT

BRACKET - slow moving vehicle

1шт.

2

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- round head, No. 10-32 x 1/2 inch

2шт.

495-31022

WASHER,#10

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

225-14210

NUT,#10-32

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

Выбрано товаров: 8
