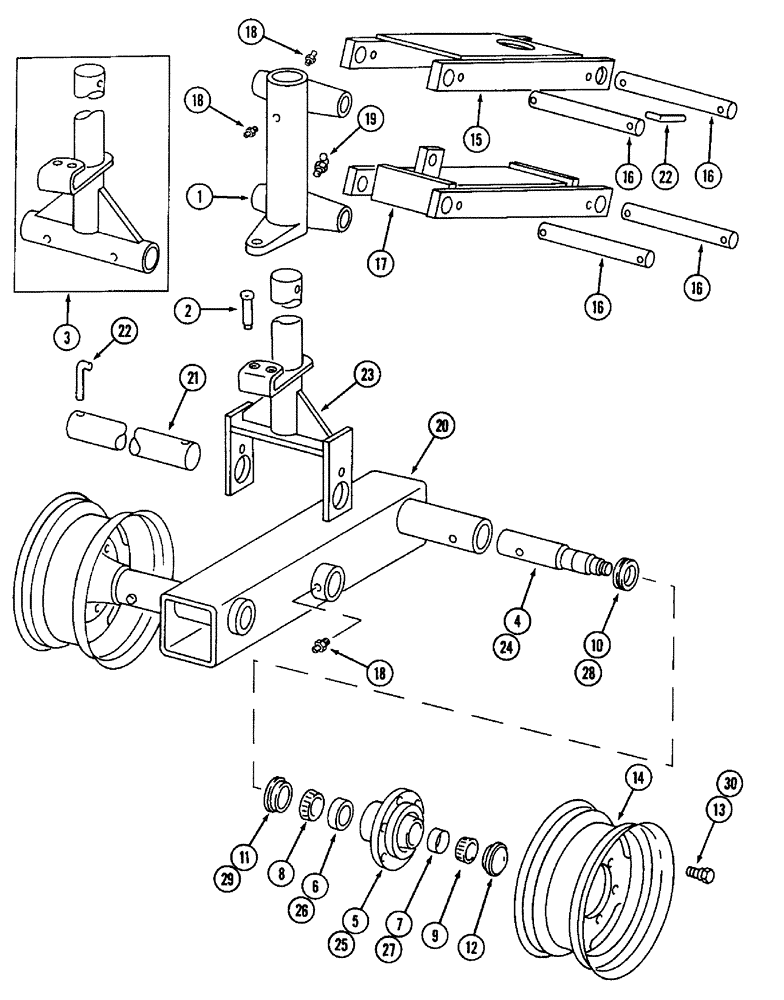

Запчасти Case IH 800 (9-06) - LAND WHEEL, FOR 9, 10, 11 AND 12 FURROW (09) - CHASSIS/ATTACHMENTS

1

61017C1

HOUSING

- dual wheel

1шт.

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

- flat, 1-17/32 x 2-1/4 x 3/32 inch

2шт.

2

486762R1

PIN

- lockout

1шт.

1978738C1

HAIR PIN COTTER

1шт.

3

61019C2

POST

ASSEMBLY - wheel (Rigid dual wheels)

1шт.

495-81232

WASHER,2.53" ID x 3.25" OD x 0.07" Thk

- flat, 2-17/32 x 3-1/4 x 3/64 inch

1шт.

432-3248

COTTER PIN,1/2" x 3"

Pin, Split (Cotter), 1/2" x 3"

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (9 and 10 furrow)

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (11 and 12 furrow)

2шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

101100C92

HUB

PACKAGE - hub and spindle (Early production)

1шт.

No Longer Available, Order Components

1шт.

131780C91

KIT

PACKAGE - hub and spindle, Inc. 4 - 13 (11 and 12 furrow bogie wheels)

1шт.

No Longer Available, Order Components

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (Early production)

2шт.

4

131626C1

STEERING KNUCKLE

SPINDLE - wheel (Early production)

1шт.

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

87673

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

4

131779C1

SPINDLE

- wheel (11 and 12 furrow bogie wheels)

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

- flat, 1-1/32 x 2-1/4 x 1/4 inch

1шт.

425-1316

NUT,1"-14, G5

NUT - hex slotted, 1 inch NF

1шт.

87673

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

5

465496R1

HUB

- 6 bolt (Early production) Also Order 663558R1 and 651817R1

1шт.

5

169293C11

HUB

ASSEMBLY - 8 bolt, Inc. 6, 7, 11, 13 and 14 (11 and 12 furrow bogie wheels)

1шт.

6

663558R1

BEARING CUP

CUP - bearing, inner (Early production)

1шт.

6

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, inner (11 and 12 furrow bogie wheels)

1шт.

7

651817R1

BEARING CUP

CUP - bearing, outer (Early production)

1шт.

7

663558R1

BEARING CUP

CUP - bearing, outer (11 and 12 furrow bogie wheels)

1шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, inner (Early production)

1шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner (11 and 12 furrow bogie wheels)

1шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer (Early production)

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - bearing, outer (11 and 12 furrow bogie wheels)

1шт.

10

654674R91

OIL SEAL

- hub oil (Early production)

1шт.

10

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

- hub oil (11 and 12 furrow bogie wheels)

1шт.

11

654675R1

RING

- oil seal (Early production)

1шт.

11

169328C1

SLEEVE

RING - oil seal (11 and 12 furrow bogie wheels)

1шт.

12

224066C1

HUB CAP

CAP - wheel hub (Early production)

1шт.

12

86900188

CAP

- wheel hub (11 and 12 furrow bogie wheels)

1шт.

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

13

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch (Early production)

6шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

6шт.

13

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

- wheel, 5/8 inch (11 and 12 furrow bogie wheels)

8шт.

554480R1

WHEEL NUT

- wheel mounting, 5/8 inch NF

8шт.

14

A57879

RIM

WHEEL - 15 inch, 6 bolt (9 and 10 furrow bogie wheels)

2шт.

14

534362R1

WHEEL

- 15 inch, 8 bolt (11 and 12 furrow bogie wheels)

2шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

15

131839C1

LINK

ASSEMBLY - upper (Replaces 60997C1)

1шт.

16

131840C1

PIN

- link (Replaces 60932C1)

4шт.

432-2436

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

4шт.

17

131838C3

LINK ASSY.

LINK ASSEMBLY - lower (Replaces 61018C2, Replaces 131838C2)

1шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

19

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

20

224036C1

STEERING KNUCKLE

MOUNTING ASSEMBLY - wheel (9 and 10 furrow bogie wheels)

1шт.

20

224149C1

SUPPORT

MOUNTING ASSEMBLY - wheel (11 and 12 furrow bogie wheels)

1шт.

21

224044C1

PIN

- wheel pivot

1шт.

22

491601R3

PIN

- pivot lock

5шт.

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

3шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

23

224152C1

POST

ASSEMBLY - wheel

1шт.

495-81232

WASHER,2.53" ID x 3.25" OD x 0.07" Thk

- flat, 2-17/32 x 3-1/4 x 3/64 inch

1шт.

432-3248

COTTER PIN,1/2" x 3"

Pin, Split (Cotter), 1/2" x 3"

1шт.

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch (9 and 10 furrow)

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (11 and 12 furrow)

2шт.

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

24

96227C1

SPINDLE

- wheel (Later production) (9 and 10 furrow bogie wheels)

1шт.

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch, hardened

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

87673

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

25

606468R21

HUB

ASSEMBLY - 6 bolt, Inc. 26, 27 (Later production) (9 and 10 furrow bogie wheels)

1шт.

26

663558R1

BEARING CUP

CUP - bearing, inner

1шт.

27

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

28

594702R91

SEAL

- hub oil (Later production)

1шт.

29

594703R1

SLEEVE

RING - oil seal (Later production)

1шт.

30

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch, (9 and 10 furrow bogie wheels)

12шт.

280963

NUT,Nut, 1/2-20 GR 5 ZND

12шт.
