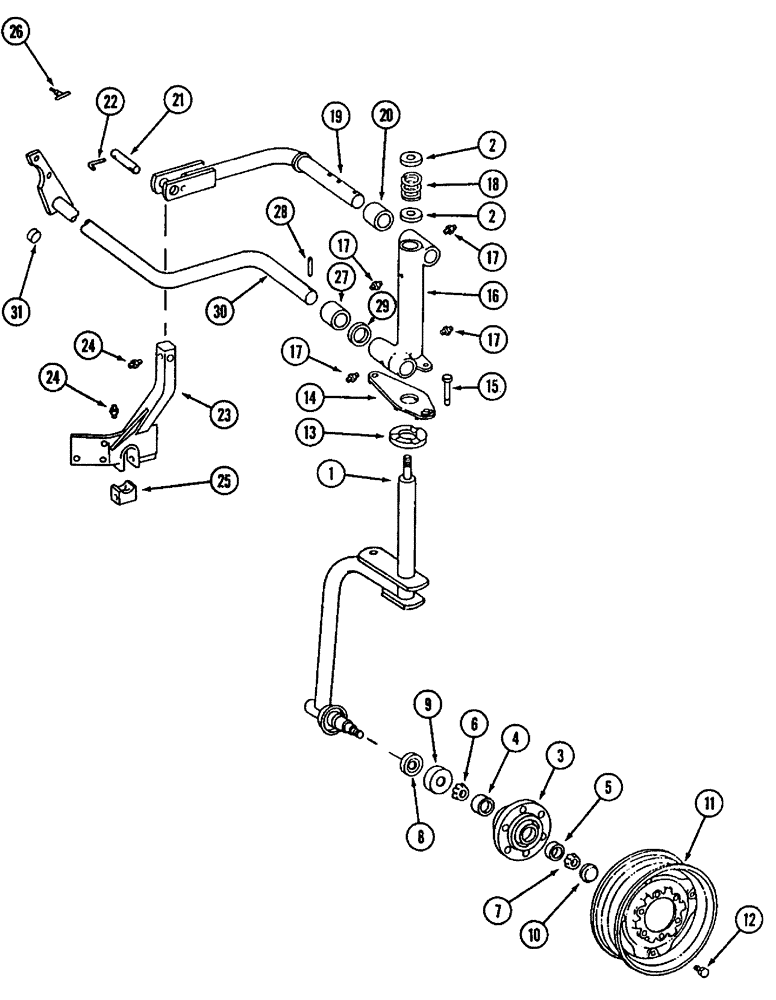

Запчасти Case IH 800 (9-05) - FRONT FURROW WHEEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
61024C1
AXLE
ASSEMBLY - caster wheel (Early production)
1шт.
1
1337963C1
CENTER AXLE
AXLE ASSEMBLY - caster wheel, Inc. Collar, (Later production)
1шт.
490909R1
COLLAR
- sand
1шт.
495-81062
WASHER,0.91" ID x 2" OD x 0.12" Thk
- flat, 29/32 x 2 x 7/64 inch
1шт.
425-1414
JAM NUT,Jam, 7/8"-9, G5
1шт.
469873R1
WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk
- flat, 29/32 x 1-3/4 x 7/64 inch, hardened
1шт.
87673
COTTER PIN,1/8" x 1 3/4"
PIN, SPLIT (COTTER), 1/8" x 1 3/4"
1шт.
70120D
SLOTTED NUT,7/8"-14
NUT - hex, slotted 7/8 inch NC
1шт.
432-820
COTTER PIN,1/8" x 1 1/4"
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
1шт.
2
491554R1
WASHER
- retaining
2шт.
3
465496R1
HUB
- wheel, 6 bolt (Early production), Also Order REF 4 and 5
1шт.
3
606468R21
HUB
ASSEMBLY - wheel, 6 bolt, Inc. REF 4 and 5 (Later production)
1шт.
4
663558R1
BEARING CUP
CUP - bearing, hub, inner
1шт.
6
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
CONE - bearing, hub, inner
1шт.
8
654674R91
OIL SEAL
- hub oil (Early production)
1шт.
9
654675R1
RING
- oil seal wear (Early production)
1шт.
8
594702R91
SEAL
- hub oil (Later production)
1шт.
9
594703R1
SLEEVE
RING - oil seal wear (Later production)
1шт.
10
224066C1
HUB CAP
CAP - wheel hub
1шт.
11
481344R91
WHEEL
- 14 inch (For 9 through 12 furrow plows)
1шт.
810768C1
VALVE
- tubeless tire steel
1шт.
11
A57879
RIM
WHEEL - 15 inch (For 14 and 16 furrow plows)
1шт.
810769C1
VALVE
- tubeless tire, steel
1шт.
12
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
- hex conical, 1/2 NF x 1-5/32 inch
6шт.
13
491555R1
CAM
- caster wheel bottom
1шт.
14
491556R1
CAM
- caster wheel top
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
1шт.
231-14110
LOCK NUT,5/8"-11, GB
NUT - hex lock, 5/8 inch NC
1шт.
15
112888C1
PIN
- lockout
1шт.
495-81039
WASHER,25/32" x 1 1/4" x .120"
- flat, 25/32 x 1-1/4 x 7/64 inch (9 through 12 furrow plows)
1шт.
495-21069
WASHER,5/8"
- flat, 11/16 x 1-3/4 x 9/64 inch (14 and 16 furrow plows)
1шт.
1978738C1
HAIR PIN COTTER
1шт.
16
133309A1
KIT
- front caster wheel housing, Inc. 2
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
- hex, 5/8 NC x 2 inch
1шт.
231-14110
LOCK NUT,5/8"-11, GB
NUT - hex lock, 5/8 inch NC
1шт.
17
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
4шт.
18
U13661
VALVE SPRING
SPRING - axle compression
1шт.
19
485647R3
ARM
ASSEMBLY - front furrow wheel
1шт.
495-81098
WASHER,2 1/32" x 2 3/4" x .120"
- flat, 2-1/32 x 2-3/4 x 3/32 inch
1шт.
432-2444
COTTER PIN,3/8" x 2 3/4"
Pin, Split (Cotter), 3/8" x 2 3/4"
1шт.
20
488439R1
SPACER
- front arm assembly
1шт.
20
493745R1
SPACER
- front arm assembly
1шт.
21
485644R1
PIN
- front furrow wheel arm
1шт.
432-2436
COTTER PIN,3/8" x 2 1/4"
Pin, Split (Cotter), 3/8" x 2 1/4"
1шт.
22
813175C2
LOCK PIN,9.5mm OD
PIN - front furrow wheel arm lock
1шт.
432-2432
COTTER PIN,3/8" x 2"
Pin, Split (Cotter), 3/8" x 2"
1шт.
23
543252R3
SUPPORT
ASSEMBLY - axle
1шт.
495-21069
WASHER,5/8"
- flat, 11/16 x 1-3/4 x 9/64 inch
1шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- hex, 5/8 NC x 2-3/4 inch
2шт.
425-1010
NUT,5/8"-11, G5
2шт.
24
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
25
482872R1
CAP
BEARING - outer block
1шт.
413-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- hex, 5/8 NC x 4 inch
1шт.
425-1010
NUT,5/8"-11, G5
1шт.
26
543261R1
SCREW
ASSEMBLY - cylinder thumb
1шт.
27
488438R1
SPACER
- front lift axle
1шт.
27
547216R1
SPACER
- axle
1шт.
28
482877R1
PIN
- front axle
2шт.
432-816
COTTER PIN,1/8" x 1"
1/8" x 1"
4шт.
29
482876R1
WASHER
- front lift
4шт.
432-2448
COTTER PIN,3/8" x 3"
Pin, Split (Cotter), 3/8" x 3"
1шт.
30
60986C2
AXLE
ASSEMBLY - front furrow, Inc. 31, (9 through 12 furrow)
1шт.
30
122508C1
AXLE
ASSEMBLY - front furrow, Inc. 31, (14 and 16 furrow)
1шт.
31
64601C1
BUSHING
- tension
1шт.
Выбрано товаров: 68
