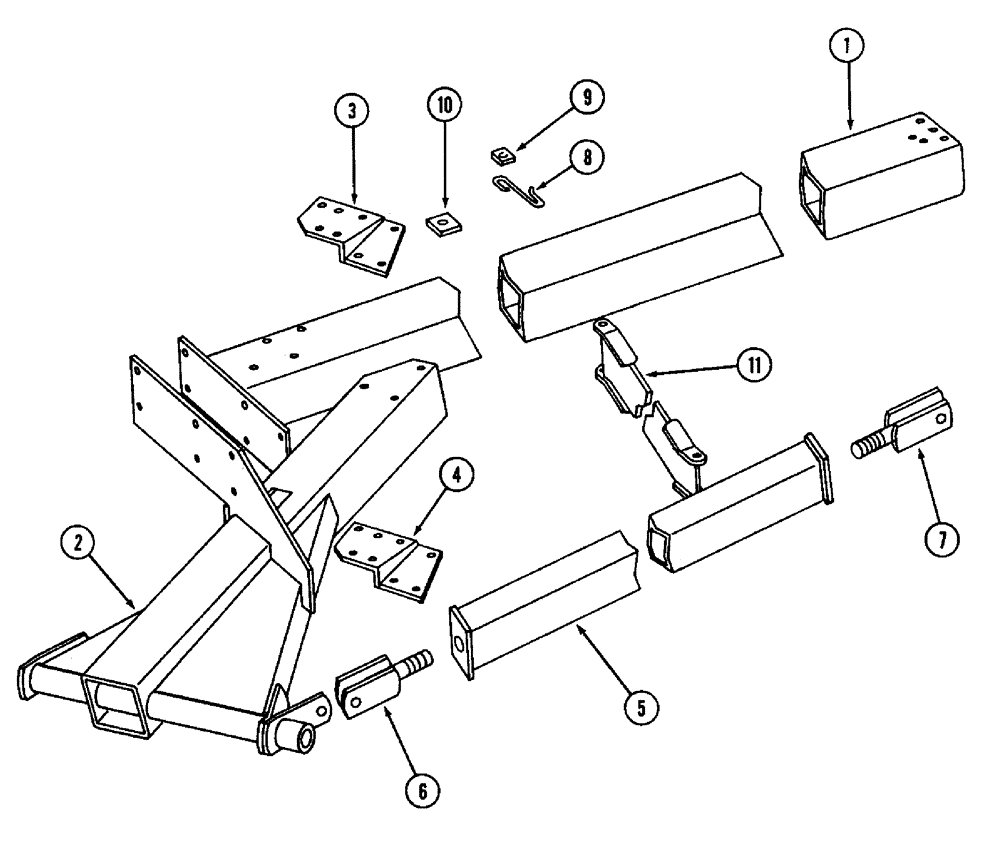

Запчасти Case IH 800 (9-04) - REAR FRAME, FOR 14 AND 16 FURROW (09) - CHASSIS/ATTACHMENTS

1

61013C1

FRAME ASSY

FRAME ASSEMBLY - (Rear 6 furrows on 14 furrow plows)

1шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

13шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

16шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

26шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

56шт.

1

55044C1

FRAME

ASSEMBLY - (Rear 8 furrows on 16 furrow plows)

1шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

15шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

18шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

30шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

64шт.

2

101068C1

FRAME

ASSEMBLY - rear pull

1шт.

3

61016C2

PLATE

ASSEMBLY - connector top

1шт.

4

61022C2

PLATE

ASSEMBLY - connector bottom

1шт.

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

7шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

13шт.

5

131784C1

TURNBUCKLE

ASSEMBLY - tie tube

1шт.

5

101074C1

TUBE

TURNBUCKLE ASSEMBLY - tie tube

1шт.

6

61005C3

YOKE

ASSEMBLY - left

1шт.

7

61006C3

YOKE

ASSEMBLY - right

1шт.

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

230-46318

LOCK NUT,1 1/8"-12, GA

PIN - headed, 1 x 2-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

8

61004C1

SUPPORT

- hose (14 furrow)

5шт.

8

61004C1

SUPPORT

- hose (16 furrow)

6шт.

9

549953R1

LUG

- hose support (14 furrow)

5шт.

9

549953R1

LUG

- hose support (16 furrow)

6шт.

10

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (14 furrow)

26шт.

10

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (16 furrow)

30шт.

11

101083C1

SUPPORT TUBE

SUPPORT ASSEMBLY - tie tube (16 furrow plow only)

1шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

1шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

2шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.
