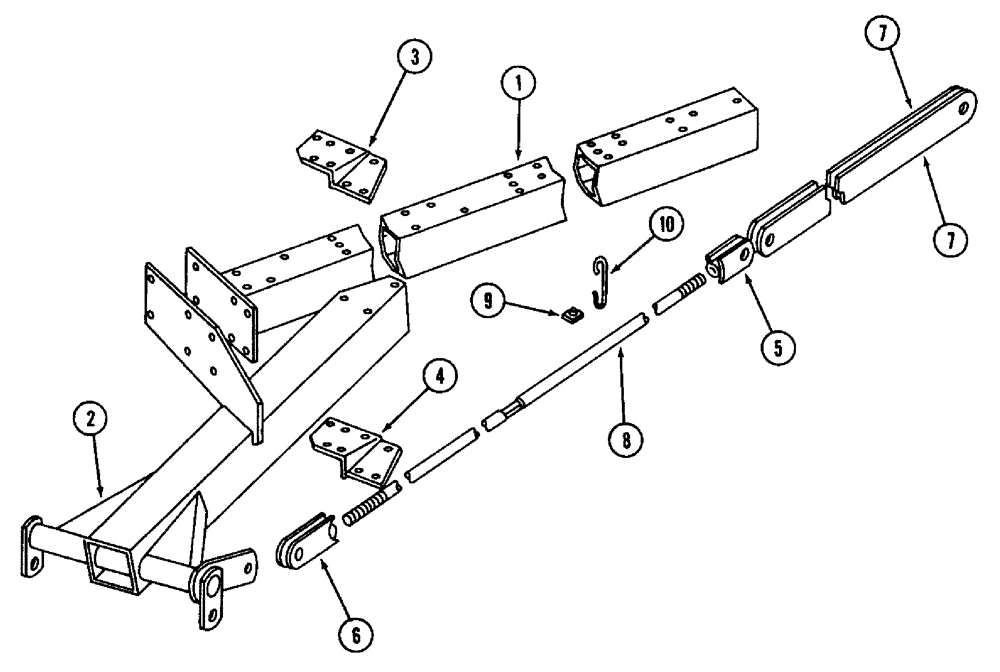

Запчасти Case IH 800 (9-03) - REAR FRAME WITH HITCH, FOR 9, 10, 11 AND 12 FURROW (09) - CHASSIS/ATTACHMENTS

1

61011C1

FRAME

ASSEMBLY - (Rear 4 furrows on 9 furrow plows)

1шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

11шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

18шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

6шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

36шт.

1

61012C1

FRAME

ASSEMBLY - (Rear 5 furrows on 10 and 11 furrow plows)

1шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch (10 furrow)

12шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch (10 furrow)

20шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch (10 furrow)

7шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC (10 furrow)

40шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch (11 furrow)

13шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch (11 furrow)

22шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch (11 furrow)

8шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC (11 furrow)

44шт.

1

61013C1

FRAME ASSY

FRAME ASSEMBLY - (Rear 6 furrows on 12 furrow plows)

1шт.

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

413-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

- hex, 5/8 NC x 7 inch

14шт.

413-10132

BOLT,Hex, 5/8" - 11 x 8-1/4", Gr 5

- hex, 5/8 NC x 8-1/4 inch

25шт.

413-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch

8шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

48шт.

2

61028C3

FRAME

ASSEMBLY - rear pull

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

6шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

3

61016C2

PLATE

ASSEMBLY - connector, top

1шт.

4

61022C2

PLATE

ASSEMBLY - connector, bottom

1шт.

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

7шт.

231-42112

NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

7шт.

5

541165R1

TURNBUCKLE

CLEVIS ASSEMBLY - left hand (Plows built, Serial Range: prior-1978)

1шт.

5

131871C1

CLEVIS

ASSEMBLY - left hand (Plows built 1979 and after)

1шт.

6

541166R1

TURNBUCKLE

CLEVIS ASSEMBLY - right hand (Plows built, Serial Range: prior-1978)

1шт.

6

131875C1

CLEVIS

ASSEMBLY - right hand (Plows built 1979 and after)

1шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

PIN - headed, 3/4 x 2-1/2 inch

4шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

2шт.

7

543246R1

BAR

- tie rod extension, 18 inch

2шт.

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

PIN - headed, 3/4 x 2-1/4 inch

1шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

8

131870C1

ROD

- tie (Rear 4 furrows on 9 furrow plows)

1шт.

8

131869C1

ROD

- tie (9, 11 and 12 furrow plows)

1шт.

8

131869C1

ROD

- tie (10 furrow plows)

2шт.

9

549953R1

LUG

- hose support (9, 10 and 11 furrow plows)

3шт.

9

549953R1

LUG

- hose support (12 furrow plows)

4шт.

10

61004C1

SUPPORT

- hose (9, 10 and 11 furrow plows)

3шт.

10

61004C1

SUPPORT

- hose (12 furrow plows)

4шт.

11

1969055C1

STRAP

- hose clamp (Not Shown)

5шт.

12

515030R1

CLAMP

- hose (Not Shown)

5шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.
