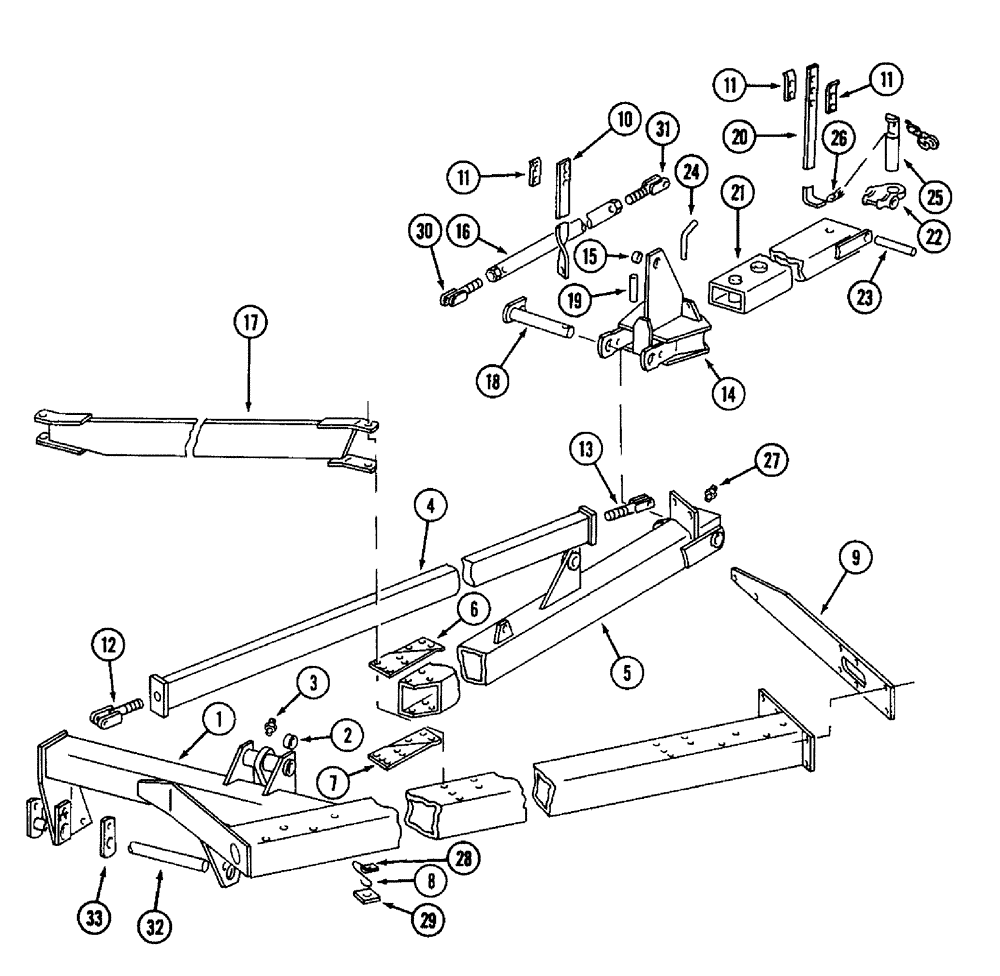

Запчасти Case IH 800 (9-02) - FRONT FRAME WITH HITCH, FOR 14 AND 16 FURROW (09) - CHASSIS/ATTACHMENTS

1

112601C91

FRAME

- main front, Inc. Decal and REF 2

1шт.

122878C1

DECAL

- caution

1шт.

2

112886C1

BUSHING

- tension

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

3шт.

4

131784C1

TURNBUCKLE

ASSEMBLY - tie tube

1шт.

4

101074C1

TUBE

TURNBUCKLE ASSEMBLY - tie tube

1шт.

5

122658C1

FRAME

ASSEMBLY - front pull

1шт.

6

547203R1

CONNECTOR, ELEC

CONNECTOR - plate, top front

1шт.

7

547204R1

CONNECTOR, ELEC

CONNECTOR - plate, bottom front

1шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

5шт.

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

2шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

7шт.

8

61004C1

SUPPORT

- hose

2шт.

9

122664C1

BAR

- spreader

1шт.

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, Grade 8

2шт.

86518194

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

2шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

5шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

6шт.

10

100619C1

SUPPORT

- hose

1шт.

11

58644C1

HOLDER

- hydraulic hose

3шт.

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, Grade 2

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

12

61005C3

YOKE

ASSEMBLY - left

2шт.

13

61006C3

YOKE

ASSEMBLY - right

2шт.

230-46318

LOCK NUT,1 1/8"-12, GA

PIN - headed, 1 x 2-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

2шт.

14

112852C91

PIVOT

ASSEMBLY - hitch, Inc. REF 15

1шт.

15

64601C1

BUSHING

- tension

1шт.

16

122670C1

LINK

ASSEMBLY - hitch

1шт.

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

17

122873C1

SUPPORT

ASSEMBLY - tie tube front

1шт.

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

2шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.

18

112872C1

ROD

ASSEMBLY - hitch pivot

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

1шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

19

112862C1

PIN

- hitch pivot

1шт.

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- plain, 1-9/32 x 2-1/2 x 3/32 inch

2шт.

20

283538A1

SUPPORT

- hydraulic hose

1шт.

21

112887C91

TUBE

- hitch, Inc. Decal

1шт.

60818C2

PRODUCT GRAPHIC

DECAL - caution

1шт.

22

131662C1

CLEVIS

- hitch

1шт.

23

122883C1

PIN

- clevis hitch

1шт.

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- plain, 1-9/32 x 2-1/2 x 3/32 inch

2шт.

24

112861C1

ROD

PIN - hitch pivot

1шт.

38-32032

PIN,7.92mm OD x 50.8mm L

1шт.

1978739C1

PIN

- cotter, hair

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

25

60150C2

PIN

ASSEMBLY - hitch (Order 1980645C1)

1шт.

26

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety (Order 1980645C1)

1шт.

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - lynch

1шт.

27

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 inch

1шт.

28

549953R1

LUG

- hose support

2шт.

13-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

Hex, 5/8"-11 x 7-3/4", G5

1шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

29

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (14 furrow)

26шт.

29

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (16 furrow)

30шт.

30

61005C3

YOKE

ASSEMBLY - left

1шт.

31

61006C3

YOKE

ASSEMBLY - right

1шт.

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

230-46318

LOCK NUT,1 1/8"-12, GA

PIN - headed, 1 x 2-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

32

101089C1

ROD

ASSEMBLY - pivot

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

33

101088C1

STRAP

- hitch adjustable

3шт.

432-2436

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

1шт.
