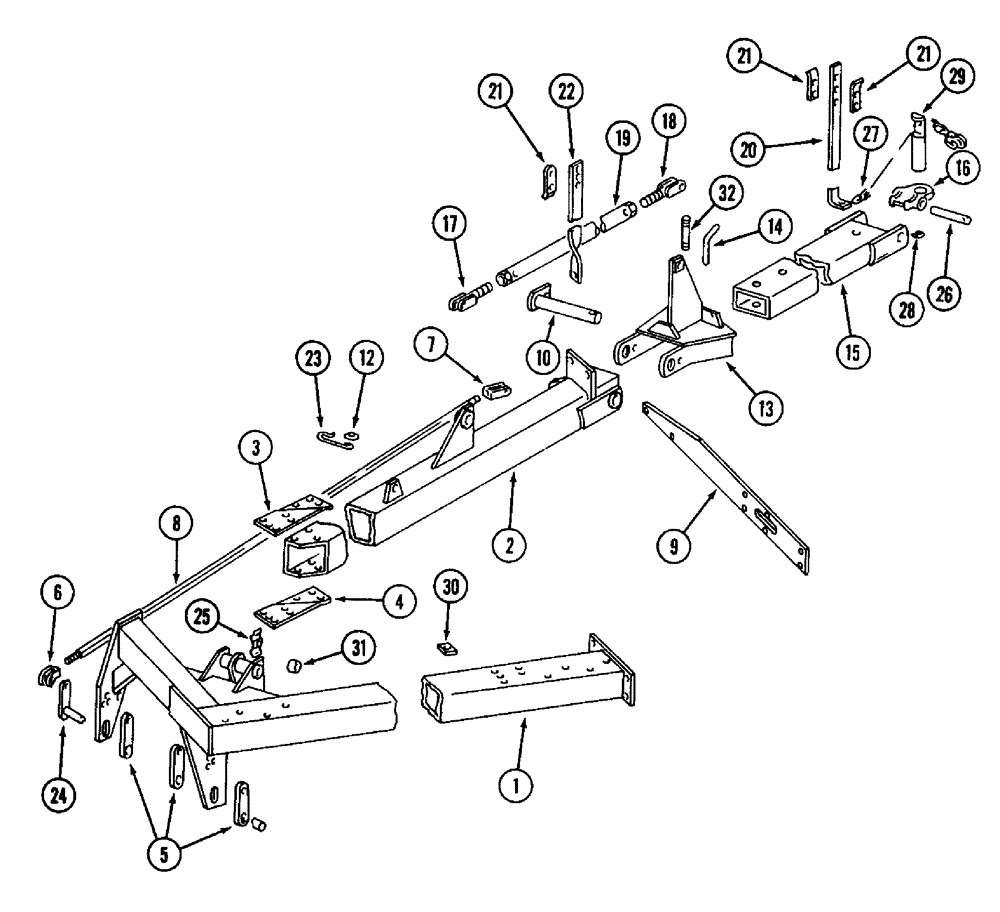

Запчасти Case IH 800 (9-01) - FRONT FRAME WITH HITCH, FOR 9, 10, 11 AND 12 FURROW (09) - CHASSIS/ATTACHMENTS

1

61059C1

FRAME

ASSEMBLY - main, Inc. Decal, (Front 6 furrows on 11 and 12 furrow plows)

1шт.

122878C1

DECAL

- caution

1шт.

1

61060C1

FRAME

ASSEMBLY - main, Inc. Decal, (Front 5 furrows on 9 and 10 furrow plows)

1шт.

122878C1

DECAL

- caution

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

2

122837C2

FRAME

ASSEMBLY - front pull (Plows built April 1976 and after)

1шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 45 degree, 1/4-28 inch

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

515030R1

CLAMP

- hose

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- carriage, 3/8 x 1

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

3

547203R1

CONNECTOR, ELEC

CONNECTOR - plate top front plow

1шт.

4

547204R1

CONNECTOR, ELEC

CONNECTOR - plate bottom front plow

1шт.

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

6шт.

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch

1шт.

231-42112

NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

7шт.

5

60941C1

STRAP

- hitch adjustable

3шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

6

131876C1

CLEVIS

ASSEMBLY - left hand front plow (Plows built 1979 and after)

1шт.

87402

COTTER PIN,1/4" OD x 1-1/4" OAL

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

439-51240

HEADED PIN,19.05mm OD x 63.5mm L

PIN - headed, 3/4 x 2-1/2 inch

4шт.

7

541166R1

TURNBUCKLE

CLEVIS ASSEMBLY - right hand front plow (Plows built, Serial Range: prior-1978)

1шт.

7

131875C1

CLEVIS

ASSEMBLY - right hand front plow (Plows built 1979 and after)

1шт.

8

131868C1

ROD

- tie (6 furrow front, 11 and 12 furrow plows)

1шт.

8

131869C1

ROD

- tie (5 furrow front)

1шт.

425-1018

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

2шт.

9

60991C1

BAR

- spreader

1шт.

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, Grade 8

2шт.

492-21075

LOCK WASHER,3/4"

3/4"

2шт.

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, Grade 8

2шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

5шт.

231-42112

NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

6шт.

10

61001C1

PIN

ASSEMBLY - hitch pivot (Plows built prior to April 1976)

1шт.

10

122858C1

PIN

ASSEMBLY - hitch pivot (Plows built April 1976 and after)

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

231-1448

NUT,1/2"-13, GB

- hex lock, 1/2 inch NC

1шт.

432-2444

COTTER PIN,3/8" x 2 3/4"

Pin, Split (Cotter), 3/8" x 2 3/4"

1шт.

12

549953R1

LUG

- hose support

1шт.

13

61027C1

PIVOT

ASSEMBLY - hitch (Plows built prior to April 1976)

1шт.

326-2096

BOLT,Hex, 1-1/4" - 7 x 6", Gr 8

- hex, 1-1/4 x 6 inch

1шт.

28748R1

LOCK NUT,1 1/4"-7, G5

NUT - hex lock, 1-1/4 inch NC

1шт.

13

122844C92

PIVOT

ASSEMBLY - hitch, Inc. Bushing, (Plows built April 1976 and after)

1шт.

64601C1

BUSHING

- tension

1шт.

14

60958C2

PIN

- hitch pivot

1шт.

1978739C1

PIN

- hair

1шт.

38-31628

PIN,1/4" x 1 3/4", Coiled

1шт.

15

61118C2

TUBE

ASSEMBLY - hitch

1шт.

60818C2

PRODUCT GRAPHIC

DECAL - caution, plow safety

1шт.

16

61023C3

HITCH

TONGUE - hitch

1шт.

17

61005C3

YOKE

ASSEMBLY - left

1шт.

18

61006C3

YOKE

ASSEMBLY - right

1шт.

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

230-46318

LOCK NUT,1 1/8"-12, GA

PIN - headed, 1 x 2-3/4 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

19

60964C1

LINK

ASSEMBLY - hitch

1шт.

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

1шт.

20

283538A1

SUPPORT

- hydraulic hose

1шт.

424-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 2

- hex, 1/2 NC x 3-1/2 inch, Grade 2

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

230-42112

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

1шт.

21

58644C1

HOLDER

- hydraulic hose

3шт.

22

100619C1

SUPPORT

- hose

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.

23

61004C1

SUPPORT

- hose

2шт.

495-81044

WASHER,0.78" ID x 1.75" OD x 0.12" Thk

- flat, 25/32 x 1-3/4 x 5/32 inch

1шт.

231-42110

LOCK NUT,Hex, 5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

13-10124

BOLT,Hex, 5/8" - 11 x 7-3/4", Gr 5

Hex, 5/8"-11 x 7-3/4", G5

1шт.

24

100852C1

ROD

ASSEMBLY - pivot

1шт.

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

2шт.

432-2436

COTTER PIN,3/8" x 2 1/4"

Pin, Split (Cotter), 3/8" x 2 1/4"

1шт.

25

515030R1

CLAMP

- hose

1шт.

411-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - round head square neck, 3/8 NC x 2 inch, Grade 2

1шт.

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

26

60968C1

PIN

- clevis hitch

1шт.

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

27

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety (Order 1980645C1)

1шт.

28

372907R91

LINCH PIN

PIN - lynch, 7/16 x 2 inch

1шт.

29

60150C2

PIN

ASSEMBLY - hitch (Order 1980645C1)

1шт.

30

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (9 furrow)

16шт.

30

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (10 furrow)

18шт.

30

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (11 furrow)

20шт.

30

547213R2

WASHER,16.66mm ID x 76.2mm OD x 11.11mm Thk

- main frame (12 furrow)

22шт.

31

112886C1

BUSHING

- tension (Plows built April 1976 and after)

1шт.

31

112886C1

BUSHING

- tension (Plows built April 1976 and after)

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

38-32028

PIN,7.92mm OD x 44.45mm L

2шт.
