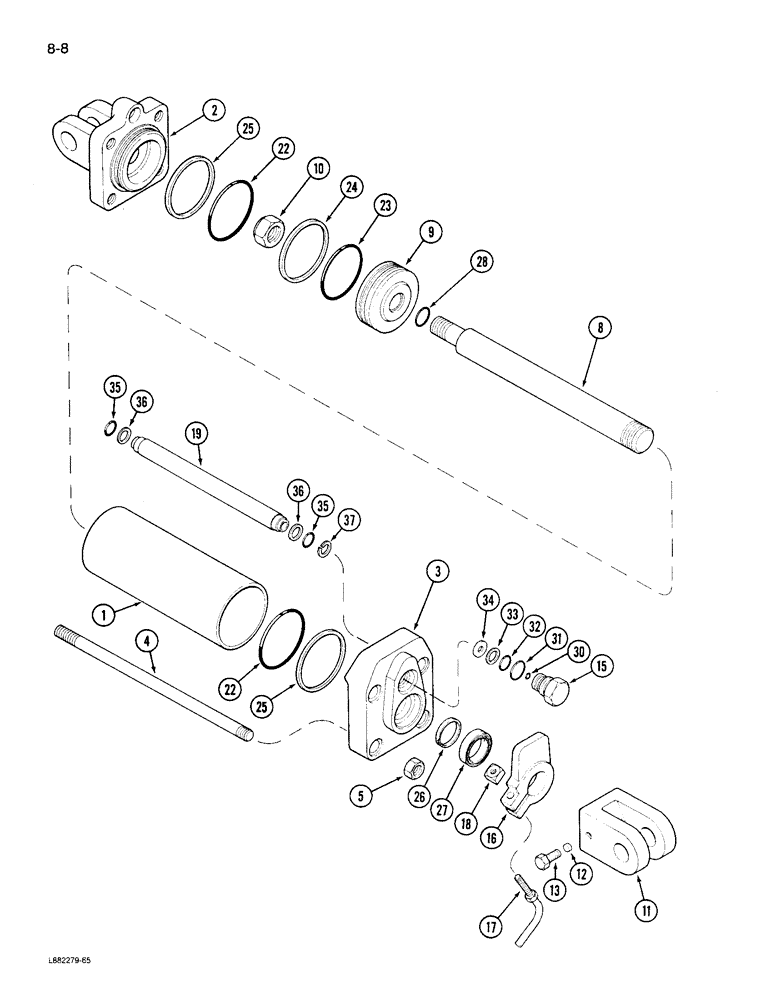

Запчасти Case IH 770 (8-08) - HYDRAULIC CYLINDER, DEPTH CONTROL, 3-1/2 INCH BORE X 8 INCH STROKE WITH LIMIT STOP

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - with limit stop, 3-1/2 bore x 8 inch stroke (J I Case Installed)(order 1263474C91)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

2

145354C1

HEAD

- rear

1шт.

3

1260880C1

END

HEAD - front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

STUD - tie, cylinder

4шт.

5

129-107

NUT,5/8"-11, G5

4шт.

8

145500C1

PISTON ROD

ROD - piston

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

11

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

13

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch

1шт.

15

1260968C91

VALVE

ASSEMBLY - stop, limit (Includes Ref. 30 through 34)

1шт.

16

224579C3

ARM

VALVE - trip, cylinder

1шт.

17

1263435C91

ADJUSTMENT SCREW

- valve, L type

1шт.

18

1266705C1

SQUARE NUT

- square, 5/16 inch NC

1шт.

19

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- transfer

1шт.

84919C2

GASKET KIT

KIT - seal

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 inch ID

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 3 inch ID

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

26

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

27

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

1272597C91

KIT

- seal, valve and transfer tube

1шт.

30

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

- 3/16 ID x 1/16 inch

1шт.

31

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/64 inch

1шт.

32

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 ID x 3/32 inch

1шт.

33

224301C1

BACK-UP RING

RING - backup

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

35

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- 9/16 ID x 3/32 inch

2шт.

36

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING - backup

2шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
